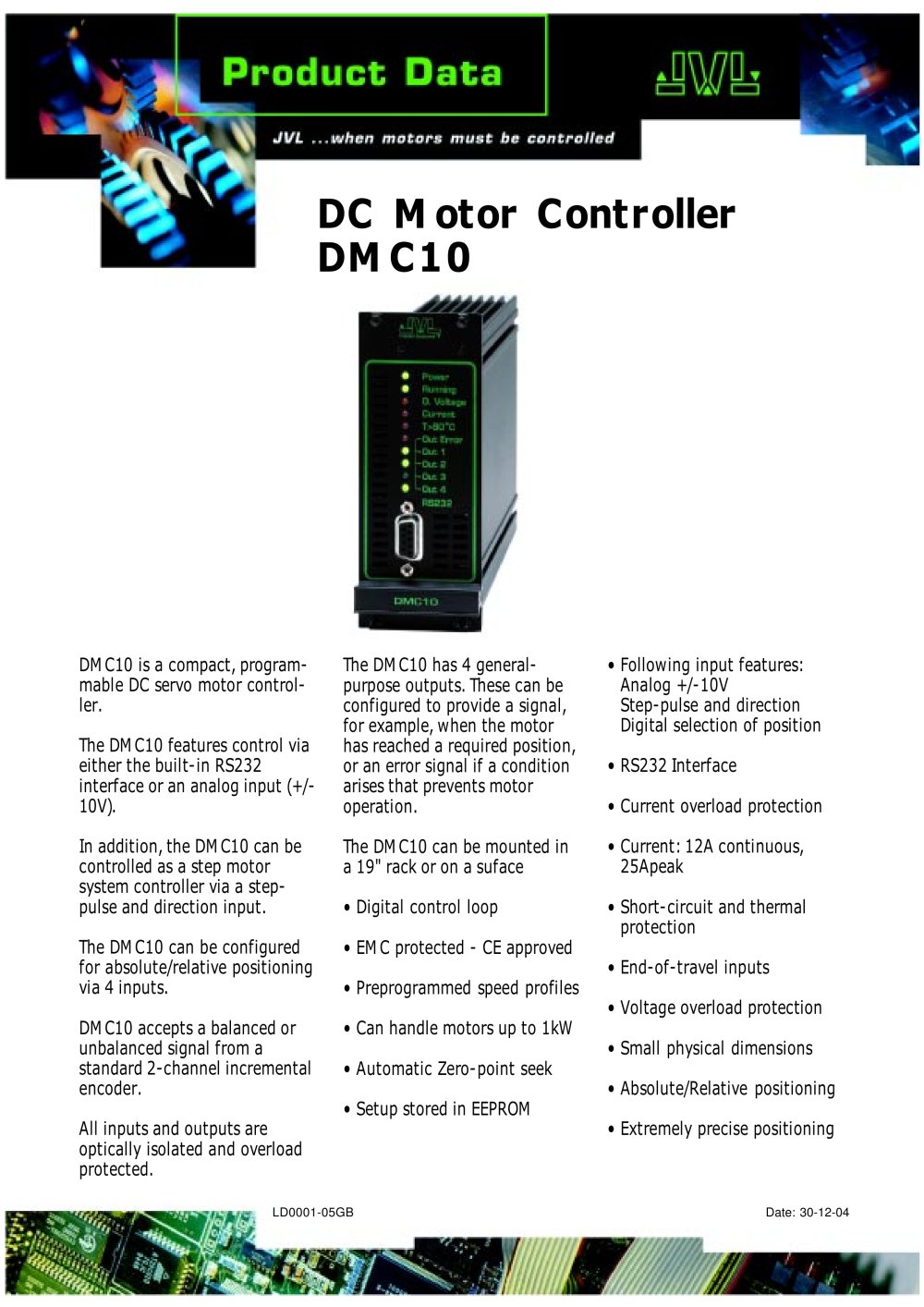

LD0001-05GB Date: 30-12-04 DC Motor Controller DMC10 DMC10 is a compact, programmable DC servo motor controller. The DMC10 features control via either the built-in RS232 interface or an analog input (+/- 10V). In addition, the DMC10 can be controlled as a step motor system controller via a steppulse and direction input. The DMC10 can be configured for absolute/relative positioning via 4 inputs. DMC10 accepts a balanced or unbalanced signal from a standard 2-channel incremental encoder. All inputs and outputs are optically isolated and overload protected. The DMC10 has 4 generalpurpose outputs. These can be configured to provide a signal, for example, when the motor has reached a required position, or an error signal if a condition arises that prevents motor operation. The DMC10 can be mounted in a 19" rack or on a suface • Digital control loop • EMC protected - CE approved • Preprogrammed speed profiles • Can handle motors up to 1kW • Automatic Zero-point seek • Setup stored in EEPROM • Following input features: Analog +/-10V Step-pulse and direction Digital selection of position • RS232 Interface • Current overload protection • Current: 12A continuous, 25Apeak • Short-circuit and thermal protection • End-of-travel inputs • Voltage overload protection • Small physical dimensions • Absolute/Relative positioning • Extremely precise positioning

JVL Industri Elektronik A/S Blokken 42 DK-3460 Birkerød, Denmark Tel: +45 4582 4440 Fax: +45 4582 5550 E-mail: [email protected] www.jvl.dk DC Motor Controller DMC10 Connector Pin Designations Physical Dimensions TT2085GB TT2086GB Technical Data Accessories Description Type Interface Cable (9pin) RS232-9-1 Interface Cable (25pin) RS232-25-9 Mounting Plate for surface Base1 Connector Board for 19" rack CON12 Programming Software MotoWare Description Min. Max. Units Supply Voltage: 15 80 VDC Continuous Motor Current: 0 12 A Peak Motor Current: 0 25 A Max. Power Loss in Driver: 0 25 W Motor Voltage: 0...
