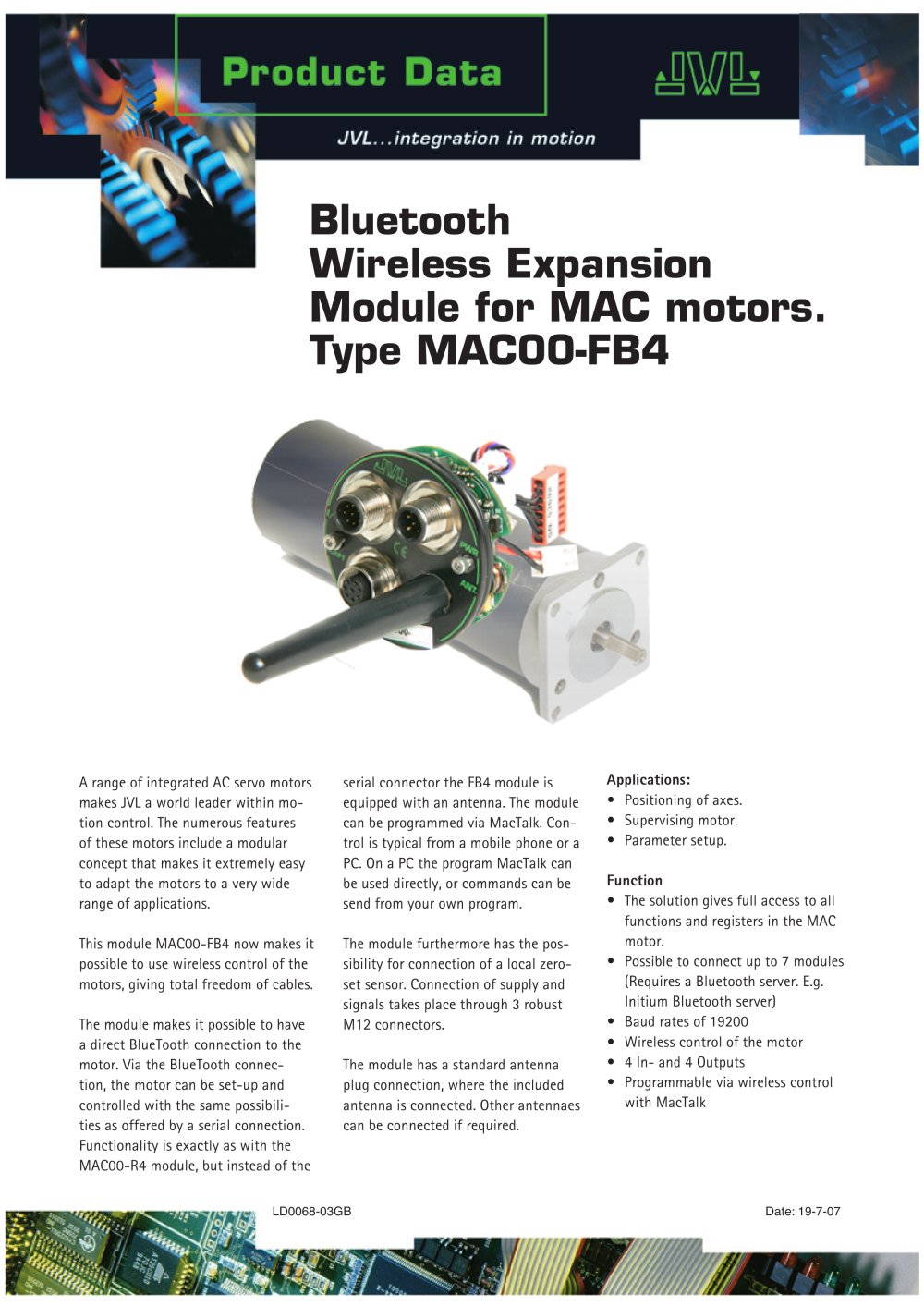

LD0068-03GB Date: 19-7-07 Bluetooth Wireless Expansion Module for MAC motors. Type MAC00-FB4 A range of integrated AC servo motors makes JVL a world leader within motion control. The numerous features of these motors include a modular concept that makes it extremely easy to adapt the motors to a very wide range of applications. This module MAC00-FB4 now makes it possible to use wireless control of the motors, giving total freedom of cables. The module makes it possible to have a direct BlueTooth connection to the motor. Via the BlueTooth connection, the motor can be set-up and controlled with the same possibilities as offered by a serial connection. Functionality is exactly as with the MAC00-R4 module, but instead of the serial connector the FB4 module is equipped with an antenna. The module can be programmed via MacTalk. Control is typical from a mobile phone or a PC. On a PC the program MacTalk can be used directly, or commands can be send from your own program. The module furthermore has the possibility for connection of a local zeroset sensor. Connection of supply and signals takes place through 3 robust M12 connectors. The module has a standard antenna plug connection, where the included antenna is connected. Other antennaes can be connected if required. Applications: Positioning of axes. Supervising motor. Parameter setup. Function The solution gives full access to all functions and registers in the MAC motor. Possible to connect up to 7 modules (Requires a Bluetooth server. E.g. Initium Bluetooth server) Baud rates of 19200 Wireless control of the motor 4 In- and 4 Outputs Programmable via wireless control with MacTalk • • • • • • • • •

JVL Industri Elektronik A/S Blokken 42 DK-3460 Birkerød, Denmark Tel: +45 4582 4440 Fax: +45 4582 5550 E-mail: [email protected] www.jvl.dk Examples of communication possibilities with the Bluetooth Expansion module. Note: Only one of the possibilities can communicate at a time. Communication between an Industry PC and several MAC motors. Pin Connections Accessories MA0006: Antenna stand for relocation with 1m cable. MA0002: 70mm antenna on 3m cable. MA0004: Antenna, rugged stub. 1pcs. delivered with the module USB-Bluetooth 2.0: USB to wireless Bluetooth 2.0 Specifications Bluetooth: Version 2.0 Class1...
