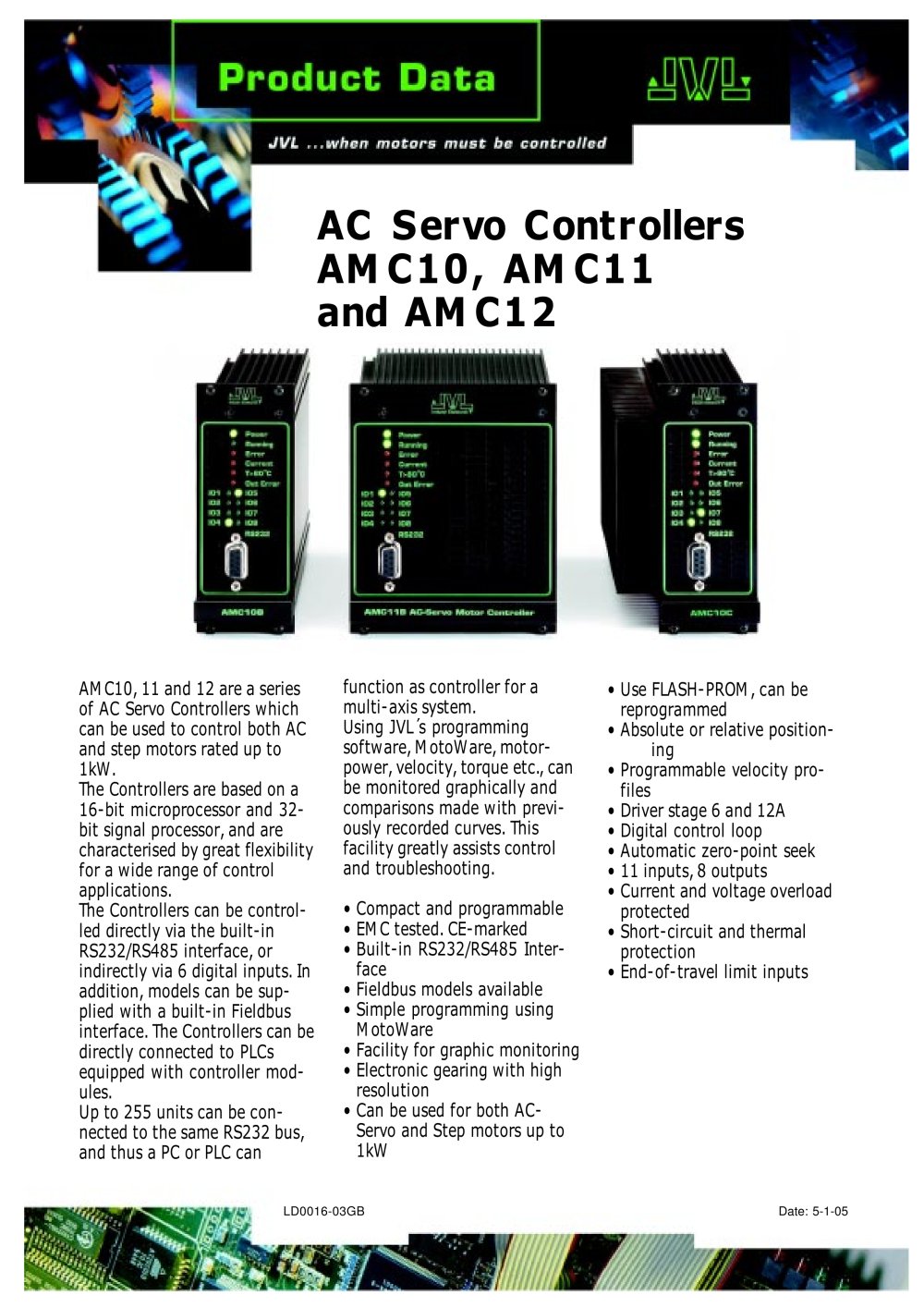

LD0016-03GB Date: 5-1-05 AC Servo Controllers AMC10, AMC11 and AMC12 AMC10, 11 and 12 are a series of AC Servo Controllers which can be used to control both AC and step motors rated up to 1kW. The Controllers are based on a 16-bit microprocessor and 32- bit signal processor, and are characterised by great flexibility for a wide range of control applications. The Controllers can be controlled directly via the built-in RS232/RS485 interface, or indirectly via 6 digital inputs. In addition, models can be supplied with a built-in Fieldbus interface. The Controllers can be directly connected to PLCs equipped with controller modules. Up to 255 units can be connected to the same RS232 bus, and thus a PC or PLC can function as controller for a multi-axis system. Using JVL´s programming software, MotoWare, motorpower, velocity, torque etc., can be monitored graphically and comparisons made with previously recorded curves. This facility greatly assists control and troubleshooting. • Compact and programmable • EMC tested. CE-marked • Built-in RS232/RS485 Interface • Fieldbus models available • Simple programming using MotoWare • Facility for graphic monitoring • Electronic gearing with high resolution • Can be used for both ACServo and Step motors up to 1kW • Use FLASH-PROM, can be reprogrammed • Absolute or relative positioning • Programmable velocity profiles • Driver stage 6 and 12A • Digital control loop • Automatic zero-point seek • 11 inputs, 8 outputs • Current and voltage overload protected • Short-circuit and thermal protection • End-of-travel limit inputs
