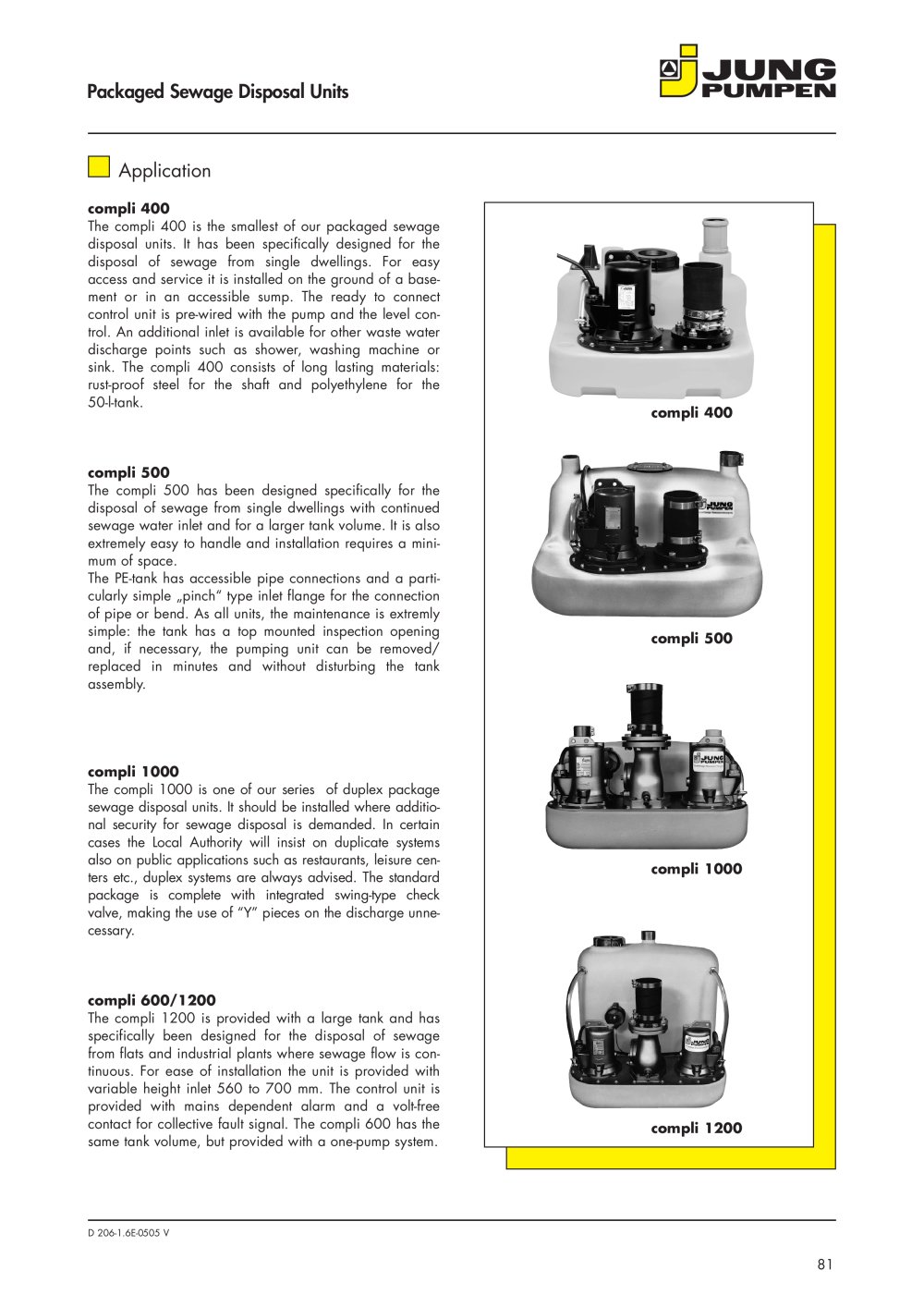

81 Packaged Sewage Disposal Units Application compli 400 The compli 400 is the smallest of our packaged sewage disposal units. It has been specifically designed for the disposal of sewage from single dwellings. For easy access and service it is installed on the ground of a basement or in an accessible sump. The ready to connect control unit is pre-wired with the pump and the level control. An additional inlet is available for other waste water discharge points such as shower, washing machine or sink. The compli 400 consists of long lasting materials: rust-proof steel for the shaft and polyethylene for the 50-l-tank. compli 500 The compli 500 has been designed specifically for the disposal of sewage from single dwellings with continued sewage water inlet and for a larger tank volume. It is also extremely easy to handle and installation requires a minimum of space. The PE-tank has accessible pipe connections and a particularly simple „pinch“ type inlet flange for the connection of pipe or bend. As all units, the maintenance is extremly simple: the tank has a top mounted inspection opening and, if necessary, the pumping unit can be removed/ replaced in minutes and without disturbing the tank assembly. compli 1000 The compli 1000 is one of our series of duplex package sewage disposal units. It should be installed where additional security for sewage disposal is demanded. In certain cases the Local Authority will insist on duplicate systems also on public applications such as restaurants, leisure centers etc., duplex systems are always advised. The standard package is complete with integrated swing-type check valve, making the use of “Y” pieces on the discharge unnecessary. compli 600/1200 The compli 1200 is provided with a large tank and has specifically been designed for the disposal of sewage from flats and industrial plants where sewage flow is continuous. For ease of installation the unit is provided with variable height inlet 560 to 700 mm. The control unit is provided with mains dependent alarm and a volt-free contact for collective fault signal. The compli 600 has the same tank volume, but provided with a one-pump system. compli 400 compli 500 compli 1200 compli 1000 D 206-1.6E-0505 V
