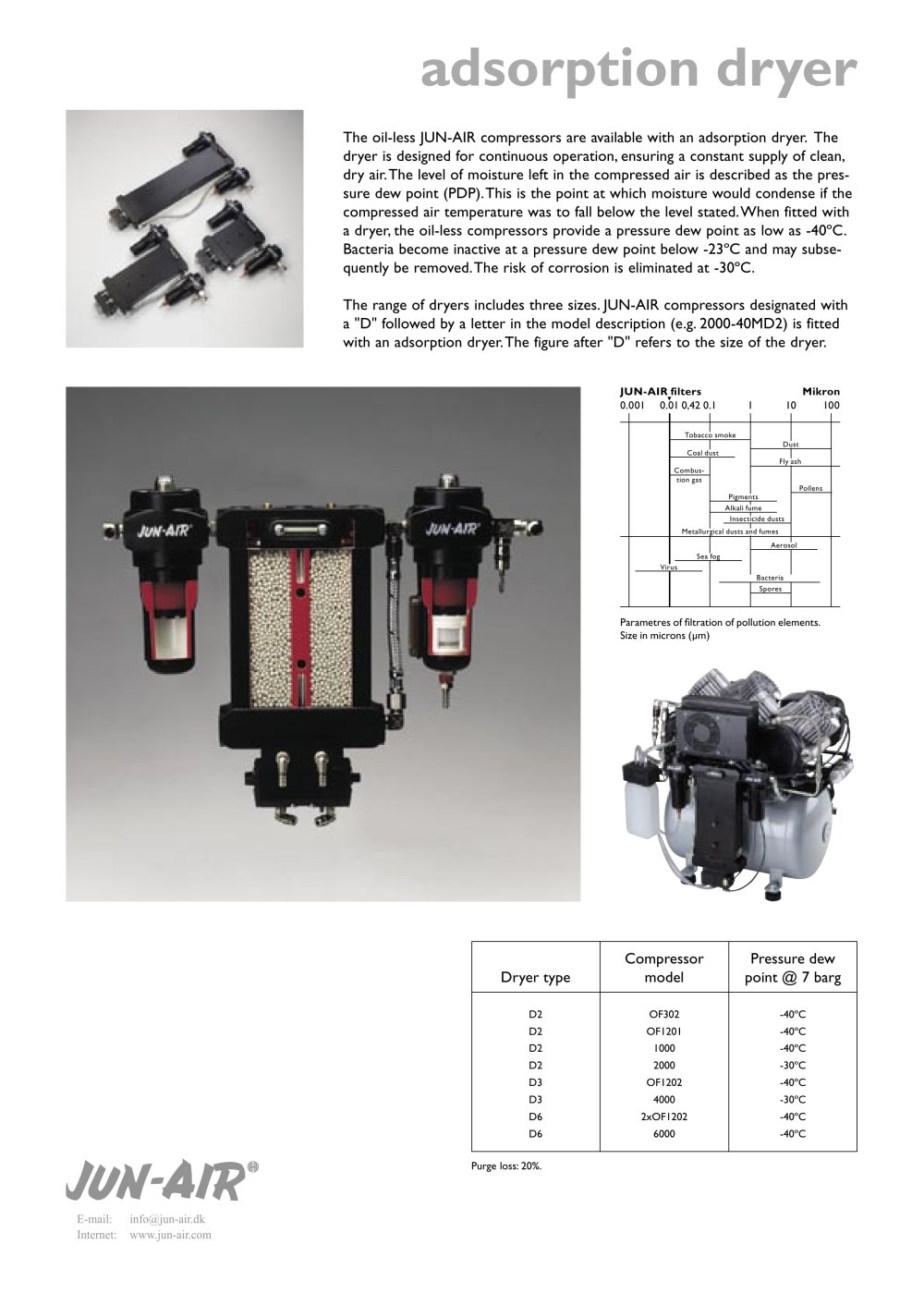

Adsorption dryer - JUN-AIR - #1

The oil-less JUN-AIR compressors are available with an adsorption dryer. The dryer is designed for continuous operation, ensuring a constant supply of clean, dry air. The level of moisture left in the compressed air is described as the pres­sure dew point (PDP). This is the point at which moisture would condense if the compressed air temperature was to fall below the level stated. When fitted with a dryer, the oil-less compressors provide a pressure dew point as low as -40°C. Bacteria become inactive at a pressure dew point below -23°C and may subse­quently be removed. The risk of corrosion is eliminated at -30°C.

The range of dryers includes three sizes. JUN-AIR compressors designated with a "D" followed by a letter in the model description (e.g. 2000-40MD2) is fitted with an adsorption dryer. The figure after "D" refers to the size of the dryer.

0.001 0.01 0,42 0.1 I

10 100

Combus-

tion gas

Pollens

Alkali fume

Aerosol

Bacteria

Spores

Paramètres of filtration of pollution elements. Size in microns (pm)

Purge loss: 20%.
