J
0 Y C E M
A C H I N E S
C R E W J

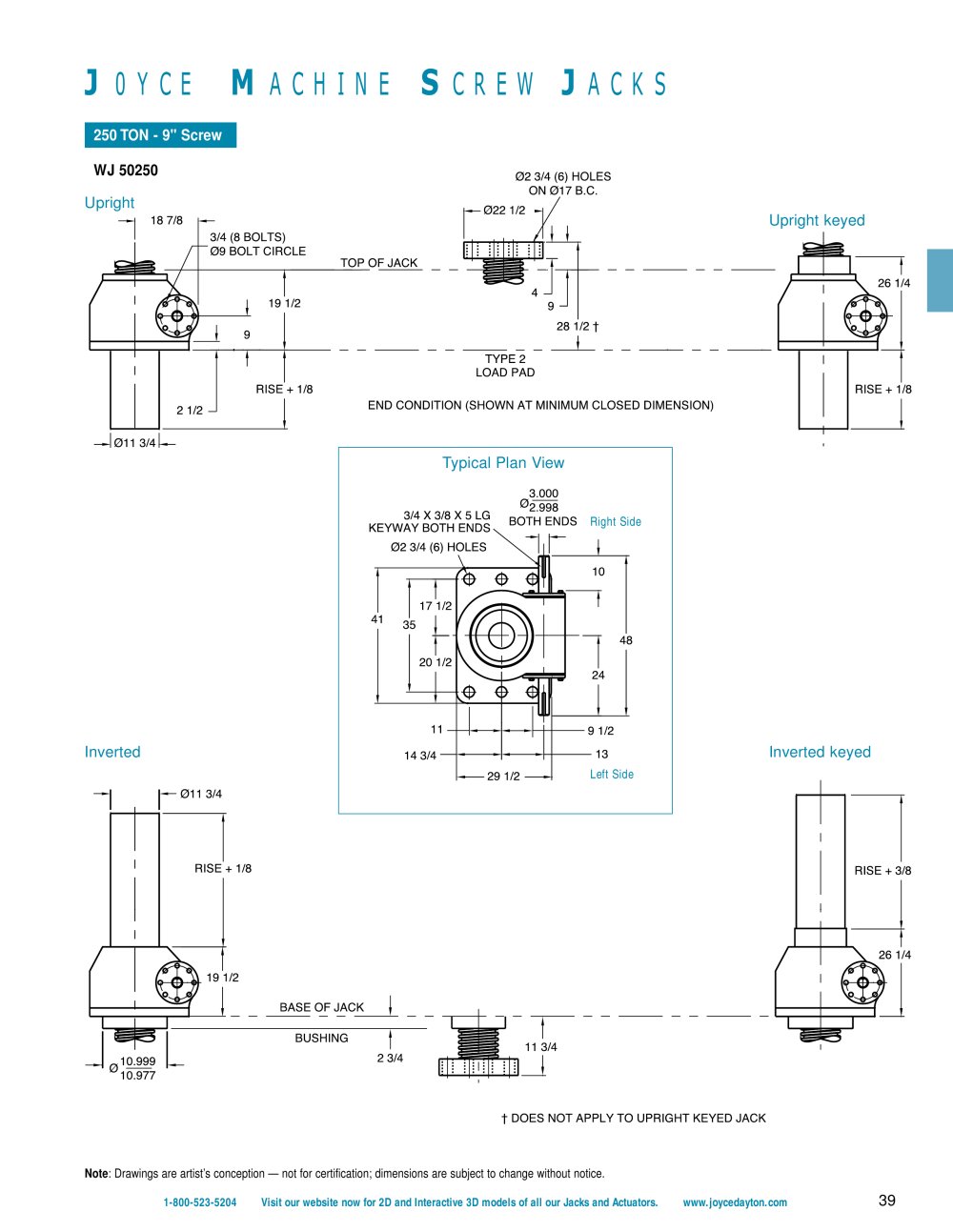

A C K S 250 TON - 9" ScrewWJ 50250 Typical Plan View Right Side Left Side Inverted keyed Inverted UprightUpright keyed Note : Drawings are artist’s conception — not for certification; dimensions are subject to change without notice. 1-800-523-5204 Visit our website now for 2D and Interactive 3D models of all our Jacks and Actuators. www.joycedayton.com 39
