510
8
P
Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de
8. Workplace systems // 8.1. Workshop equipment
JOKE® easy-Work positioner for attachment to table Order No. Price
JOKE® easy-Work positioner with magnet Ø 125 mm 0 200 872
Rotation range 360° manual
Pivot range 0 - 90° manual
Dimensions (W x H x D) 200 x 160 x 250 mm
Weight approx. 11 kg
Clamping system magnet Ø 125 mm
JOKE® easy-Work positioner with T-slot mounting plate, round 0 200 873
Rotation range 360° manual
Pivot range 0 - 90° manual
Dimensions (W x H x D) 250 x 130 x 250 mm
Weight approx. 8 kg
Clamping system T-slot mounting plate, Ø 248 mm

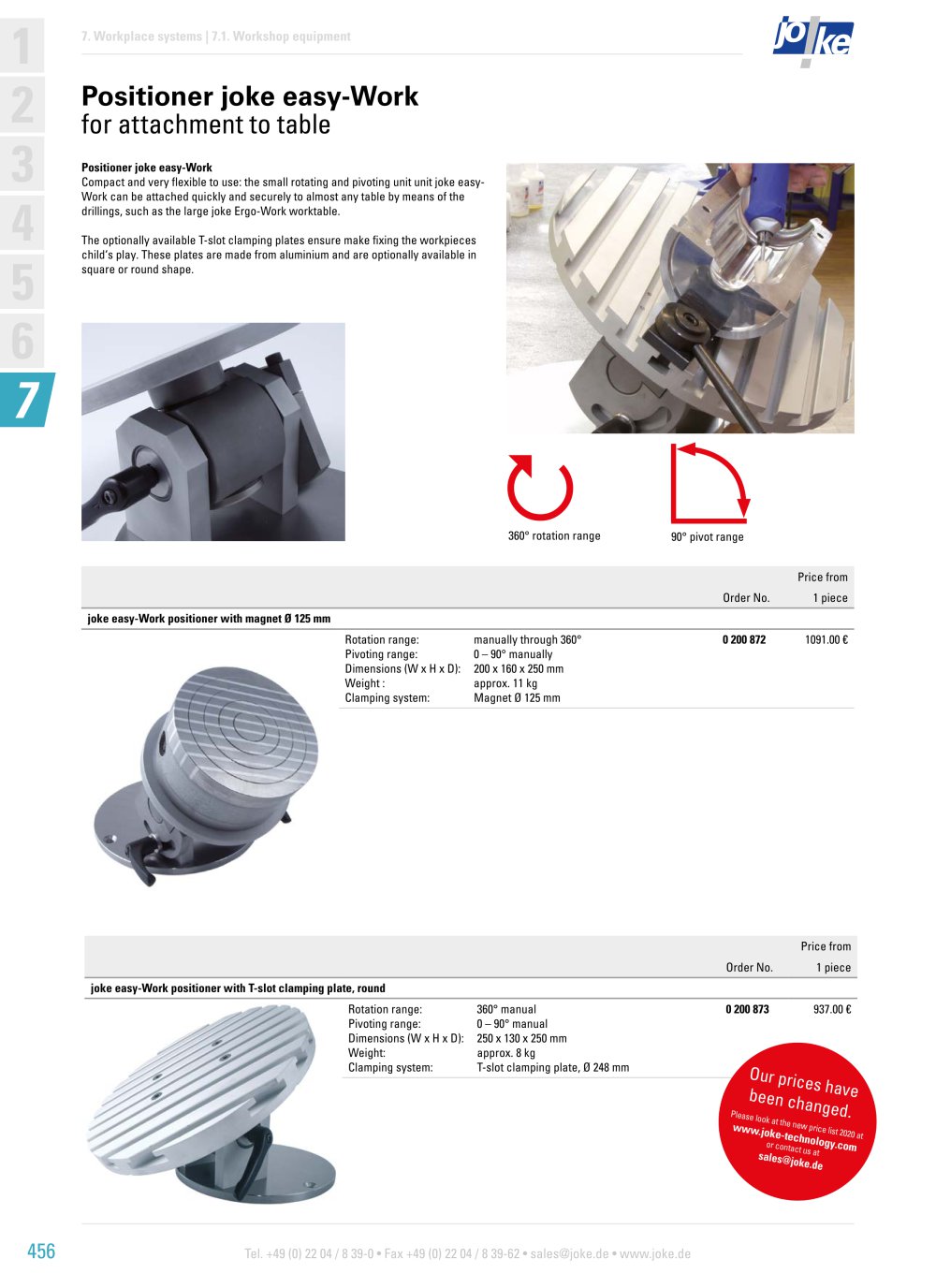

Positioner JOKE® easy-Work
for attachment to table
Positioner JOKE® easy-Work
Compact and very flexible to use: The small
turn and pivot unit JOKE® easy-Work can be
attached quickly and securely to almost any
table, such as the large JOKE® Ergo-Work
worktable (see page 506!).
The optionally available T-slot clamping plates
ensure the easy fixation of workpieces. These
plates are made from aluminium and are available
in square or round shape.
360° rotation range 90° pivot range
