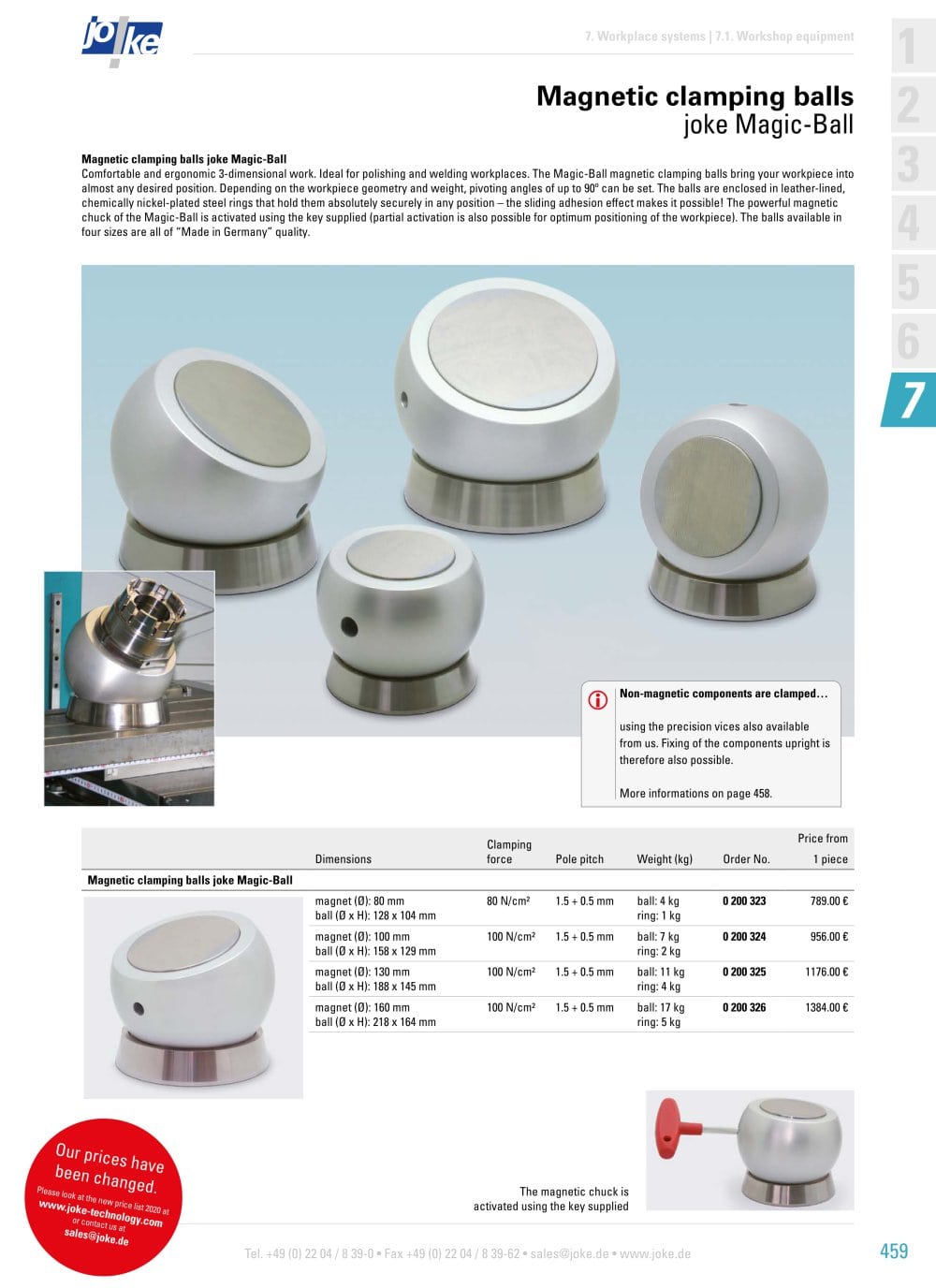

513 8 i Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 8. Workplace systems // 8.1. Workshop equipment Magnetic clamping balls JOKE® Magic-Ball Magnetic clamping balls JOKE® Magic-Ball Comfortable and ergonomic 3-dimensional work. Ideal for polishing and welding workplaces. The Magic-Ball magnetic clamping balls bring your workpiece into almost any desired position. Depending on the workpiece geometry and weight, pivoting angles of up to 90º can be set. The balls are enclosed in leatherlined, chemically nickel-plated steel rings that hold them absolutely securely in any position – the sliding adhesion effect makes it possible! The powerful magnetic chuck of the Magic-Ball is activated using the key supplied (partial activation is also possible for optimum positioning of the workpiece). The balls available in four sizes are all of “Made in Germany” quality. Magnetic clamping balls JOKE® Magic-Ball Magnet dimension Ball dimensions (Ø x H) at 0º Clamping force Pole pitch Weight (ball/ring) Order No. Price Ø 80 mm Ø 128 x 104 mm 80 N/cm² 1.5 + 0.5 mm 1 / 4 kg 0 200 323 Ø 100 mm Ø 158 x 129 mm 100 N/cm² 1.5 + 0.5 mm 2 / 7 kg 0 200 324 Ø 130 mm Ø 188 x 145 mm 100 N/cm² 1.5 + 0.5 mm 4 / 11 kg 0 200 325 Ø 160 mm Ø 218 x 164 mm 100 N/cm² 1.5 + 0.5 mm 5 / 17 kg 0 200 326 The magnetic chuck is activated using the key supplied Non-magnetic components are clamped… using the precision vices also available from us. Fixing of the components on edge is therefore also possible. Consult Stefan Spiegel: Tel. +49 (0) 22 04 / 8 39-0 • s.spiegel@joke.de NEW!
