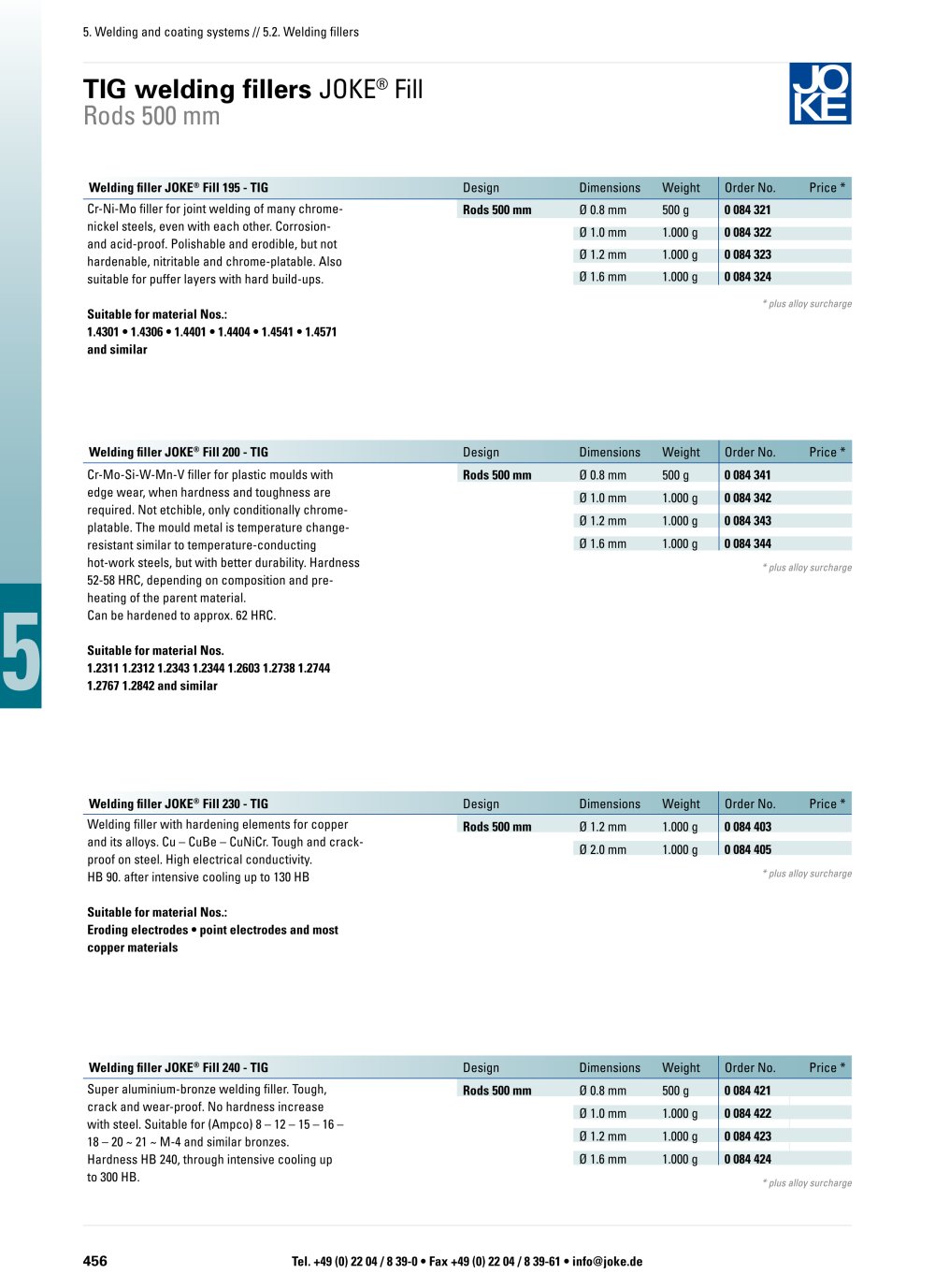

456 5 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.2. Welding fillers Welding filler JOKE® Fill 200 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0 084 341 Ø 1.0 mm 1.000 g 0 084 342 Ø 1.2 mm 1.000 g 0 084 343 Ø 1.6 mm 1.000 g 0 084 344 Cr-Mo-Si-W-Mn-V filler for plastic moulds with edge wear, when hardness and toughness are required. Not etchible, only conditionally chromeplatable. The mould metal is temperature changeresistant similar to temperature-conducting hot-work steels, but with better durability. Hardness 52-58 HRC, depending on composition and preheating of the parent material. Can be hardened to approx. 62 HRC. Suitable for material Nos. 1.2311 1.2312 1.2343 1.2344 1.2603 1.2738 1.2744 1.2767 1.2842 and similar Welding filler JOKE® Fill 230 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 1.2 mm 1.000 g 0 084 403 Ø 2.0 mm 1.000 g 0 084 405 Welding filler with hardening elements for copper and its alloys. Cu – CuBe – CuNiCr. Tough and crackproof on steel. High electrical conductivity. HB 90. after intensive cooling up to 130 HB Suitable for material Nos.: Eroding electrodes • point electrodes and most copper materials Welding filler JOKE® Fill 240 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0 084 421 Ø 1.0 mm 1.000 g 0 084 422 Ø 1.2 mm 1.000 g 0 084 423 Ø 1.6 mm 1.000 g 0 084 424 Super aluminium-bronze welding filler. Tough, crack and wear-proof. No hardness increase with steel. Suitable for (Ampco) 8 – 12 – 15 – 16 – 18 – 20 ~ 21 ~ M-4 and similar bronzes. Hardness HB 240, through intensive cooling up to 300 HB. Welding filler JOKE® Fill 195 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0 084 321 Ø 1.0 mm 1.000 g 0 084 322 Ø 1.2 mm 1.000 g 0 084 323 Ø 1.6 mm 1.000 g 0 084 324 Cr-Ni-Mo filler for joint welding of many chromenickel steels, even with each other. Corrosionand acid-proof. Polishable and erodible, but not hardenable, nitritable and chrome-platable. Also suitable for puffer layers with hard build-ups. Suitable for material Nos.: 1.4301 • 1.4306 • 1.4401 • 1.4404 • 1.4541 • 1.4571 and similar TIG welding fillers JOKE® Fill Rods 500 mm * plus alloy surcharge * plus alloy surcharge * plus alloy surcharge * plus alloy surcharge
