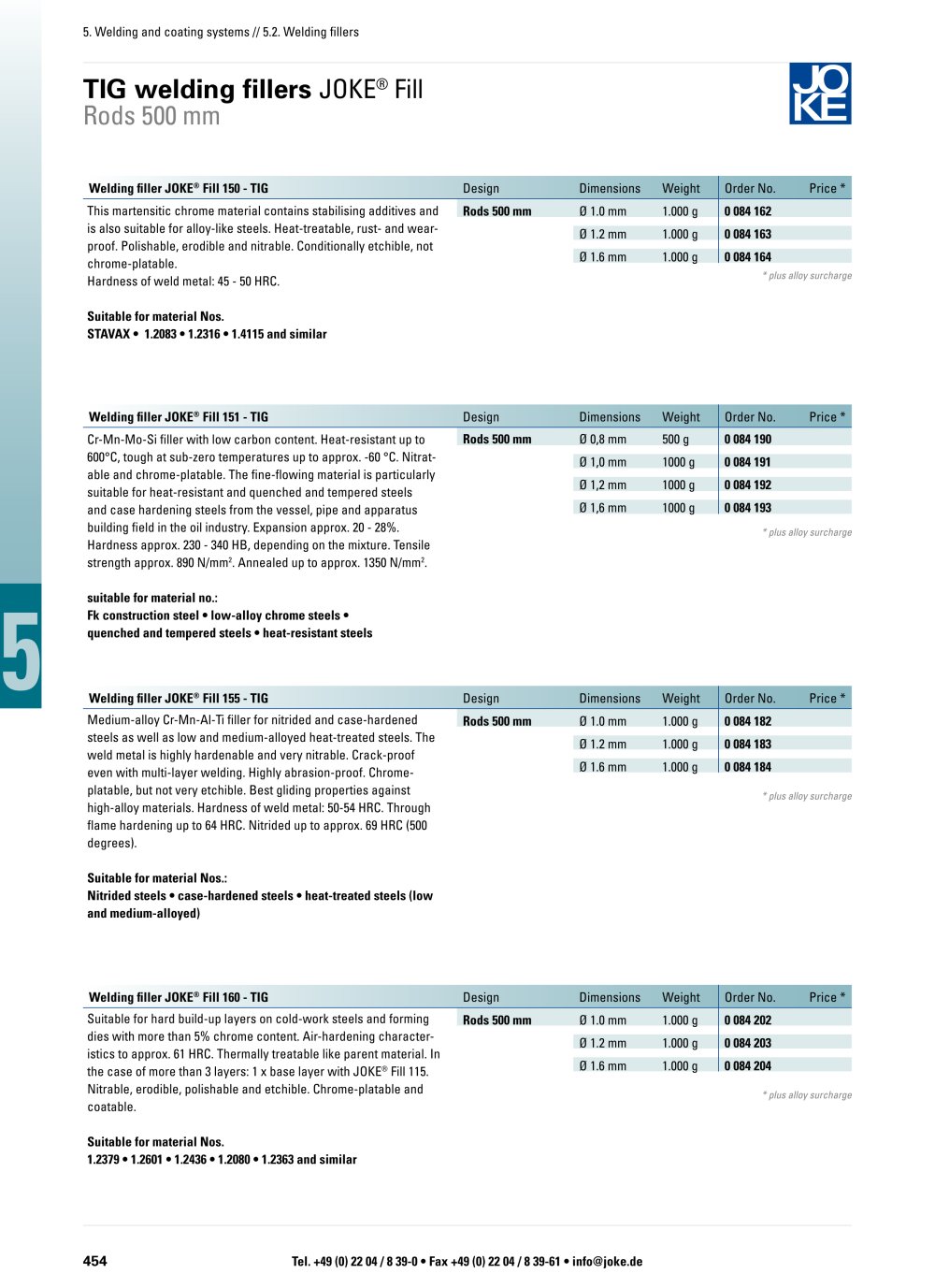

454 5 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.2. Welding fillers Welding filler JOKE® Fill 155 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 1.0 mm 1.000 g 0 084 182 Ø 1.2 mm 1.000 g 0 084 183 Ø 1.6 mm 1.000 g 0 084 184 Welding filler JOKE® Fill 160 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 1.0 mm 1.000 g 0 084 202 Ø 1.2 mm 1.000 g 0 084 203 Ø 1.6 mm 1.000 g 0 084 204 Suitable for hard build-up layers on cold-work steels and forming dies with more than 5% chrome content. Air-hardening characteristics to approx. 61 HRC. Thermally treatable like parent material. In the case of more than 3 layers: 1 x base layer with JOKE® Fill 115. Nitrable, erodible, polishable and etchible. Chrome-platable and coatable. Suitable for material Nos. 1.2379 • 1.2601 • 1.2436 • 1.2080 • 1.2363 and similar Medium-alloy Cr-Mn-Al-Ti filler for nitrided and case-hardened steels as well as low and medium-alloyed heat-treated steels. The weld metal is highly hardenable and very nitrable. Crack-proof even with multi-layer welding. Highly abrasion-proof. Chromeplatable, but not very etchible. Best gliding properties against high-alloy materials. Hardness of weld metal: 50-54 HRC. Through flame hardening up to 64 HRC. Nitrided up to approx. 69 HRC (500 degrees). Suitable for material Nos.: Nitrided steels • case-hardened steels • heat-treated steels (low and medium-alloyed) Welding filler JOKE® Fill 150 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 1.0 mm 1.000 g 0 084 162 Ø 1.2 mm 1.000 g 0 084 163 Ø 1.6 mm 1.000 g 0 084 164 This martensitic chrome material contains stabilising additives and is also suitable for alloy-like steels. Heat-treatable, rust- and wearproof. Polishable, erodible and nitrable. Conditionally etchible, not chrome-platable. Hardness of weld metal: 45 - 50 HRC. Suitable for material Nos. STAVAX • 1.2083 • 1.2316 • 1.4115 and similar TIG welding fillers JOKE® Fill Rods 500 mm * plus alloy surcharge * plus alloy surcharge * plus alloy surcharge * plus alloy surcharge Welding filler JOKE® Fill 151 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0,8 mm 500 g 0 084 190 Ø 1,0 mm 1000 g 0 084 191 Ø 1,2 mm 1000 g 0 084 192 Ø 1,6 mm 1000 g 0 084 193 Cr-Mn-Mo-Si filler with low carbon content. Heat-resistant up to 600°C, tough at sub-zero temperatures up to approx. -60 °C. Nitratable and chrome-platable. The fine-flowing material is particularly suitable for heat-resistant and quenched and tempered steels and case hardening steels from the vessel, pipe and apparatus building field in the oil industry. Expansion approx. 20 - 28%. Hardness approx. 230 - 340 HB, depending on the mixture. Tensile strength approx. 890 N/mm2. Annealed up to approx. 1350 N/mm2. suitable for material no.: Fk construction steel • low-alloy chrome steels • quenched and tempered steels • heat-resistant steels
