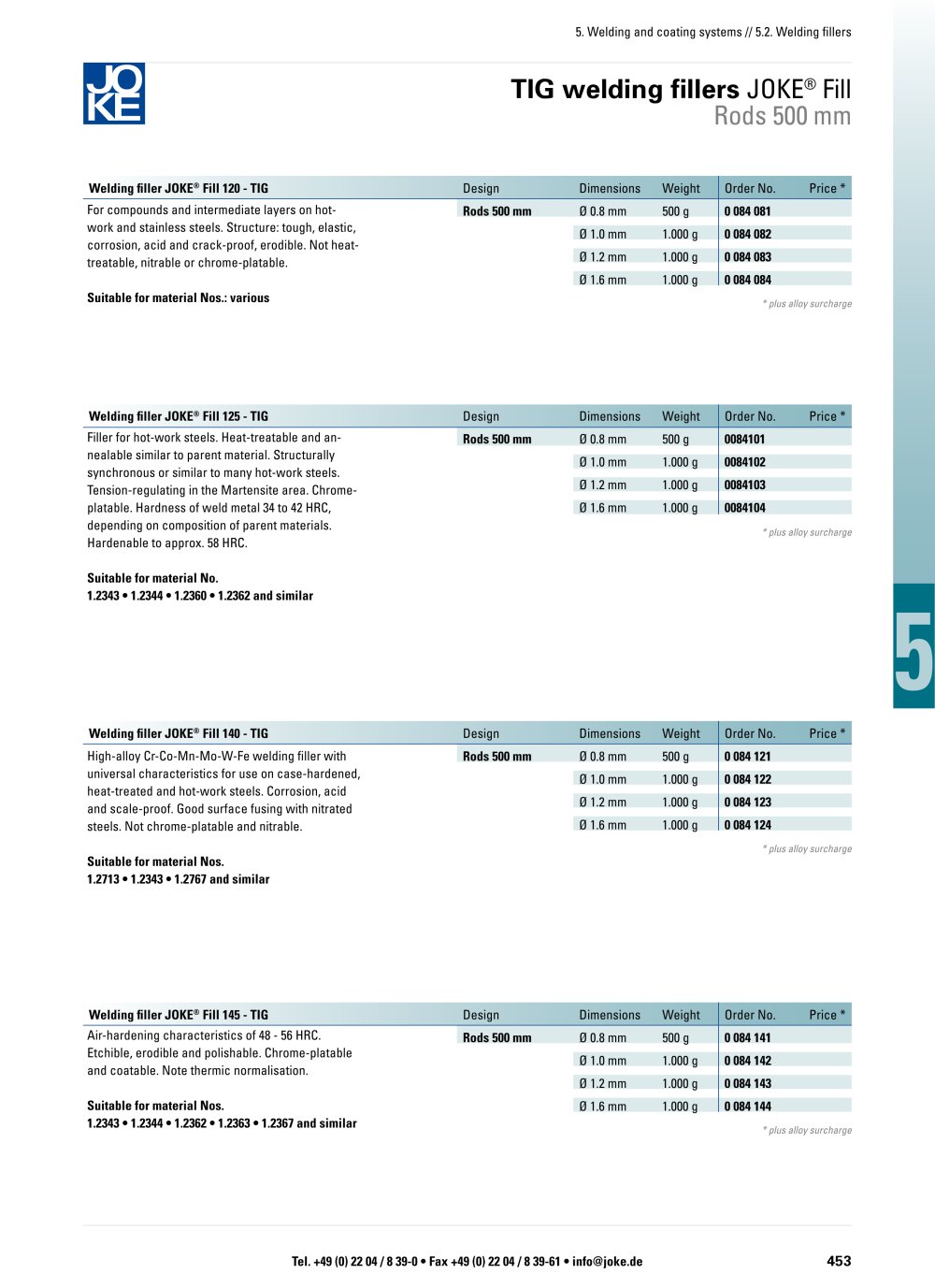

453 5 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.2. Welding fillers Welding filler JOKE® Fill 120 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0 084 081 Ø 1.0 mm 1.000 g 0 084 082 Ø 1.2 mm 1.000 g 0 084 083 Ø 1.6 mm 1.000 g 0 084 084 For compounds and intermediate layers on hotwork and stainless steels. Structure: tough, elastic, corrosion, acid and crack-proof, erodible. Not heattreatable, nitrable or chrome-platable. Suitable for material Nos.: various Welding filler JOKE® Fill 125 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0084101 Ø 1.0 mm 1.000 g 0084102 Ø 1.2 mm 1.000 g 0084103 Ø 1.6 mm 1.000 g 0084104 Filler for hot-work steels. Heat-treatable and annealable similar to parent material. Structurally synchronous or similar to many hot-work steels. Tension-regulating in the Martensite area. Chromeplatable. Hardness of weld metal 34 to 42 HRC, depending on composition of parent materials. Hardenable to approx. 58 HRC. Suitable for material No. 1.2343 • 1.2344 • 1.2360 • 1.2362 and similar Welding filler JOKE® Fill 140 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0 084 121 Ø 1.0 mm 1.000 g 0 084 122 Ø 1.2 mm 1.000 g 0 084 123 Ø 1.6 mm 1.000 g 0 084 124 High-alloy Cr-Co-Mn-Mo-W-Fe welding filler with universal characteristics for use on case-hardened, heat-treated and hot-work steels. Corrosion, acid and scale-proof. Good surface fusing with nitrated steels. Not chrome-platable and nitrable. Suitable for material Nos. 1.2713 • 1.2343 • 1.2767 and similar TIG welding fillers JOKE® Fill Rods 500 mm Welding filler JOKE® Fill 145 - TIG Design Dimensions Weight Order No. Price * Rods 500 mm Ø 0.8 mm 500 g 0 084 141 Ø 1.0 mm 1.000 g 0 084 142 Ø 1.2 mm 1.000 g 0 084 143 Ø 1.6 mm 1.000 g 0 084 144 Air-hardening characteristics of 48 - 56 HRC. Etchible, erodible and polishable. Chrome-platable and coatable. Note thermic normalisation. Suitable for material Nos. 1.2343 • 1.2344 • 1.2362 • 1.2363 • 1.2367 and similar * plus alloy surcharge * plus alloy surcharge * plus alloy surcharge * plus alloy surcharge
