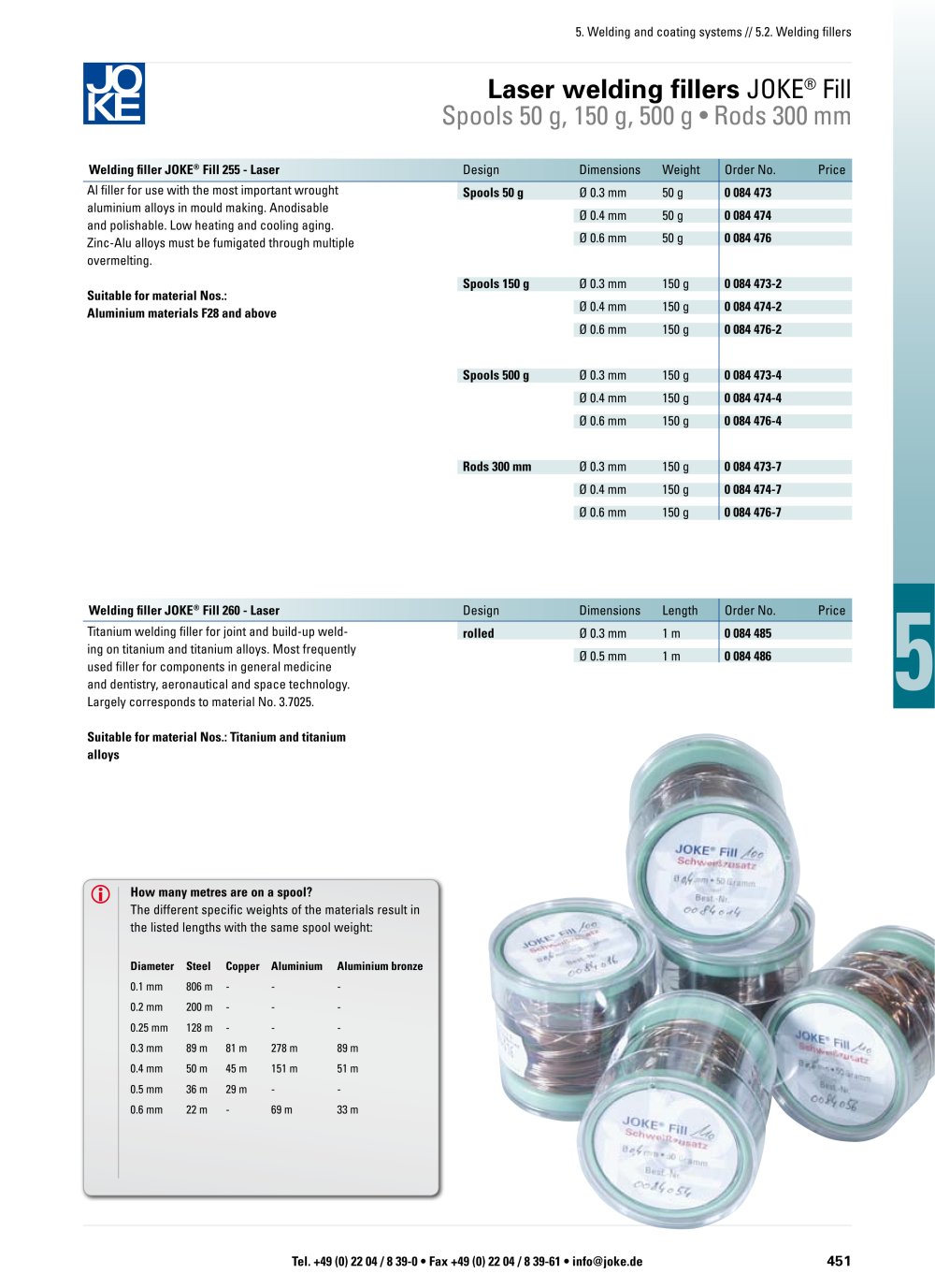

451 5 i Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.2. Welding fillers Welding filler JOKE® Fill 255 - Laser Design Dimensions Weight Order No. Price Spools 50 g Ø 0.3 mm 50 g 0 084 473 Ø 0.4 mm 50 g 0 084 474 Ø 0.6 mm 50 g 0 084 476 Spools 150 g Ø 0.3 mm 150 g 0 084 473-2 Ø 0.4 mm 150 g 0 084 474-2 Ø 0.6 mm 150 g 0 084 476-2 Spools 500 g Ø 0.3 mm 150 g 0 084 473-4 Ø 0.4 mm 150 g 0 084 474-4 Ø 0.6 mm 150 g 0 084 476-4 Rods 300 mm Ø 0.3 mm 150 g 0 084 473-7 Ø 0.4 mm 150 g 0 084 474-7 Ø 0.6 mm 150 g 0 084 476-7 Al filler for use with the most important wrought aluminium alloys in mould making. Anodisable and polishable. Low heating and cooling aging. Zinc-Alu alloys must be fumigated through multiple overmelting. Suitable for material Nos.: Aluminium materials F28 and above Welding filler JOKE® Fill 260 - Laser Design Dimensions Length Order No. Price rolled Ø 0.3 mm 1 m 0 084 485 Ø 0.5 mm 1 m 0 084 486 Titanium welding filler for joint and build-up welding on titanium and titanium alloys. Most frequently used filler for components in general medicine and dentistry, aeronautical and space technology. Largely corresponds to material No. 3.7025. Suitable for material Nos.: Titanium and titanium alloys How many metres are on a spool? The different specific weights of the materials result in the listed lengths with the same spool weight: Diameter Steel Copper Aluminium Aluminium bronze 0.1 mm 806 m - - - 0.2 mm 200 m - - - 0.25 mm 128 m - - - 0.3 mm 89 m 81 m 278 m 89 m 0.4 mm 50 m 45 m 151 m 51 m 0.5 mm 36 m 29 m - - 0.6 mm 22 m - 69 m 33 m Laser welding fillers JOKE® Fill Spools 50 g, 150 g, 500 g • Rods 300 mm
