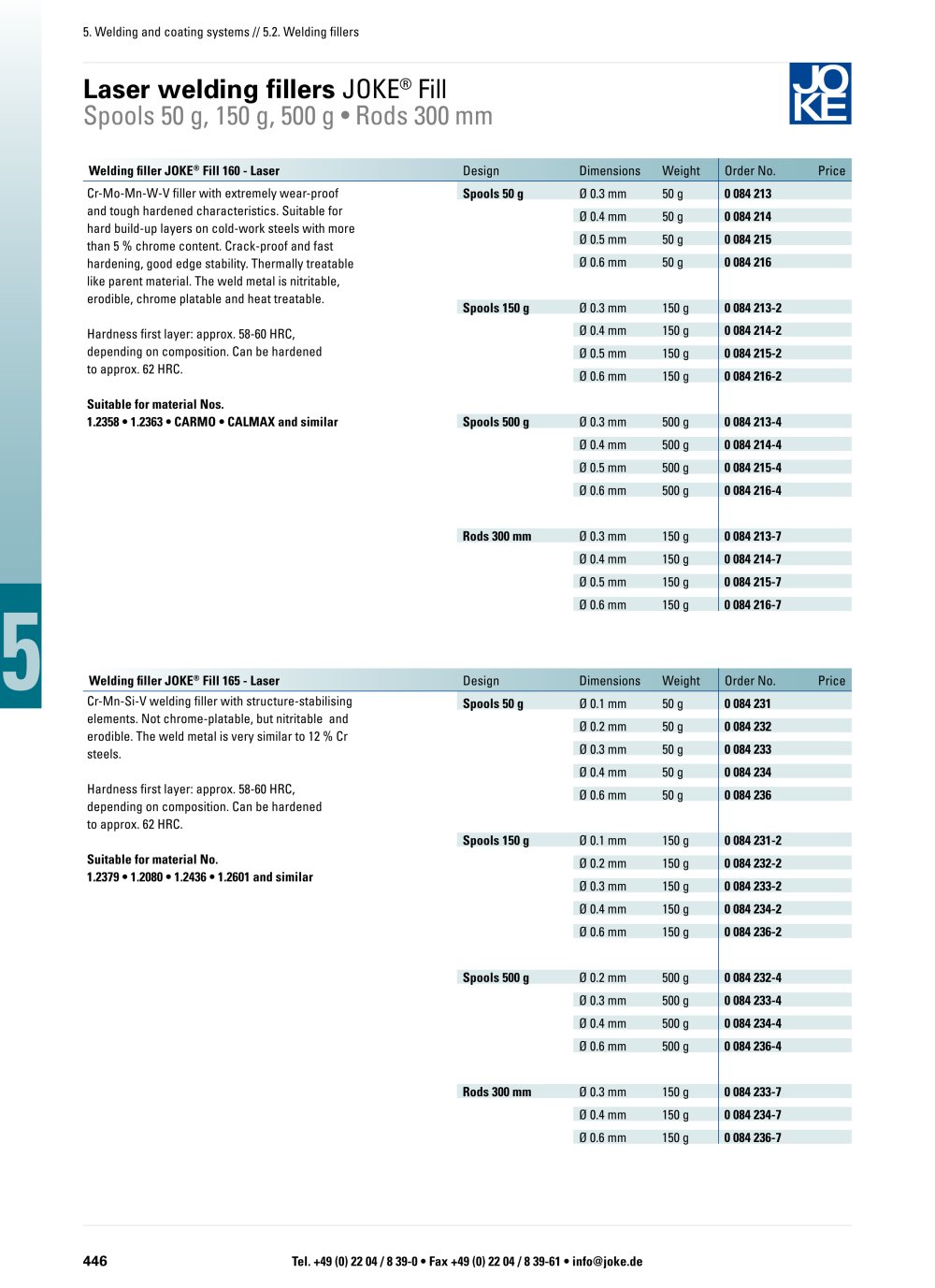

446 5 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.2. Welding fillers Welding filler JOKE® Fill 165 - Laser Design Dimensions Weight Order No. Price Spools 50 g Ø 0.1 mm 50 g 0 084 231 Ø 0.2 mm 50 g 0 084 232 Ø 0.3 mm 50 g 0 084 233 Ø 0.4 mm 50 g 0 084 234 Ø 0.6 mm 50 g 0 084 236 Spools 150 g Ø 0.1 mm 150 g 0 084 231-2 Ø 0.2 mm 150 g 0 084 232-2 Ø 0.3 mm 150 g 0 084 233-2 Ø 0.4 mm 150 g 0 084 234-2 Ø 0.6 mm 150 g 0 084 236-2 Spools 500 g Ø 0.2 mm 500 g 0 084 232-4 Ø 0.3 mm 500 g 0 084 233-4 Ø 0.4 mm 500 g 0 084 234-4 Ø 0.6 mm 500 g 0 084 236-4 Rods 300 mm Ø 0.3 mm 150 g 0 084 233-7 Ø 0.4 mm 150 g 0 084 234-7 Ø 0.6 mm 150 g 0 084 236-7 Cr-Mn-Si-V welding filler with structure-stabilising elements. Not chrome-platable, but nitritable and erodible. The weld metal is very similar to 12 % Cr steels. Hardness first layer: approx. 58-60 HRC, depending on composition. Can be hardened to approx. 62 HRC. Suitable for material No. 1.2379 • 1.2080 • 1.2436 • 1.2601 and similar Welding filler JOKE® Fill 160 - Laser Design Dimensions Weight Order No. Price Spools 50 g Ø 0.3 mm 50 g 0 084 213 Ø 0.4 mm 50 g 0 084 214 Ø 0.5 mm 50 g 0 084 215 Ø 0.6 mm 50 g 0 084 216 Spools 150 g Ø 0.3 mm 150 g 0 084 213-2 Ø 0.4 mm 150 g 0 084 214-2 Ø 0.5 mm 150 g 0 084 215-2 Ø 0.6 mm 150 g 0 084 216-2 Spools 500 g Ø 0.3 mm 500 g 0 084 213-4 Ø 0.4 mm 500 g 0 084 214-4 Ø 0.5 mm 500 g 0 084 215-4 Ø 0.6 mm 500 g 0 084 216-4 Rods 300 mm Ø 0.3 mm 150 g 0 084 213-7 Ø 0.4 mm 150 g 0 084 214-7 Ø 0.5 mm 150 g 0 084 215-7 Ø 0.6 mm 150 g 0 084 216-7 Cr-Mo-Mn-W-V filler with extremely wear-proof and tough hardened characteristics. Suitable for hard build-up layers on cold-work steels with more than 5 % chrome content. Crack-proof and fast hardening, good edge stability. Thermally treatable like parent material. The weld metal is nitritable, erodible, chrome platable and heat treatable. Hardness first layer: approx. 58-60 HRC, depending on composition. Can be hardened to approx. 62 HRC. Suitable for material Nos. 1.2358 • 1.2363 • CARMO • CALMAX and similar Laser welding fillers JOKE® Fill Spools 50 g, 150 g, 500 g • Rods 300 mm
