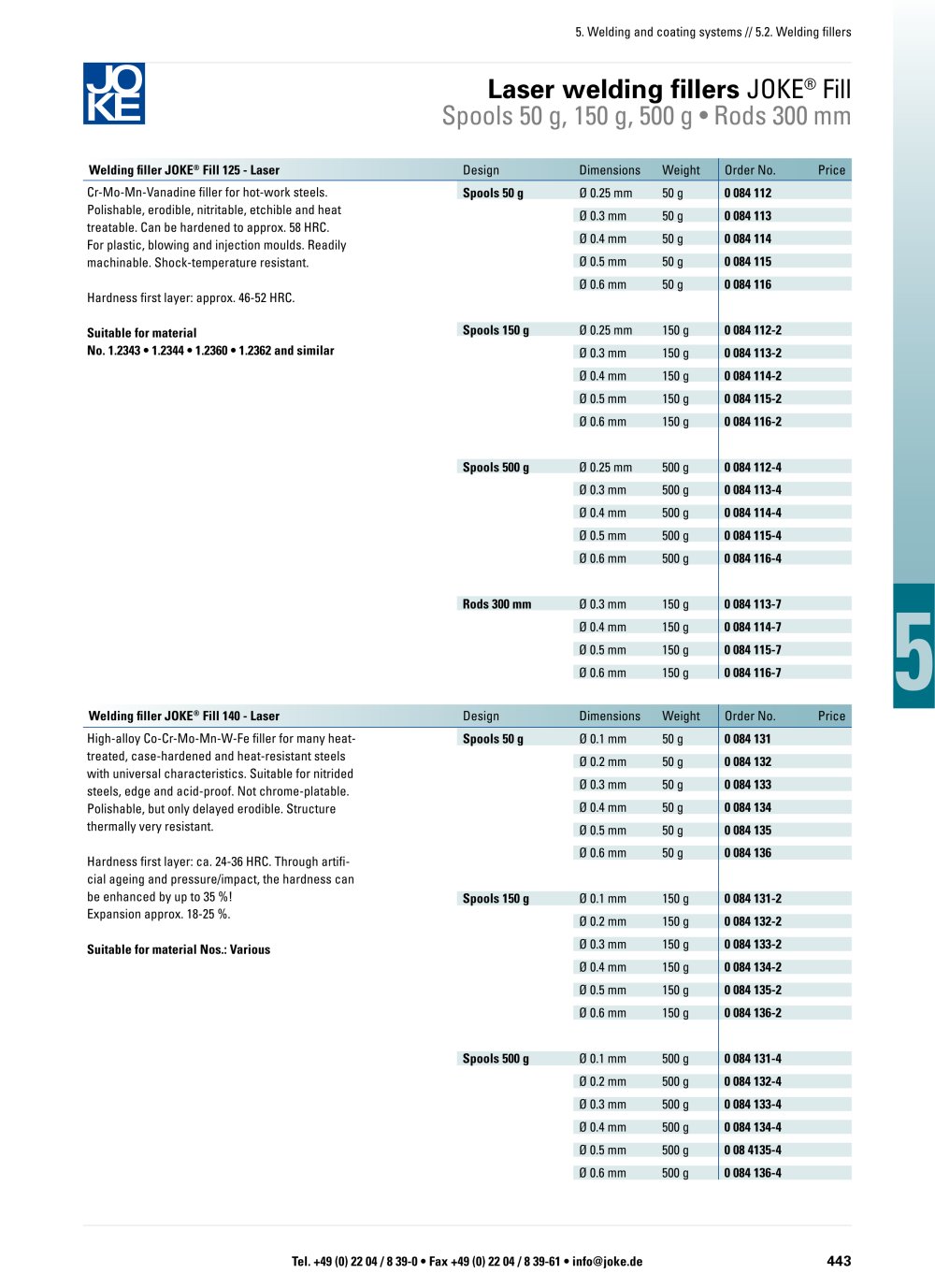

443 5 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.2. Welding fillers Welding filler JOKE® Fill 125 - Laser Design Dimensions Weight Order No. Price Spools 50 g Ø 0.25 mm 50 g 0 084 112 Ø 0.3 mm 50 g 0 084 113 Ø 0.4 mm 50 g 0 084 114 Ø 0.5 mm 50 g 0 084 115 Ø 0.6 mm 50 g 0 084 116 Spools 150 g Ø 0.25 mm 150 g 0 084 112-2 Ø 0.3 mm 150 g 0 084 113-2 Ø 0.4 mm 150 g 0 084 114-2 Ø 0.5 mm 150 g 0 084 115-2 Ø 0.6 mm 150 g 0 084 116-2 Spools 500 g Ø 0.25 mm 500 g 0 084 112-4 Ø 0.3 mm 500 g 0 084 113-4 Ø 0.4 mm 500 g 0 084 114-4 Ø 0.5 mm 500 g 0 084 115-4 Ø 0.6 mm 500 g 0 084 116-4 Rods 300 mm Ø 0.3 mm 150 g 0 084 113-7 Ø 0.4 mm 150 g 0 084 114-7 Ø 0.5 mm 150 g 0 084 115-7 Ø 0.6 mm 150 g 0 084 116-7 Cr-Mo-Mn-Vanadine filler for hot-work steels. Polishable, erodible, nitritable, etchible and heat treatable. Can be hardened to approx. 58 HRC. For plastic, blowing and injection moulds. Readily machinable. Shock-temperature resistant. Hardness first layer: approx. 46-52 HRC. Suitable for material No. 1.2343 • 1.2344 • 1.2360 • 1.2362 and similar Welding filler JOKE® Fill 140 - Laser Design Dimensions Weight Order No. Price Spools 50 g Ø 0.1 mm 50 g 0 084 131 Ø 0.2 mm 50 g 0 084 132 Ø 0.3 mm 50 g 0 084 133 Ø 0.4 mm 50 g 0 084 134 Ø 0.5 mm 50 g 0 084 135 Ø 0.6 mm 50 g 0 084 136 Spools 150 g Ø 0.1 mm 150 g 0 084 131-2 Ø 0.2 mm 150 g 0 084 132-2 Ø 0.3 mm 150 g 0 084 133-2 Ø 0.4 mm 150 g 0 084 134-2 Ø 0.5 mm 150 g 0 084 135-2 Ø 0.6 mm 150 g 0 084 136-2 Spools 500 g Ø 0.1 mm 500 g 0 084 131-4 Ø 0.2 mm 500 g 0 084 132-4 Ø 0.3 mm 500 g 0 084 133-4 Ø 0.4 mm 500 g 0 084 134-4 Ø 0.5 mm 500 g 0 08 4135-4 Ø 0.6 mm 500 g 0 084 136-4 High-alloy Co-Cr-Mo-Mn-W-Fe filler for many heattreated, case-hardened and heat-resistant steels with universal characteristics. Suitable for nitrided steels, edge and acid-proof. Not chrome-platable. Polishable, but only delayed erodible. Structure thermally very resistant. Hardness first layer: ca. 24-36 HRC. Through artificial ageing and pressure/impact, the hardness can be enhanced by up to 35 %! Expansion approx. 18-25 %. Suitable for material Nos.: Various Laser welding fillers JOKE® Fill Spools 50 g, 150 g, 500 g • Rods 300 mm
