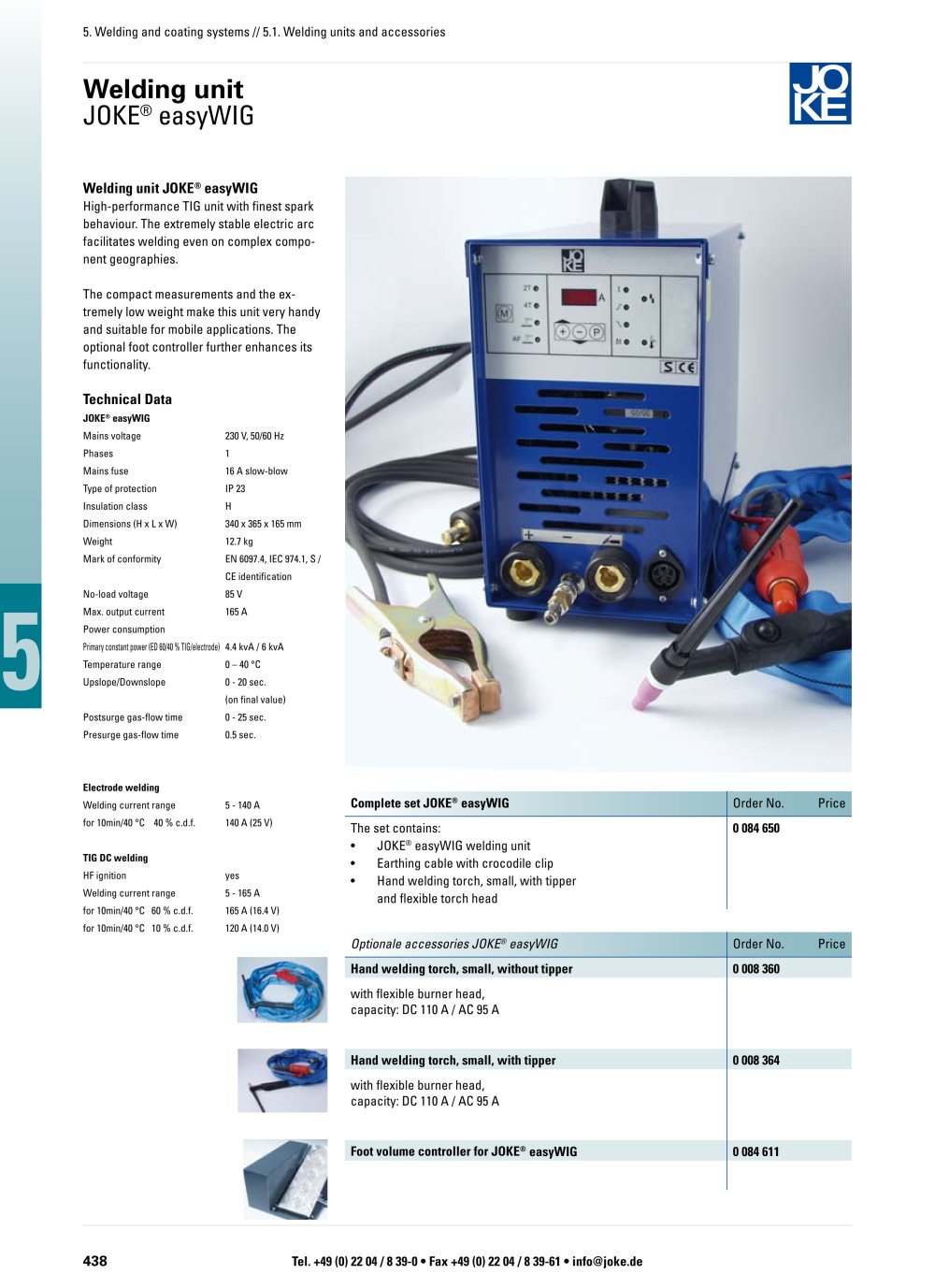

438 5 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.1. Welding units and accessories Welding unit JOKE® easyWIG Welding unit JOKE® easyWIG High-performance TIG unit with finest spark behaviour. The extremely stable electric arc facilitates welding even on complex component geographies. The compact measurements and the extremely low weight make this unit very handy and suitable for mobile applications. The optional foot controller further enhances its functionality. Technical Data JOKE® easyWIG Mains voltage 230 V, 50/60 Hz Phases 1 Mains fuse 16 A slow-blow Type of protection IP 23 Insulation class H Dimensions (H x L x W) 340 x 365 x 165 mm Weight 12.7 kg Mark of conformity EN 6097.4, IEC 974.1, S / CE identification No-load voltage 85 V Max. output current 165 A Power consumption Primary constant power (ED 60/40 % TIG/electrode) 4.4 kvA / 6 kvA Temperature range 0 – 40 °C Upslope/Downslope 0 - 20 sec. (on final value) Postsurge gas-flow time 0 - 25 sec. Presurge gas-flow time 0.5 sec. Electrode welding Welding current range 5 - 140 A for 10min/40 °C 40 % c.d.f. 140 A (25 V) TIG DC welding HF ignition yes Welding current range 5 - 165 A for 10min/40 °C 60 % c.d.f. 165 A (16.4 V) for 10min/40 °C 10 % c.d.f. 120 A (14.0 V) Complete set JOKE® easyWIG Order No. Price The set contains: • JOKE® easyWIG welding unit • Earthing cable with crocodile clip • Hand welding torch, small, with tipper and flexible torch head 0 084 650 Optionale accessories JOKE® easyWIG Order No. Price Hand welding torch, small, without tipper 0 008 360 with flexible burner head, capacity: DC 110 A / AC 95 A Hand welding torch, small, with tipper 0 008 364 with flexible burner head, capacity: DC 110 A / AC 95 A Foot volume controller for JOKE® easyWIG 0 084 611
