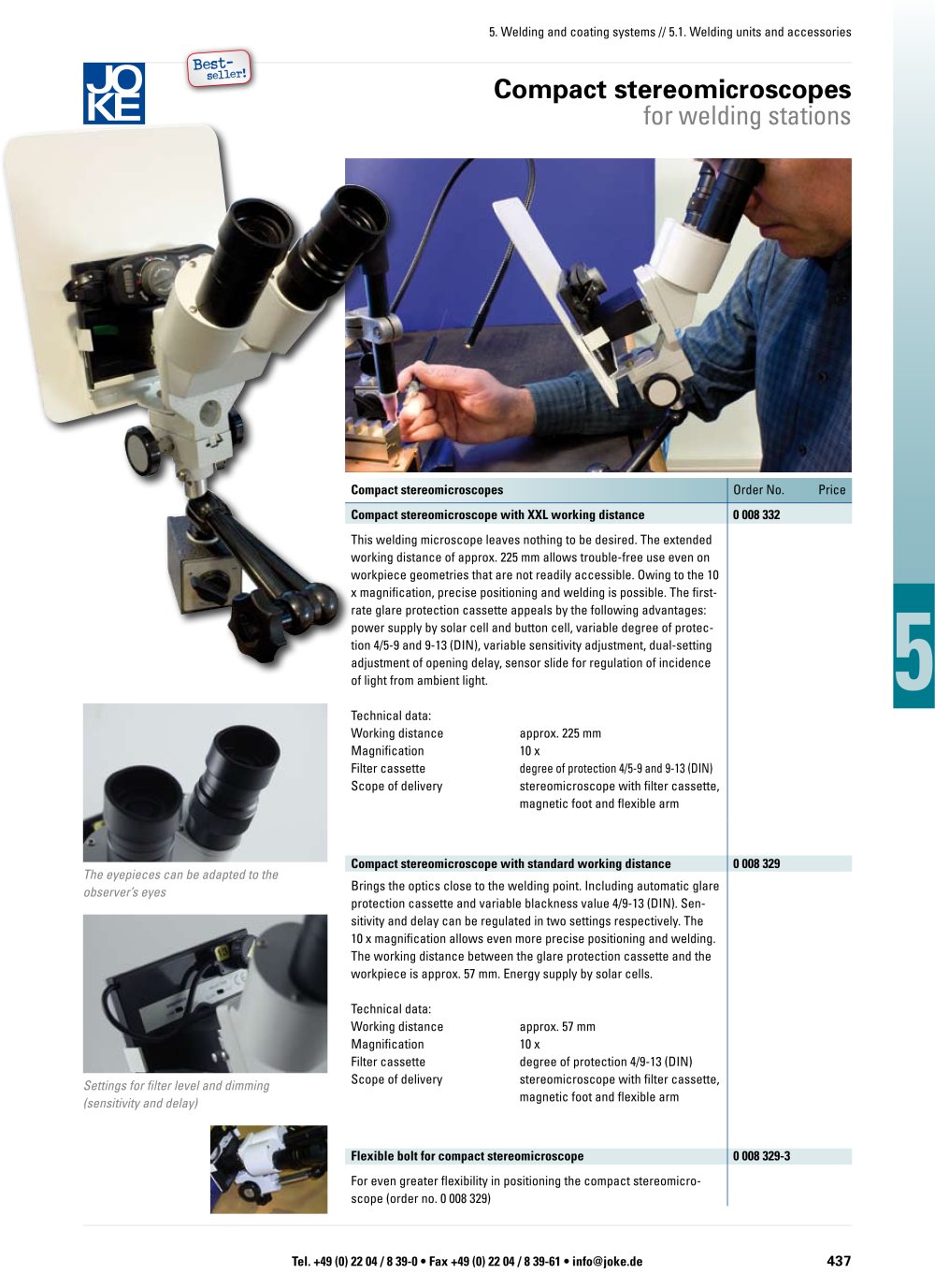

437 5 Bestseller! Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 5. Welding and coating systems // 5.1. Welding units and accessories Compact stereomicroscopes for welding stations Settings for filter level and dimming (sensitivity and delay) The eyepieces can be adapted to the observer’s eyes Compact stereomicroscopes Order No. Price Compact stereomicroscope with XXL working distance 0 008 332 This welding microscope leaves nothing to be desired. The extended working distance of approx. 225 mm allows trouble-free use even on workpiece geometries that are not readily accessible. Owing to the 10 x magnification, precise positioning and welding is possible. The firstrate glare protection cassette appeals by the following advantages: power supply by solar cell and button cell, variable degree of protection 4/5-9 and 9-13 (DIN), variable sensitivity adjustment, dual-setting adjustment of opening delay, sensor slide for regulation of incidence of light from ambient light. Technical data: Working distance approx. 225 mm Magnification 10 x Filter cassette degree of protection 4/5-9 and 9-13 (DIN) Scope of delivery stereomicroscope with filter cassette, magnetic foot and flexible arm Compact stereomicroscope with standard working distance 0 008 329 Brings the optics close to the welding point. Including automatic glare protection cassette and variable blackness value 4/9-13 (DIN). Sensitivity and delay can be regulated in two settings respectively. The 10 x magnification allows even more precise positioning and welding. The working distance between the glare protection cassette and the workpiece is approx. 57 mm. Energy supply by solar cells. Technical data: Working distance approx. 57 mm Magnification 10 x Filter cassette degree of protection 4/9-13 (DIN) Scope of delivery stereomicroscope with filter cassette, magnetic foot and flexible arm Flexible bolt for compact stereomicroscope 0 008 329-3 For even greater flexibility in positioning the compact stereomicroscope (order no. 0 008 329)
