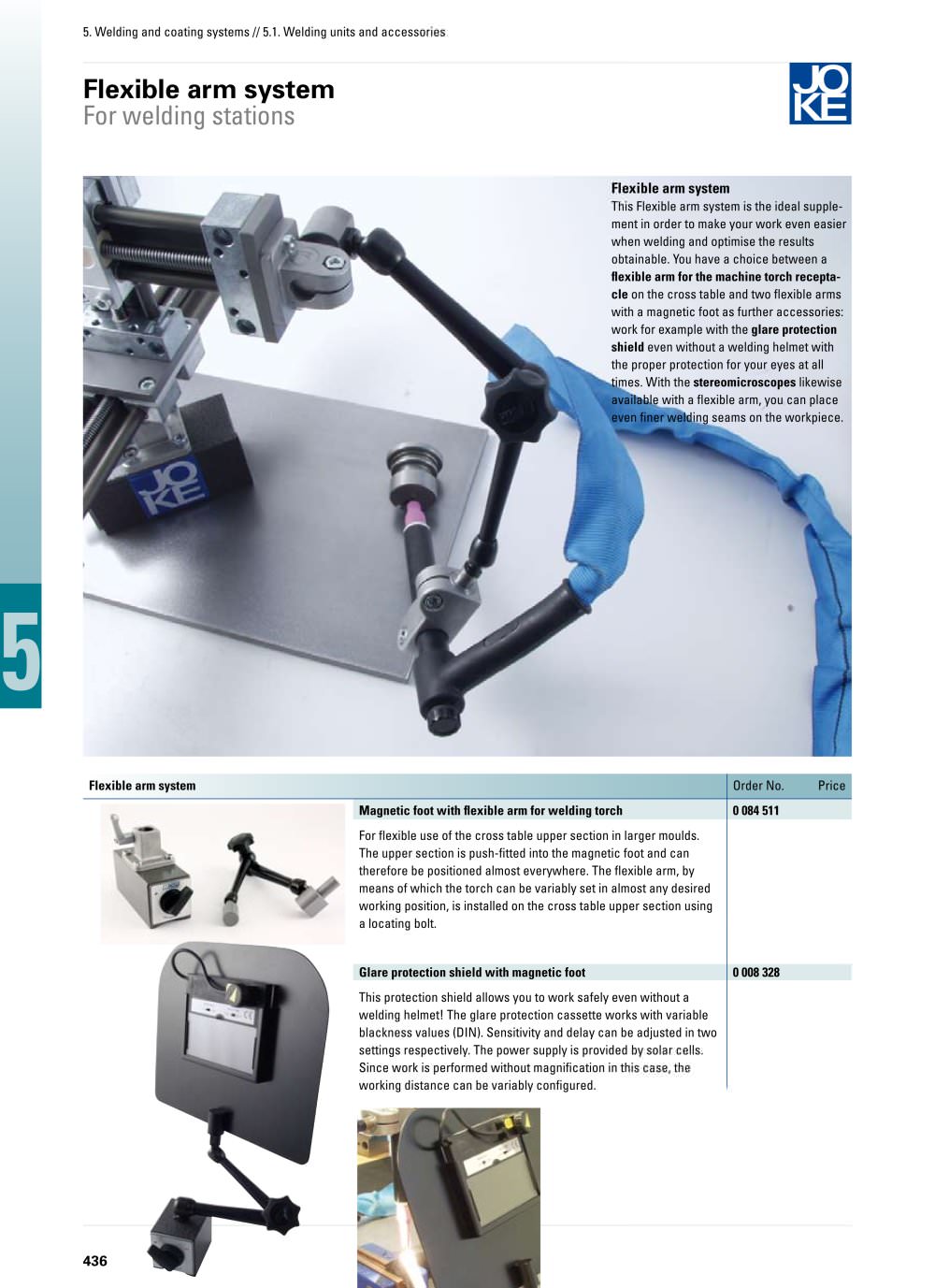

436 5 5. Welding and coating systems // 5.1. Welding units and accessories Flexible arm system For welding stations Flexible arm system This Flexible arm system is the ideal supplement in order to make your work even easier when welding and optimise the results obtainable. You have a choice between a flexible arm for the machine torch receptacle on the cross table and two flexible arms with a magnetic foot as further accessories: work for example with the glare protection shield even without a welding helmet with the proper protection for your eyes at all times. With the stereomicroscopes likewise available with a flexible arm, you can place even finer welding seams on the workpiece. Flexible arm system Order No. Price Magnetic foot with flexible arm for welding torch 0 084 511 For flexible use of the cross table upper section in larger moulds. The upper section is push-fitted into the magnetic foot and can therefore be positioned almost everywhere. The flexible arm, by means of which the torch can be variably set in almost any desired working position, is installed on the cross table upper section using a locating bolt. Glare protection shield with magnetic foot 0 008 328 This protection shield allows you to work safely even without a welding helmet! The glare protection cassette works with variable blackness values (DIN). Sensitivity and delay can be adjusted in two settings respectively. The power supply is provided by solar cells. Since work is performed without magnification in this case, the working distance can be variably configured.
