| NEW! | |||||||||||||||||||||||||

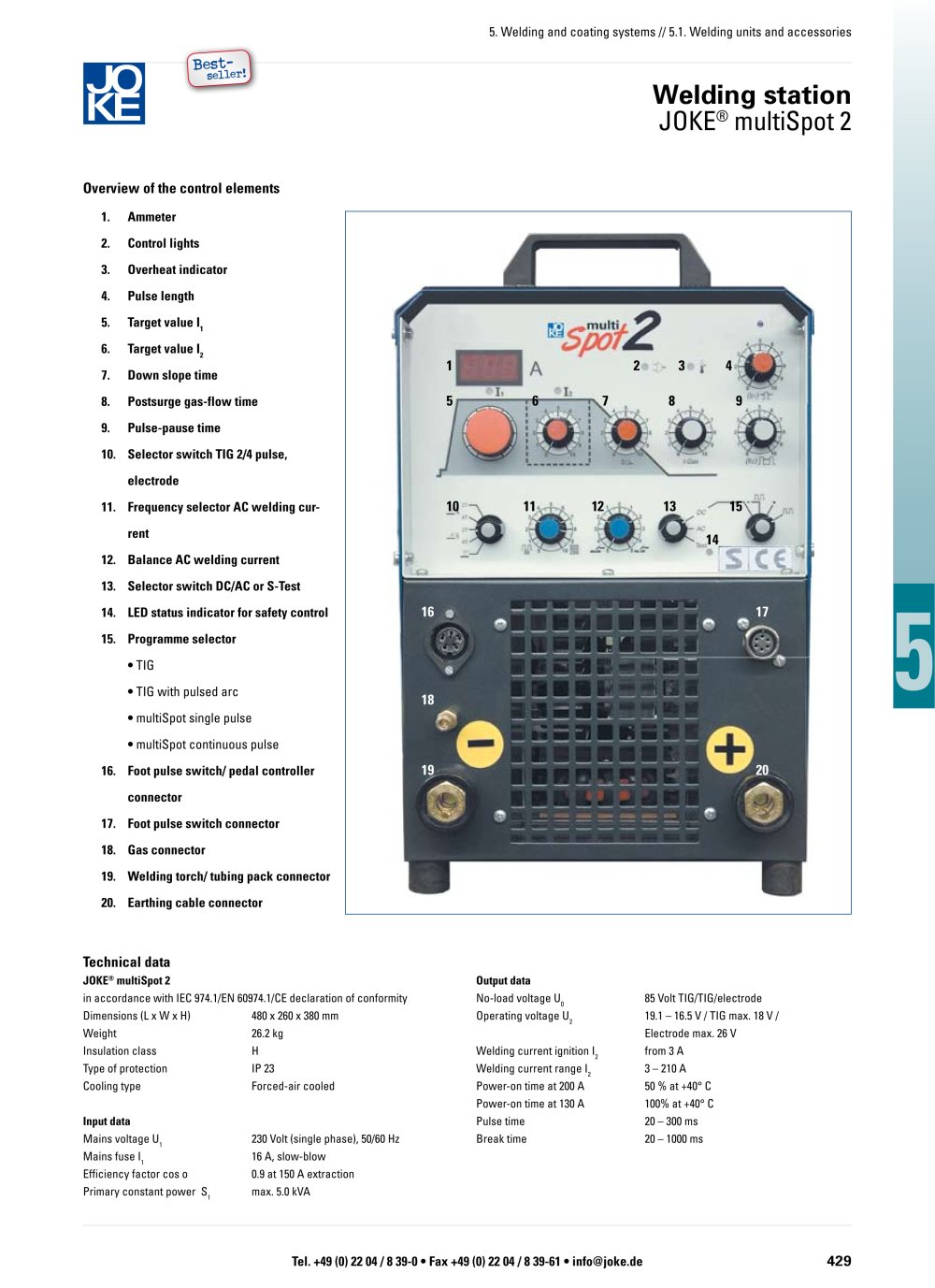

| Welding station JOKE® multiSpot 2 | |||||||||||||||||||||||||
| Overview of the control elements 1. Ammeter 2. Control lights 3. Overheat indicator 4. Pulse length 5. Target value I1 6. Target value I2 7. Down slope time 8. Postsurge gas-flow time 9. Pulse-pause time 10. Selector switch TIG 2/4 pulse, electrode 11. Frequency selector AC welding current 12. Balance AC welding current 13. Selector switch DC/AC or S-Test 14. LED status indicator for safety control 15. Programme selector • TIG • TIG continuous pulse • multiSpot single pulse • multiSpot continuous pulse 16. Foot pulse switch/ pedal controller connector 17. Foot pulse switch connector 18. Gas connector 19. Welding torch/ tubing pack connector 20. Earthing cable connector | |||||||||||||||||||||||||
| ► Technical data JOKE® multiSpot 2 in accordance with IEC 974.1/EN 60974.1/CE declaration of conformity | |||||||||||||||||||||||||
| Output data No-load voltage U0 Operating voltage U2 Welding current ignition I2 Welding current range I2 Power-on time at 200 A Power-on time at 130 A Pulse time Break time | |||||||||||||||||||||||||
| 85 Volt TIG/TIG/electrode 19.1 - 16.5 V / TIG max. 18 V / Electrode max. 26 V from 3 A 3 - 210 A 50 % at +40° C 100% at +40° C 20 - 300 ms 20 - 1000 ms | |||||||||||||||||||||||||
| Dimensions (L x W x H) Weight Insulation class Type of protection Cooling type Input data Mains voltage U1 Mains fuse I1 Efficiency factor cos o Primary constant power S1 | |||||||||||||||||||||||||
| 480 x 260 x 380 mm 26.2 kg H IP 23 Forced-air cooled | |||||||||||||||||||||||||
| 230 Volt (single phase), 50/60 Hz 16 A, slow-blow 0.9 at 150 A extraction max. 5.0 kVA | |||||||||||||||||||||||||
