Technical and design modifications reserved

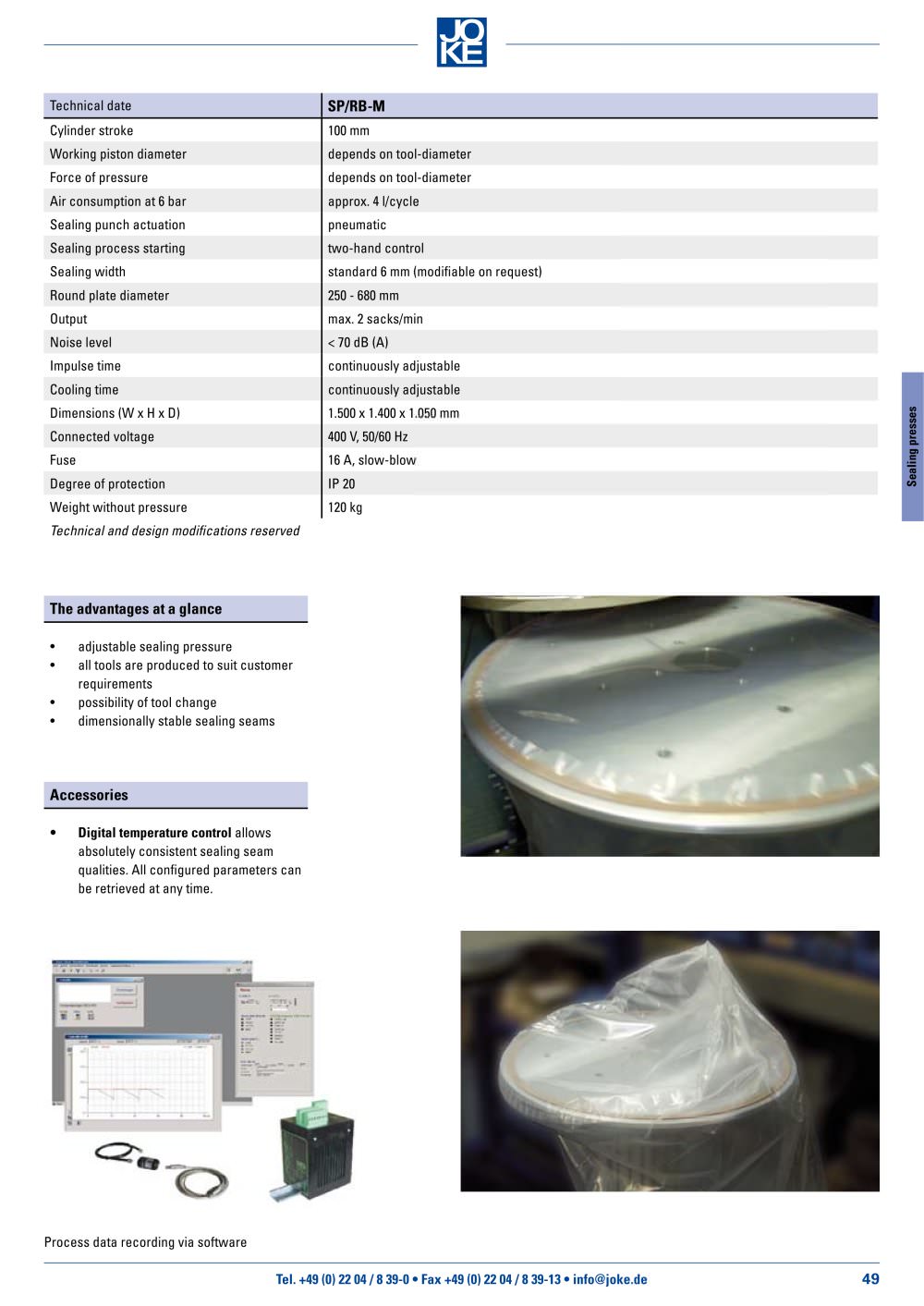

Sealing presses - 24635 SP/RB-M

Cylinder stroke100 mmWorking piston diameterdepends on tool-diameter Force of pressuredepends on tool-diameter Air consumption at 6 barapprox. 4 l/cycleSealing punch actuationpneumaticSealing process startingtwo-hand controlSealing widthstandard 6 mm (modifiable on request)Round plate diameter250 - 680 mmOutputmax. 2 sacks/min Noise level
Sealing presses

The advantages at a glance

adjustable sealing pressureall tools are produced to suit customer requirements possibility of tool change dimensionally stable sealing seams•••• Technical date •

Accessories

Digital temperature control allows absolutely consistent sealing seam qualities. All configured parameters can be retrieved at any time. Process data recording via software Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-13 • info@joke.de

49
