Technical and design modifications reserved

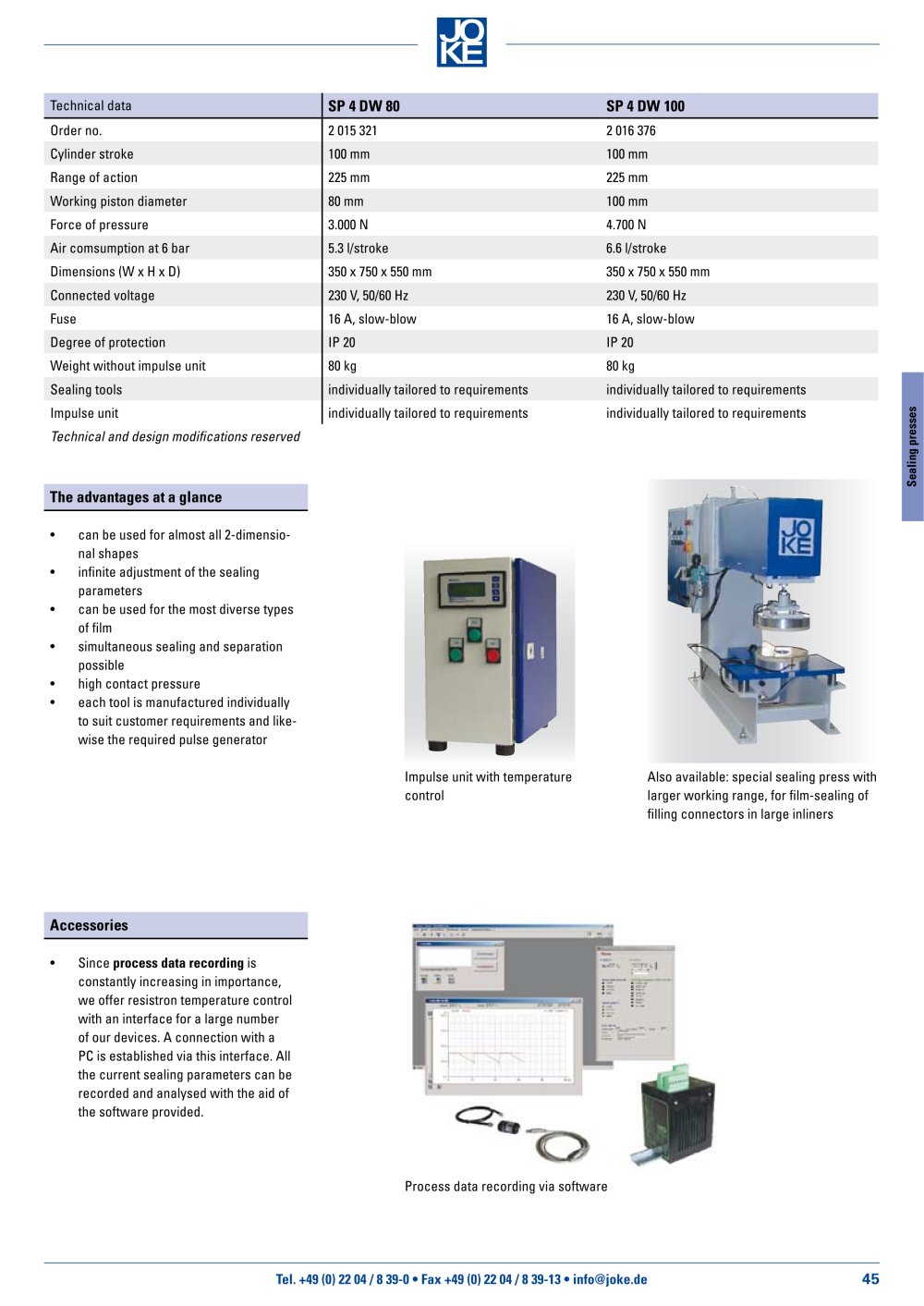

Sealing presses - 24635 SP 4 DW 80SP 4 DW 100

Order no.2 015 3212 016 376Cylinder stroke100 mm100 mm Range of action225 mm225 mm Working piston diameter80 mm100 mm Force of pressure3.000 N4.700 N Air comsumption at 6 bar5.3 l/stroke6.6 l/stroke Dimensions (W x H x D)350 x 750 x 550 mm350 x 750 x 550 mm Connected voltage230 V, 50/60 Hz230 V, 50/60 HzFuse16 A, slow-blow16 A, slow-blowDegree of protectionIP 20IP 20 Weight without impulse unit80 kg80 kg Sealing toolsindividually tailored to requirementsindividually tailored to requirements Impulse unitindividually tailored to requirementsindividually tailored to requirements
Sealing presses

The advantages at a glance

can be used for almost all 2-dimensio-nal shapes infinite adjustment of the sealing parameters can be used for the most diverse types of film simultaneous sealing and separation possible high contact pressure each tool is manufactured individually to suit customer requirements and like- wise the required pulse generator •• • • ••Impulse unit with temperature control

Accessories

Since process data recording is constantly increasing in importance, we offer resistron temperature control with an interface for a large number of our devices. A connection with a PC is established via this interface. All the current sealing parameters can be recorded and analysed with the aid of the software provided. • Process data recording via software Also available: special sealing press with larger working range, for film-sealing of filling connectors in large inliners Technical data Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-13 • info@joke.de

45
