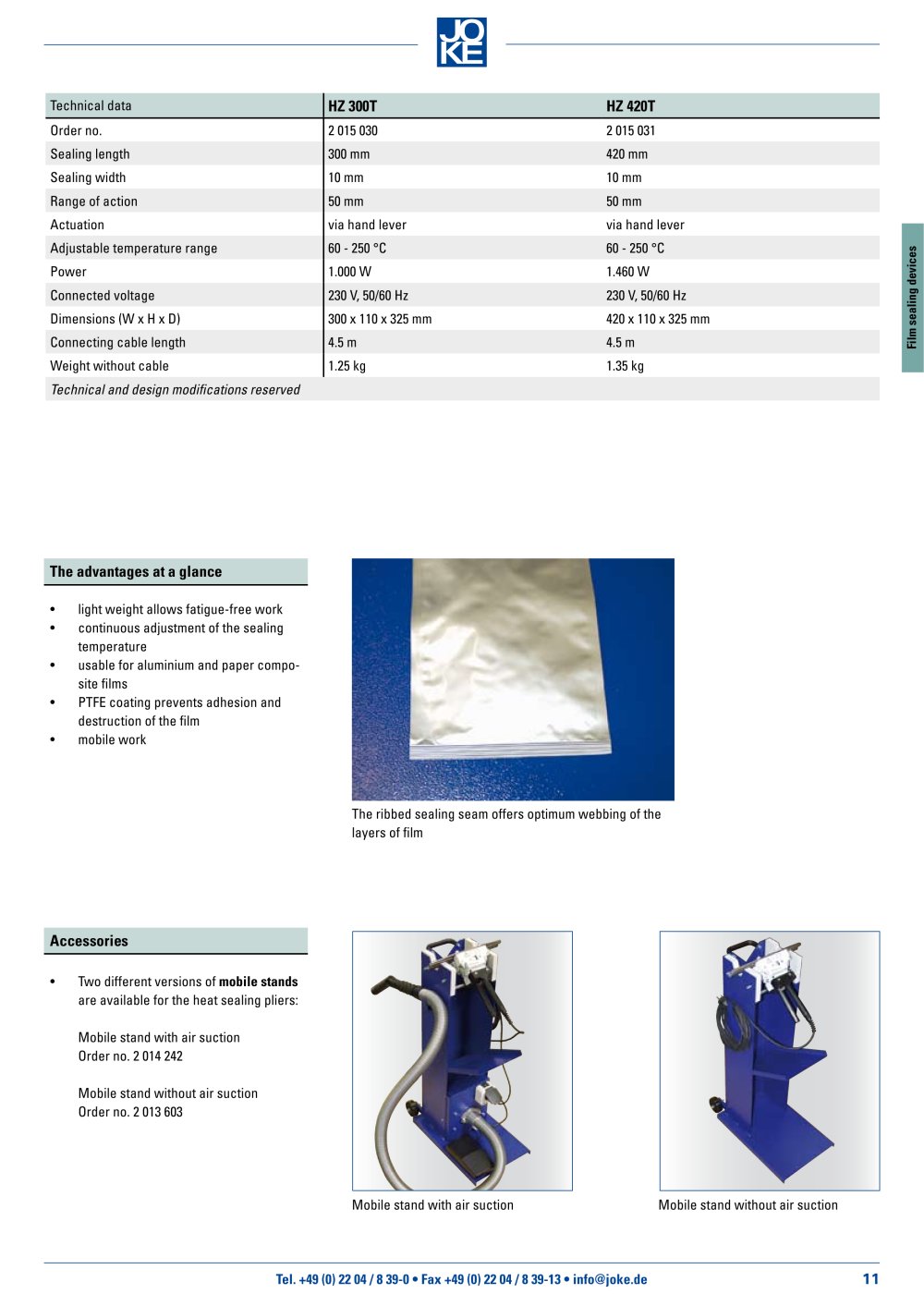

| | | | | | | | | | | Technical data | HZ 300T | HZ 420T | | | | Order no. | 2015 030 | 2 015 031 | | | | Sealing length | 300 mm | 420 mm | | | | Sealing width | 10 mm | 10 mm | | | | Range of action | 50 mm | 50 mm | | | | Actuation | via hand lever | via hand lever | | | | Adjustable temperature range | 60 - 250 °C | 60 - 250 °C | | | | Power | 1.000 W | 1.460 W | | | | Connected voltage | 230 V, 50/60 Hz | 230 V, 50/60 Hz | | | | Dimensions (W x H x D) | 300 x 110 x 325 mm | 420 x 110 x 325 mm | | | | Connecting cable length | 4.5 m | 4.5 m | | | | Weight without cable | 1.25 kg | 1.35 kg | | | | | | | | | | |
| | | | |
| | | |
| | | ■> 0} -a To 0} » E LZ | | |
| | | |
| | | |
| | | Technical and design modifications reserved | | |
| | | |
| | | The advantages at a glance • light weight allows fatigue-free work • continuous adjustment of the sealing temperature • usable for aluminium and paper composite films • PTFE coating prevents adhesion and destruction of the film • mobile work | | |
| | | |
| | | The ribbed sealing seam offers optimum webbing of the layers of film | | |
| | | |
| | | Accessories | | |
| | | |
| | | • Two different versions of mobile stands are available for the heat sealing pliers: Mobile stand with air suction Order no. 2 014 242 Mobile stand without air suction Order no. 2 013 603 | | |
| | | |
| | | Mobile stand with air suction Mobile stand without air suction | | |
| | | |
| | | | | |
| | | | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | |
