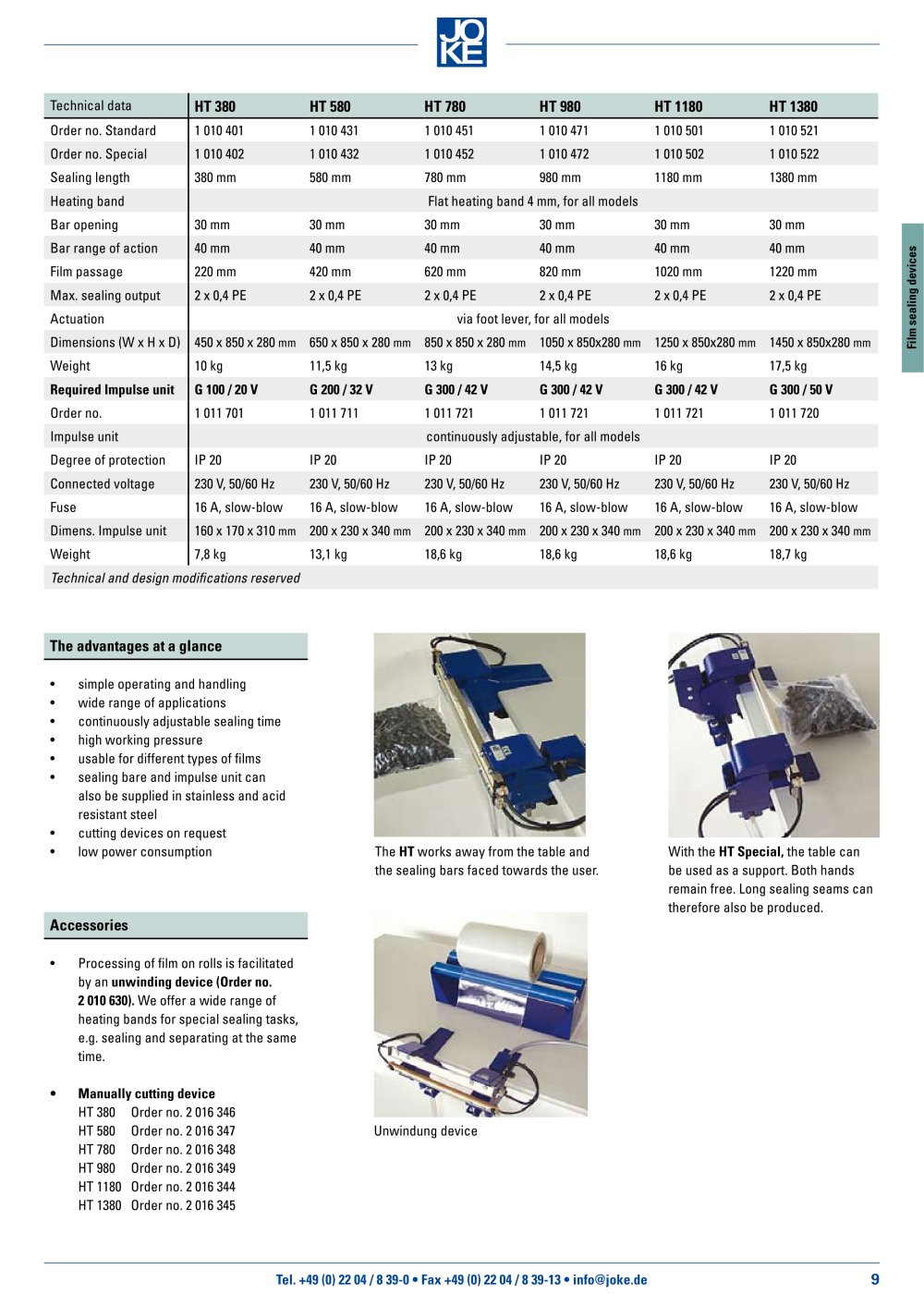

Technical data	HT 380	HT 580	HT 780	HT 980	HT 1180	HT 1380
Order no. Standard	1 010 401	1 010 431	1 010 451	1 010 471	1 010 501	1 010 521
Order no. Special	1 010 402	1 010 432	1 010 452	1 010 472	1 010 502	1 010 522
Sealing length	380 mm	580 mm	780 mm	980 mm	1180 mm	1380 mm
Heating band			Flat heating band 4 mm, for all models
Bar opening	30 mm	30 mm	30 mm	30 mm	30 mm	30 mm
Bar range of action	40 mm	40 mm	40 mm	40 mm	40 mm	40 mm
Film passage	220 mm	420 mm	620 mm	820 mm	1020 mm	1220 mm
Max. sealing output	2 x 0,4 PE	2 x 0,4 PE	2 x 0,4 PE	2 x 0,4 PE	2 x 0,4 PE	2 x 0,4 PE
Actuation			via foot lever, for all models
Dimensions (W x H x D)	450 x 850 x 280 mm	650 x 850 x 280 mm	850 x 850 x 280 mm	1050 x 850x280 mm	1250 x 850x280 mm	1450 x 850x280 mm
Weight	10 kg	11,5 kg	13 kg	14,5 kg	16 kg	17,5 kg
Required Impulse unit	G 100 / 20 V	G 200 / 32 V	G 300 / 42 V	G 300 / 42 V	G 300 / 42 V	G 300 / 50 V
Order no.	1 011 701	1 011 711	1 011 721	1 011 721	1 011 721	1 011 720
Impulse unit			continuously adjustable, for all models
Degree of protection	IP 20	IP 20	IP 20	IP 20	IP 20	IP 20
Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Fuse	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow
Dimens. Impulse unit	160 x 170 x 310 mm	200 x 230 x 340 mm	200 x 230 x 340 mm	200 x 230 x 340 mm	200 x 230 x 340 mm	200 x 230 x 340 mm
Weight	7,8 kg	13,1 kg	18,6 kg	18,6 kg	18,6 kg	18,7 kg

■>

-a

» E LZ

Technical and design modifications reserved

The advantages at a glance

• simple operating and handling

• wide range of applications

• continuously adjustable sealing time

• high working pressure

• usable for different types of films

• sealing bare and impulse unit can also be supplied in stainless and acid resistant steel

• cutting devices on request

• low power consumption

The HT works away from the table and the sealing bars faced towards the user.

With the HT Special, the table can be used as a support. Both hands remain free. Long sealing seams can therefore also be produced.

Accessories

• Processing of film on rolls is facilitated by an unwinding device (Order no.

2 010 630). We offer a wide range of heating bands for special sealing tasks, e.g. sealing and separating at the same time.

• Manually cutting device

HT 380 Order no. 2 016 346 HT 580 Order no. 2 016 347

HT 780 Order no. 2 016 348

HT 980 Order no. 2 016 349

HT 1180 Order no. 2 016 344 HT 1380 Order no. 2 016 345

Unwindung device
