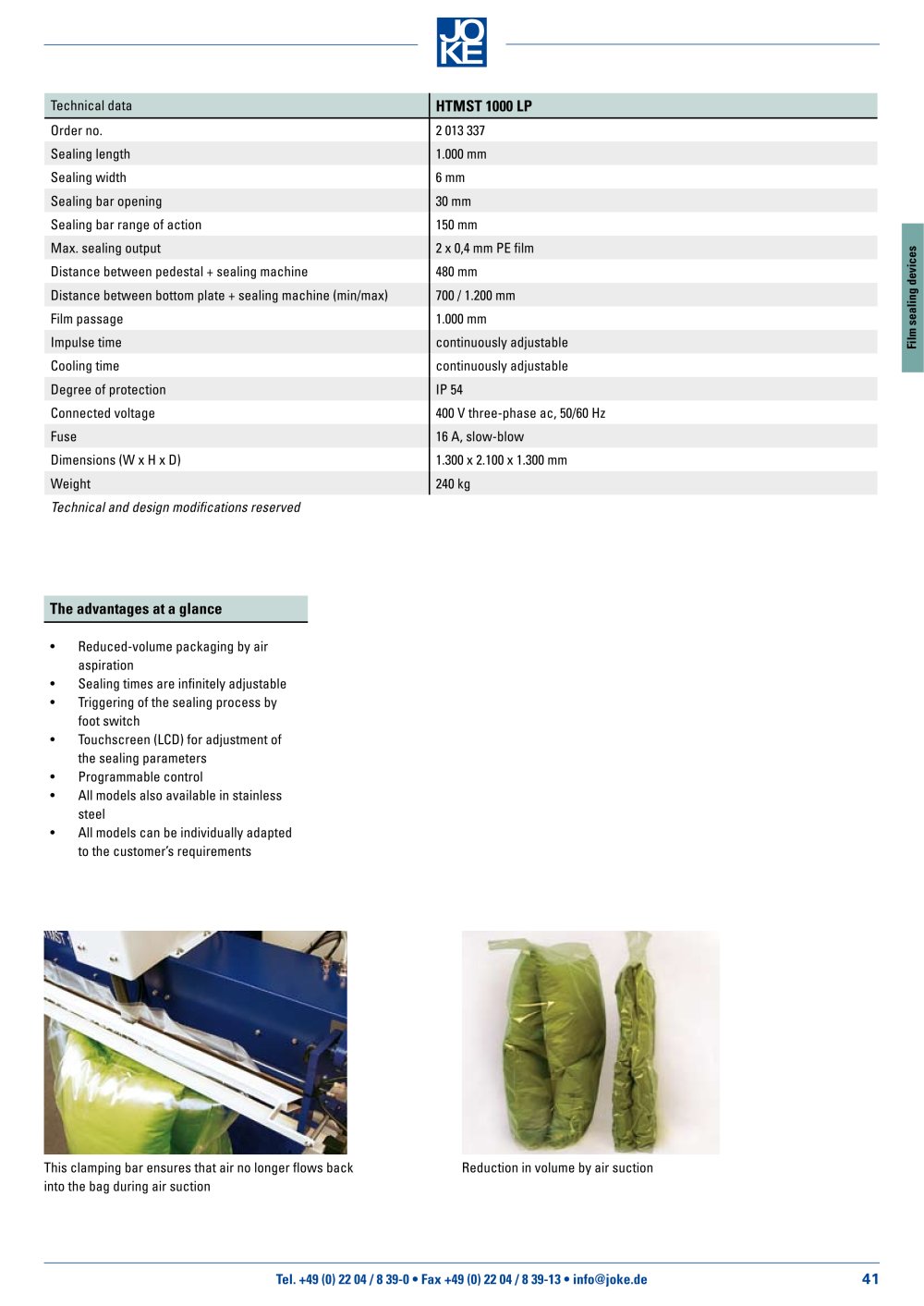

	Technical data	HTMST 1000 LP
	Order no.	2 013 337
	Sealing length	1.000 mm
	Sealing width	6 mm
	Sealing bar opening	30 mm
	Sealing bar range of action	150 mm
	Max. sealing output	2 x 0,4 mm PE film
	Distance between pedestal + sealing machine	480 mm
	Distance between bottom plate + sealing machine (min/max)	700 / 1.200 mm
	Film passage	1.000 mm
	Impulse time	continuously adjustable
	Cooling time	continuously adjustable
	Degree of protection	IP 54
	Connected voltage	400 V three-phase ac, 50/60 Hz
	Fuse	16 A, slow-blow
	Dimensions (W x H x D)	1.300 x 2.100 x 1.300 mm
	Weight	240 kg

u ■>

-a

o> c

» E LZ

Technical and design modifications reserved

The advantages at a glance

• Reduced-volume packaging by air aspiration

• Sealing times are infinitely adjustable

• Triggering of the sealing process by foot switch

• Touchscreen (LCD) for adjustment of the sealing parameters

• Programmable control

• All models also available in stainless steel

• All models can be individually adapted to the customer's requirements

This clamping bar ensures that air no longer flows back Reduction in volume by air suction

into the bag during air suction
