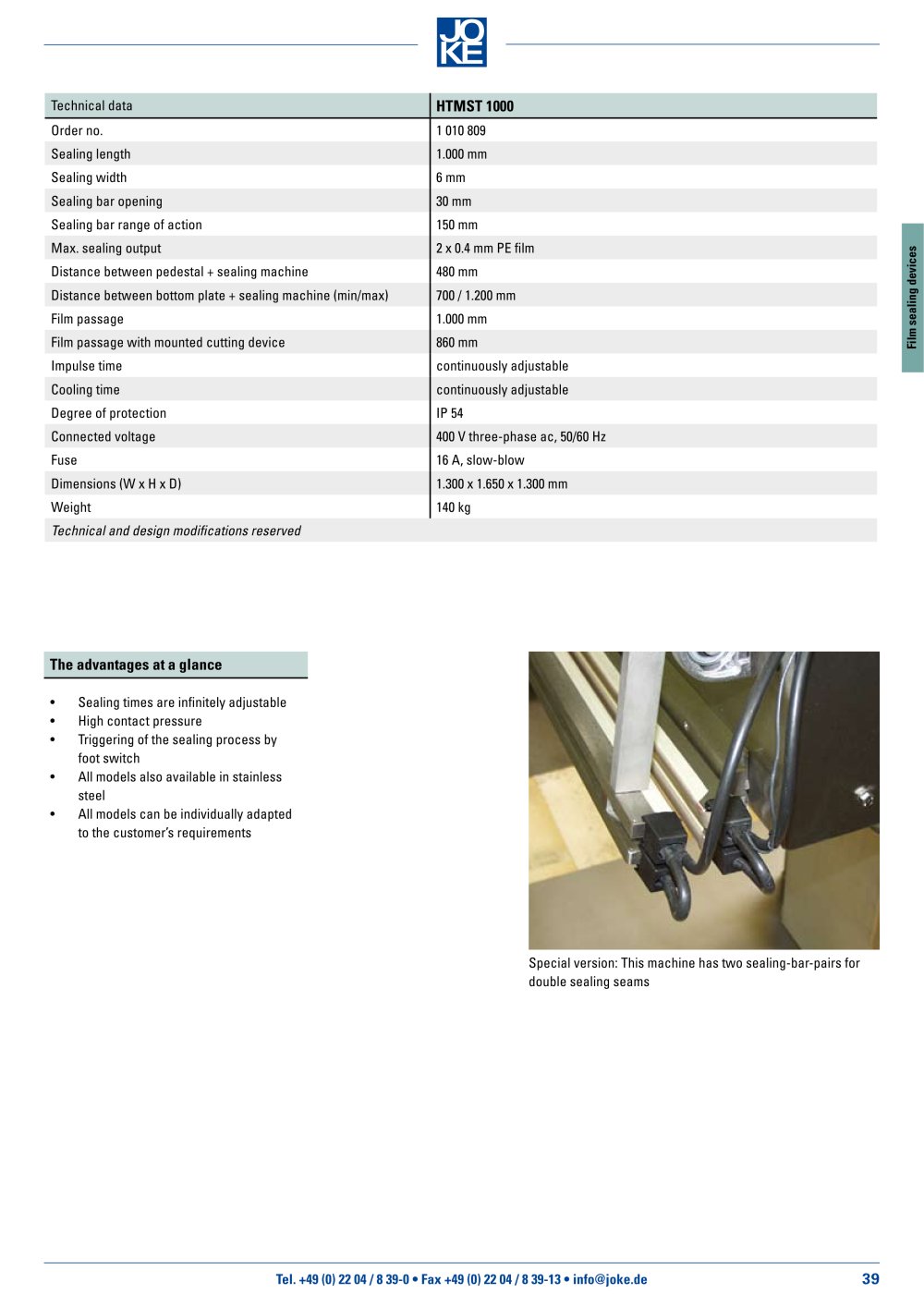

	Technical data	HTMST 1000
	Order no.	1 010 809
	Sealing length	1.000 mm
	Sealing width	6 mm
	Sealing bar opening	30 mm
	Sealing bar range of action	150 mm
	Max. sealing output	2 x 0.4 mm PE film
	Distance between pedestal + sealing machine	480 mm
	Distance between bottom plate + sealing machine (min/max)	700 / 1.200 mm
	Film passage	1.000 mm
	Film passage with mounted cutting device	860 mm
	Impulse time	continuously adjustable
	Cooling time	continuously adjustable
	Degree of protection	IP 54
	Connected voltage	400 V three-phase ac, 50/60 Hz
	Fuse	16 A, slow-blow
	Dimensions (W x H x D)	1.300 x 1.650 x 1.300 mm
	Weight	140 kg

u ■>

-a

o> c

» E LZ

Technical and design modifications reserved

The advantages at a glance

• Sealing times are infinitely adjustable

• High contact pressure

• Triggering of the sealing process by foot switch

• All models also available in stainless steel

• All models can be individually adapted to the customer's requirements

Special version: This machine has two sealing-bar-pairs for double sealing seams
