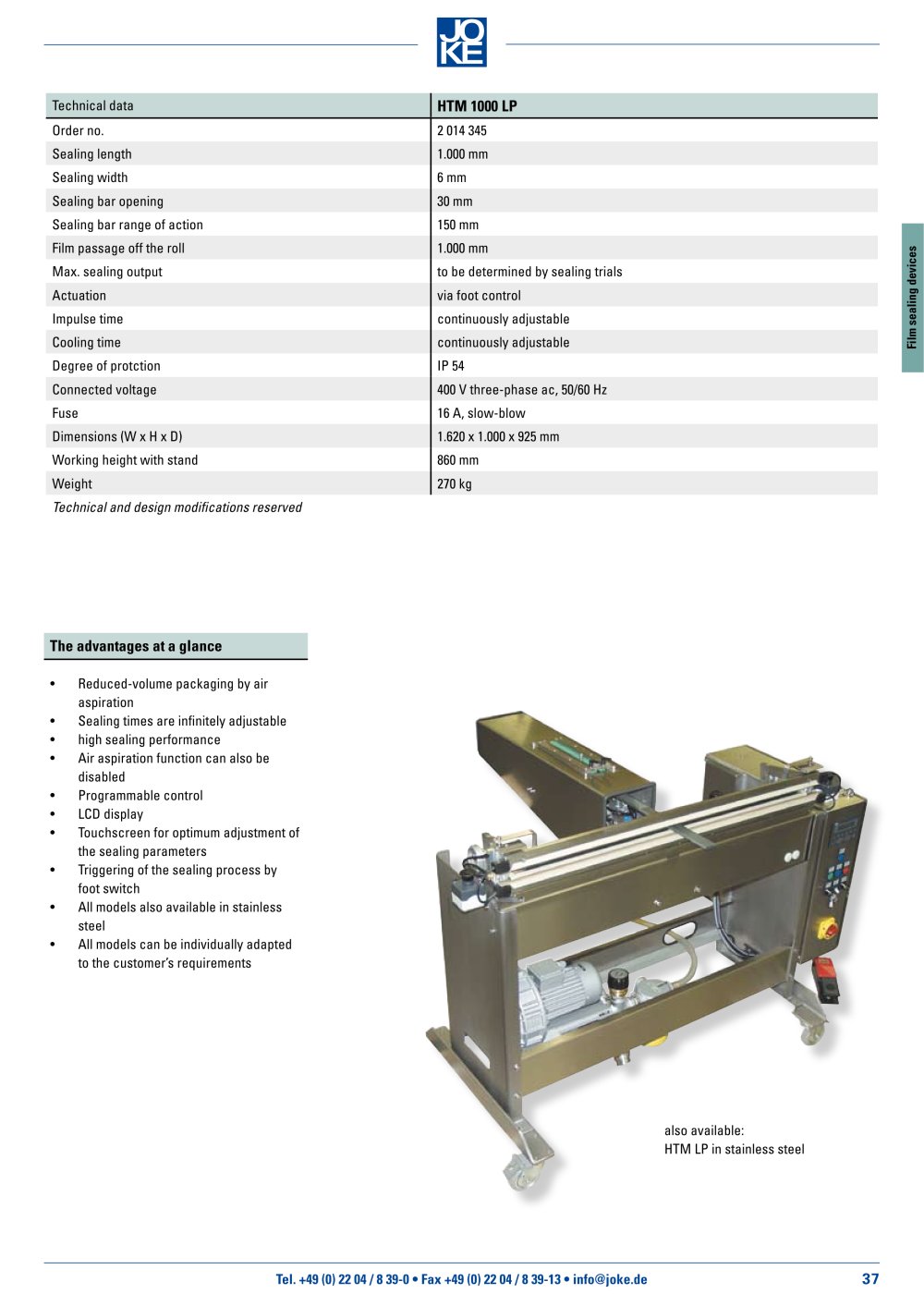

	Technical data	HTM 1000 LP
	Order no.	2 014 345
	Sealing length	1.000 mm
	Sealing width	6 mm
	Sealing bar opening	30 mm
	Sealing bar range of action	150 mm
	Film passage off the roll	1.000 mm
	Max. sealing output	to be determined by sealing trials
	Actuation	via foot control
	Impulse time	continuously adjustable
	Cooling time	continuously adjustable
	Degree of protction	IP 54
	Connected voltage	400 V three-phase ac, 50/60 Hz
	Fuse	16 A, slow-blow
	Dimensions (W x H x D)	1.620 x 1.000 x 925 mm
	Working height with stand	860 mm
	Weight	270 kg

u ■>

-a

o> c

» E LZ

Technical and design modifications reserved

The advantages at a glance

• Reduced-volume packaging by air aspiration

• Sealing times are infinitely adjustable

• high sealing performance

• Air aspiration function can also be disabled

• Programmable control

• LCD display

• Touchscreen for optimum adjustment of the sealing parameters

• Triggering of the sealing process by foot switch

• All models also available in stainless steel

• All models can be individually adapted to the customer's requirements

also available:

HTM LP in stainless steel
