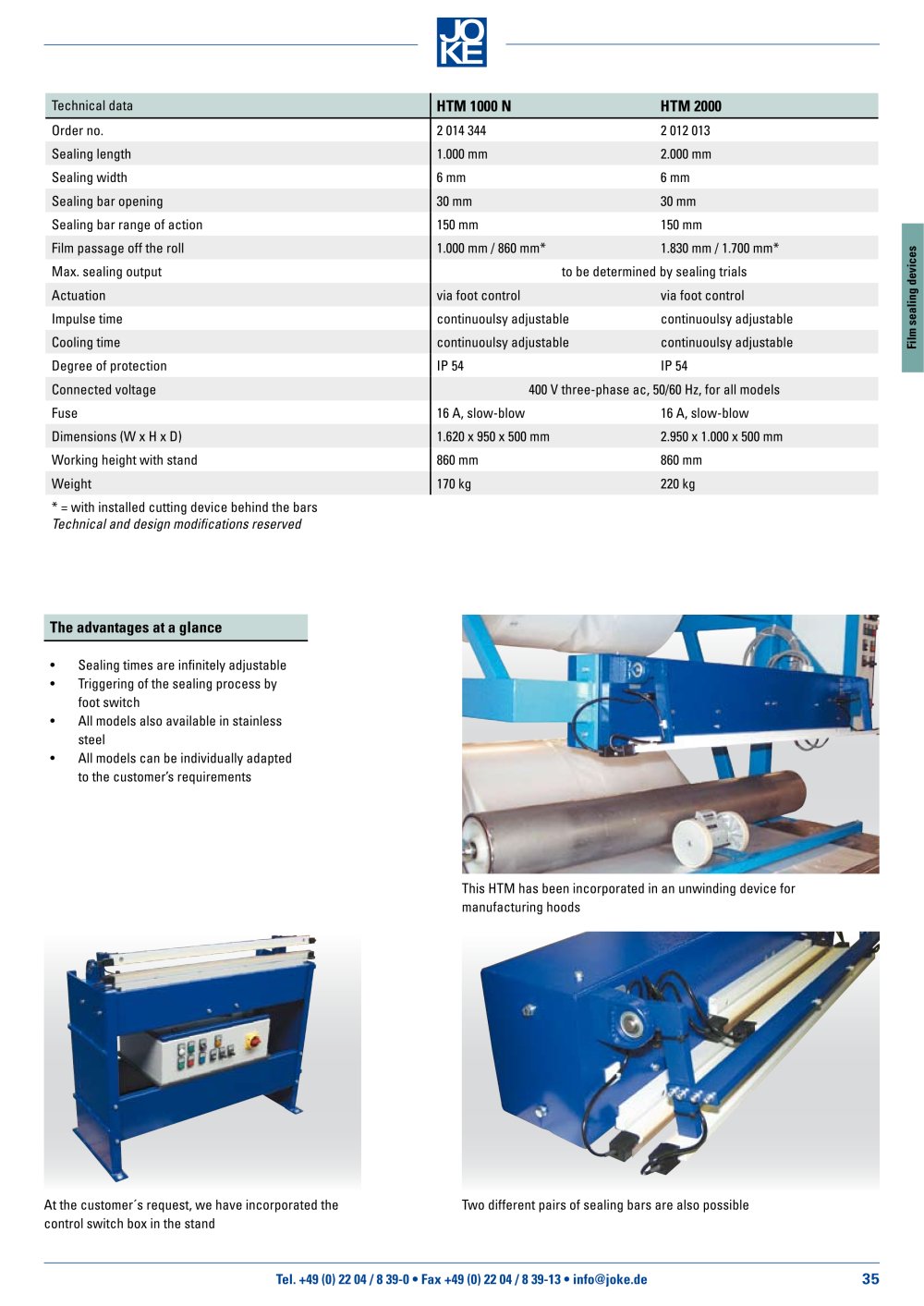

Technical data	HTM 1000 N	HTM 2000
Order no.	2 014 344	2 012 013
Sealing length	1.000 mm	2.000 mm
Sealing width	6 mm	6 mm
Sealing bar opening	30 mm	30 mm
Sealing bar range of action	150 mm	150 mm
Film passage off the roll	1.000 mm / 860 mm*	1.830 mm / 1.700 mm*
Max. sealing output	to be determined by sealing trials
Actuation	via foot control	via foot control
Impulse time	continuoulsy adjustable	continuoulsy adjustable
Cooling time	continuoulsy adjustable	continuoulsy adjustable
Degree of protection	IP 54	IP 54
Connected voltage	400 V three-phase ac, 50/60 Hz, for all models
Fuse	16 A, slow-blow	16 A, slow-blow
Dimensions (W x H x D)	1.620 x 950 x 500 mm	2.950 x 1.000 x 500 mm
Working height with stand	860 mm	860 mm
Weight	170 kg	220 kg

■>

-a

» E LZ

* = with installed cutting device behind the bars Technical and design modifications reserved

The advantages at a glance

• Sealing times are infinitely adjustable

• Triggering of the sealing process by foot switch

• All models also available in stainless steel

• All models can be individually adapted to the customer's requirements
