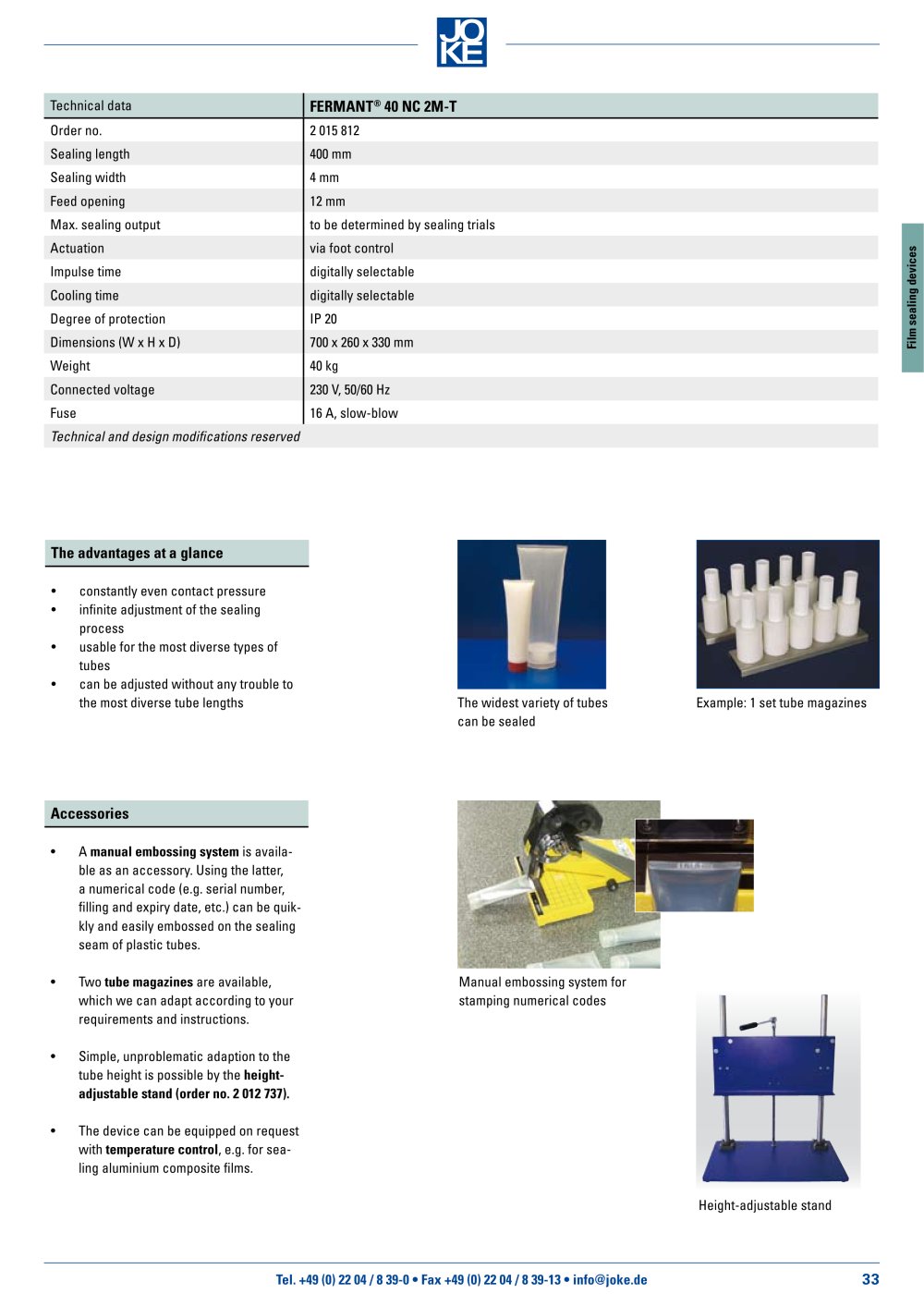

	Technical data	FERMANT® 40 NC 2M-T
	Order no.	2015 812
	Sealing length	400 mm
	Sealing width	4 mm
	Feed opening	12 mm
	Max. sealing output	to be determined by sealing trials
	Actuation	via foot control
	Impulse time	digitally selectable
	Cooling time	digitally selectable
	Degree of protection	IP 20
	Dimensions (W x H x D)	700 x 260 x 330 mm
	Weight	40 kg
	Connected voltage	230 V, 50/60 Hz
	Fuse	16 A, slow-blow

CO (V

o ■>

■o c

"<5

(V CO

E LZ

Technical and design modifications reserved

The advantages at a glance

constantly even contact pressure infinite adjustment of the sealing process

usable for the most diverse types of tubes

can be adjusted without any trouble to the most diverse tube lengths

The widest variety of tubes can be sealed

Example: 1 set tube magazines

Accessories

A manual embossing system is available as an accessory. Using the latter, a numerical code (e.g. serial number, filling and expiry date, etc.) can be quik-kly and easily embossed on the sealing seam of plastic tubes.

Two tube magazines are available, which we can adapt according to your requirements and instructions.

Simple, unproblematic adaption to the tube height is possible by the height-adjustable stand (order no. 2 012 737).

The device can be equipped on request with temperature control, e.g. for sealing aluminium composite films.

Manual embossing system for stamping numerical codes

Height-adjustable stand
