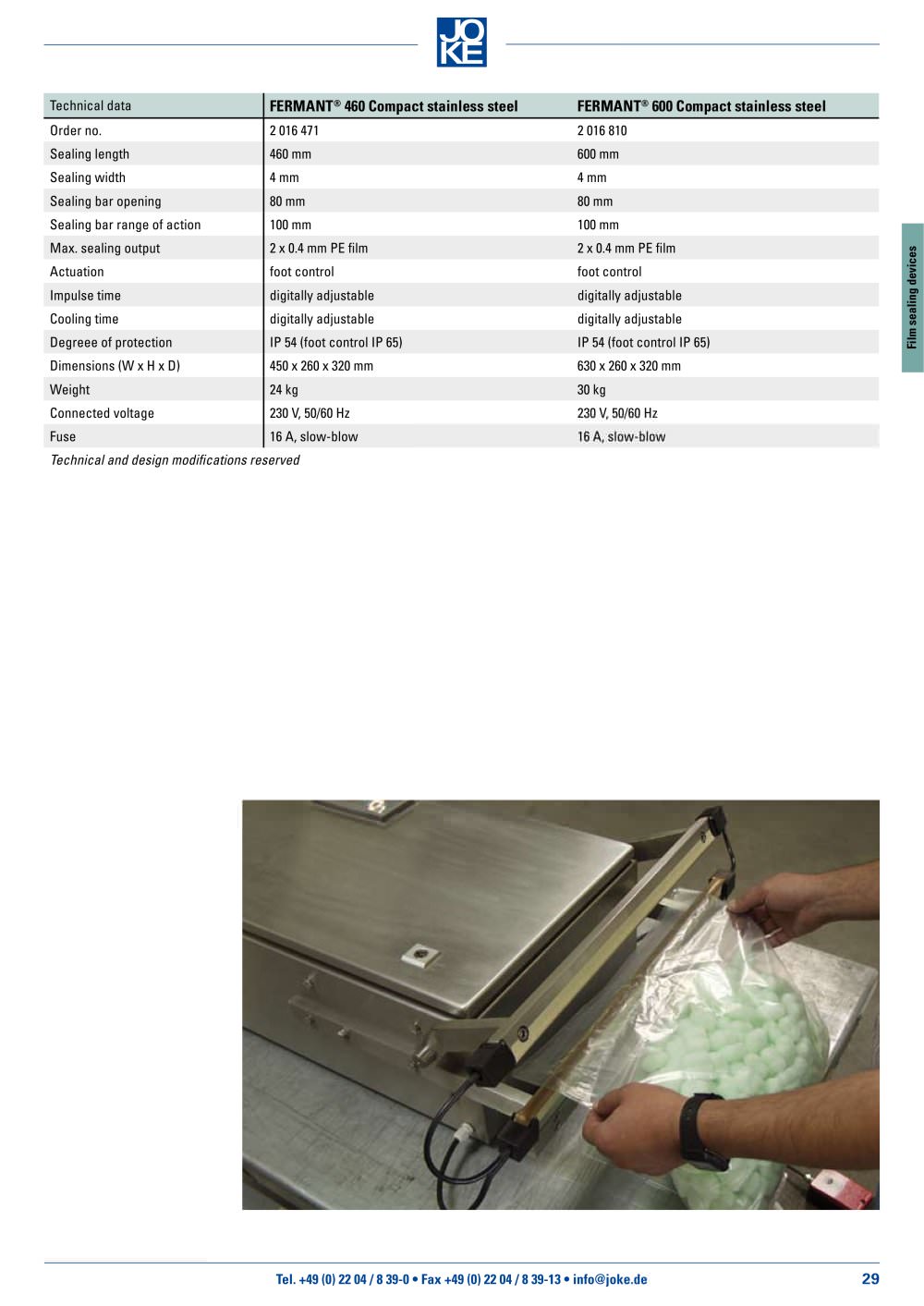

	Technical data	FERMANT® 460 Compact stainless steel	FERMANT® 600 Compact stainless steel
	Order no.	2016 471	2016 810
	Sealing length	460 mm	600 mm
	Sealing width	4 mm	4 mm
	Sealing bar opening	80 mm	80 mm
	Sealing bar range of action	100 mm	100 mm
	Max. sealing output	2 x 0.4 mm PE film	2 x 0.4 mm PE film
	Actuation	foot control	foot control
	Impulse time	digitally adjustable	digitally adjustable
	Cooling time	digitally adjustable	digitally adjustable
	Degreee of protection	IP 54 (foot control IP 65)	IP 54 (foot control IP 65)
	Dimensions (W x H x D)	450 x 260 x 320 mm	630 x 260 x 320 mm
	Weight	24 kg	30 kg
	Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz
	Fuse	16 A, slow-blow	16 A, slow-blow

CO (V

o ■>

(V

■o c

"<5

(V CO

E LE

Technical and design modifications reserved
