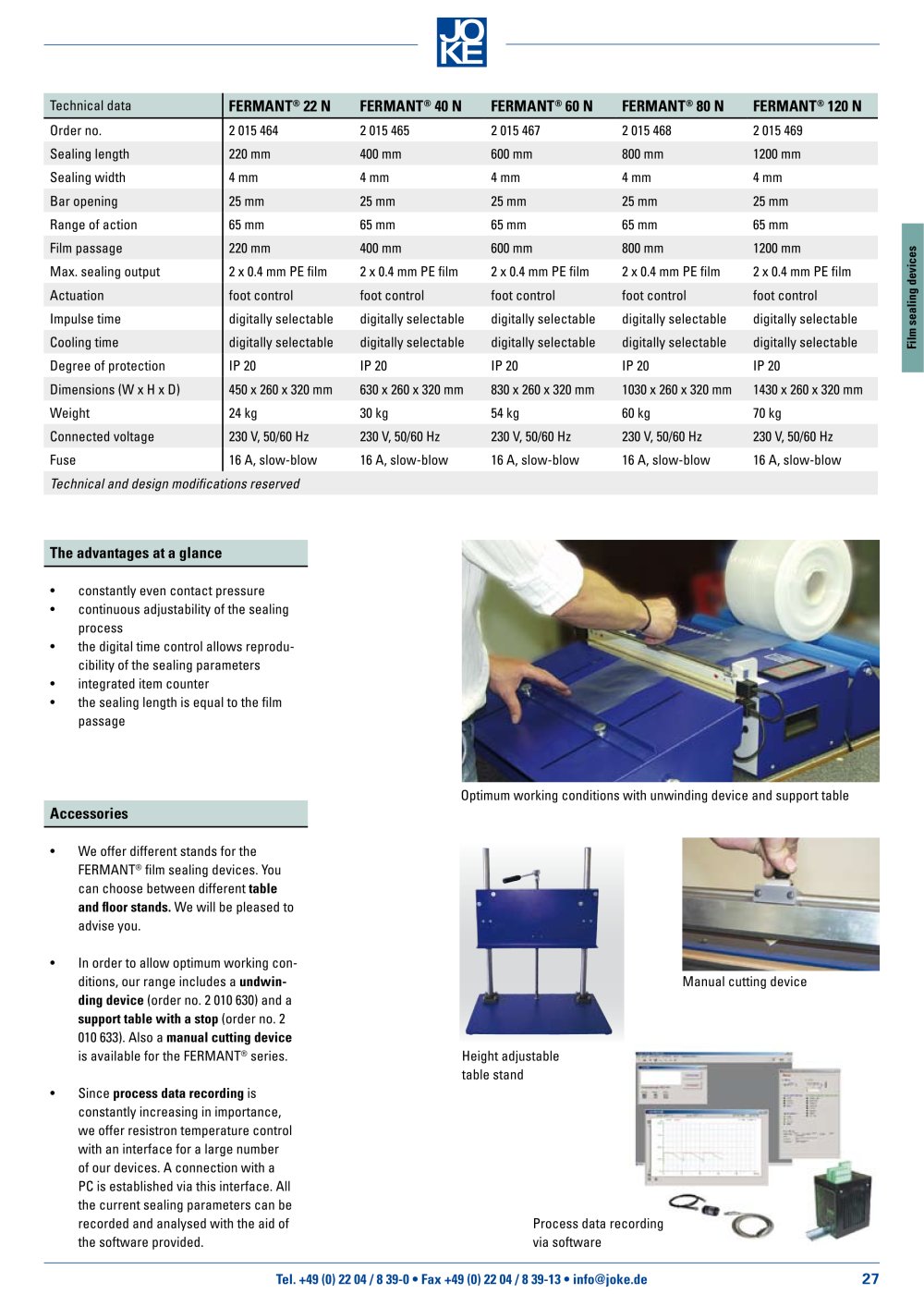

Technical data	FERMANT® 22 N	FERMANT® 40 N	FERMANT® 60 N	FERMANT® 80 N	FERMANT® 120 N
Order no.	2015 464	2 015 465	2015 467	2 015 468	2 015 469
Sealing length	220 mm	400 mm	600 mm	800 mm	1200 mm
Sealing width	4 mm	4 mm	4 mm	4 mm	4 mm
Bar opening	25 mm	25 mm	25 mm	25 mm	25 mm
Range of action	65 mm	65 mm	65 mm	65 mm	65 mm
Film passage	220 mm	400 mm	600 mm	800 mm	1200 mm
Max. sealing output	2 x 0.4 mm PE film	2 x 0.4 mm PE film	2 x 0.4 mm PE film	2 x 0.4 mm PE film	2 x 0.4 mm PE film
Actuation	foot control	foot control	foot control	foot control	foot control
Impulse time	digitally selectable	digitally selectable	digitally selectable	digitally selectable	digitally selectable
Cooling time	digitally selectable	digitally selectable	digitally selectable	digitally selectable	digitally selectable
Degree of protection	IP 20	IP 20	IP 20	IP 20	IP 20
Dimensions (W x H x D)	450 x 260 x 320 mm	630 x 260 x 320 mm	830 x 260 x 320 mm	1030 x 260 x 320 mm	1430 x 260 x 320 mm
Weight	24 kg	30 kg	54 kg	60 kg	70 kg
Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Fuse	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow

u ■>

-a

o> c

» E LZ

Technical and design modifications reserved

The advantages at a glance

• constantly even contact pressure

• continuous adjustability of the sealing process

• the digital time control allows reprodu-cibility of the sealing parameters

• integrated item counter

• the sealing length is equal to the film passage

Optimum working conditions with unwinding device and support table

Accessories

• We offer different stands for the FERMANT® film sealing devices. You can choose between different table and floor stands. We will be pleased to advise you.

• In order to allow optimum working conditions, our range includes a undwin-ding device (order no. 2 010 630) and a support table with a stop (order no. 2 010 633). Also a manual cutting device is available for the FERMANT® series.

• Since process data recording is

constantly increasing in importance, we offer resistron temperature control with an interface for a large number of our devices. A connection with a PC is established via this interface. All the current sealing parameters can be recorded and analysed with the aid of the software provided.

Manual cutting device

Height adjustable table stand

Process data recording via software
