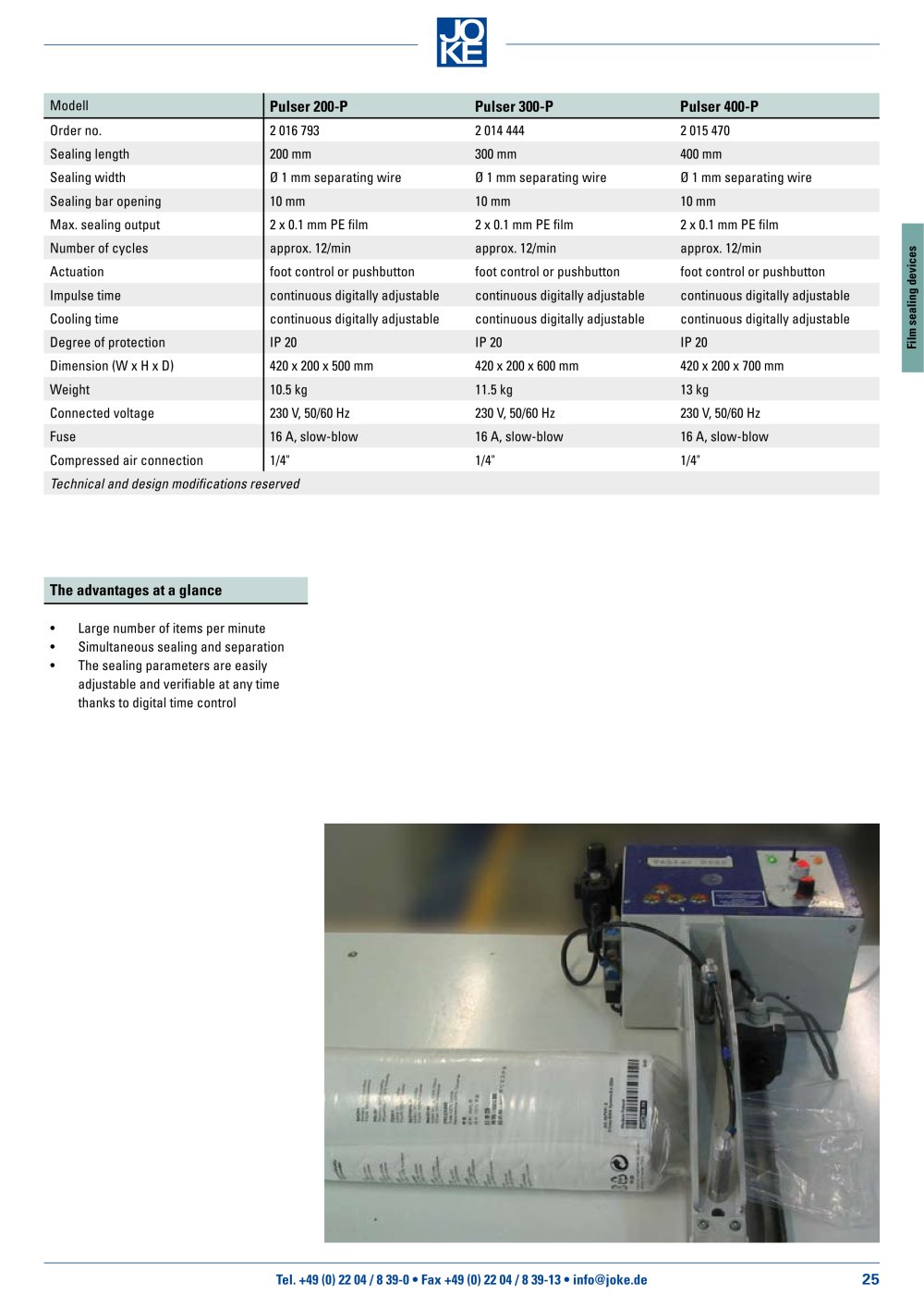

Modell	Pulser 200-P	Pulser 300-P	Pulser 400-P
Order no.	2016793	2 014 444	2 015 470
Sealing length	200 mm	300 mm	400 mm
Sealing width	0 1 mm separating wire	0 1 mm separating wire	0 1 mm separating wire
Sealing bar opening	10 mm	10 mm	10 mm
Max. sealing output	2 x 0.1 mm PE film	2 x 0.1 mm PE film	2 x 0.1 mm PE film
Number of cycles	approx. 12/min	approx. 12/min	approx. 12/min
Actuation	foot control or pushbutton	foot control or pushbutton	foot control or pushbutton
Impulse time	continuous digitally adjustable	continuous digitally adjustable	continuous digitally adjustable
Cooling time	continuous digitally adjustable	continuous digitally adjustable	continuous digitally adjustable
Degree of protection	IP 20	IP 20	IP 20
Dimension (W x H x D)	420 x 200 x 500 mm	420 x 200 x 600 mm	420 x 200 x 700 mm
Weight	10.5 kg	11.5 kg	13 kg
Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Fuse	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow
Compressed air connection	1/4"	1/4"	1/4"

CO 0)

o ■> ■o

c "<5

E LZ

Technical and design modifications reserved

The advantages at a glance

• Large number of items per minute

• Simultaneous sealing and separation

• The sealing parameters are easily adjustable and verifiable at any time thanks to digital time control
