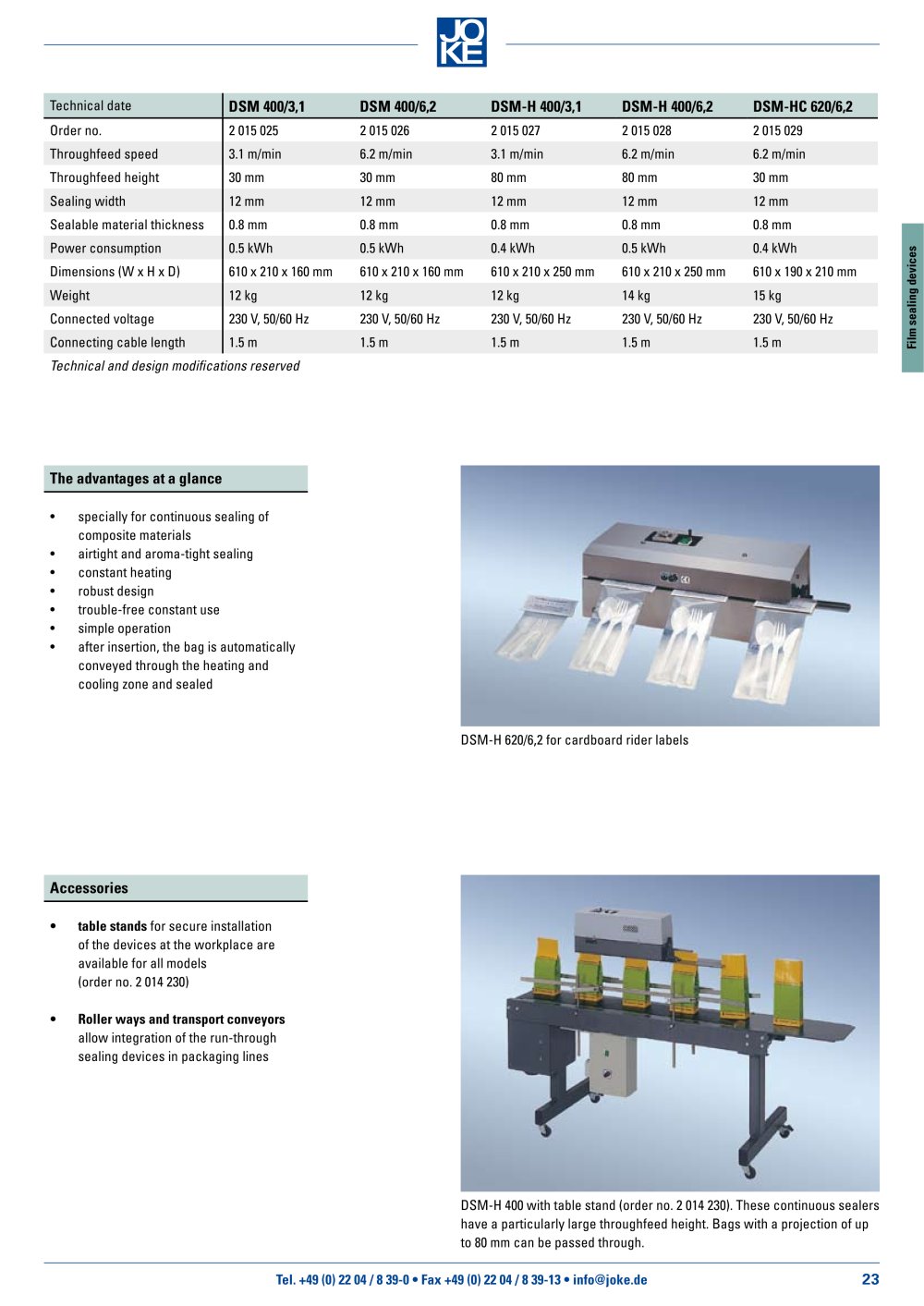

Technical date	DSM 400/3,1	DSM 400/6,2	DSM-H 400/3,1	DSM-H 400/6,2	DSM-HC 620/6,2
Order no.	2015 025	2 015 026	2015 027	2015 028	2015 029
Throughfeed speed	3.1 m/min	6.2 m/min	3.1 m/min	6.2 m/min	6.2 m/min
Throughfeed height	30 mm	30 mm	80 mm	80 mm	30 mm
Sealing width	12 mm	12 mm	12 mm	12 mm	12 mm
Sealable material thickness	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Power consumption	0.5 kWh	0.5 kWh	0.4 kWh	0.5 kWh	0.4 kWh
Dimensions (W x H x D)	610 x 210 x 160 mm	610 x 210 x 160 mm	610 x 210 x 250 mm	610 x 210 x 250 mm	610 x 190 x 210 mm
Weight	12 kg	12 kg	12 kg	14 kg	15 kg
Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Connecting cable length	1.5 m	1.5 m	1.5 m	1.5 m	1.5 m

■>

-a

"<5

» E LZ

Technical and design modifications reserved

The advantages at a glance

• specially for continuous sealing of composite materials

• airtight and aroma-tight sealing

• constant heating

• robust design

• trouble-free constant use

• simple operation

• after insertion, the bag is automatically conveyed through the heating and cooling zone and sealed

DSM-H 620/6,2 for cardboard rider labels

Accessories

• table stands for secure installation of the devices at the workplace are available for all models

(order no. 2 014 230)

• Roller ways and transport conveyors

allow integration of the run-through sealing devices in packaging lines

DSM-H 400 with table stand (order no. 2 014 230). These continuous sealers have a particularly large throughfeed height. Bags with a projection of up to 80 mm can be passed through.
