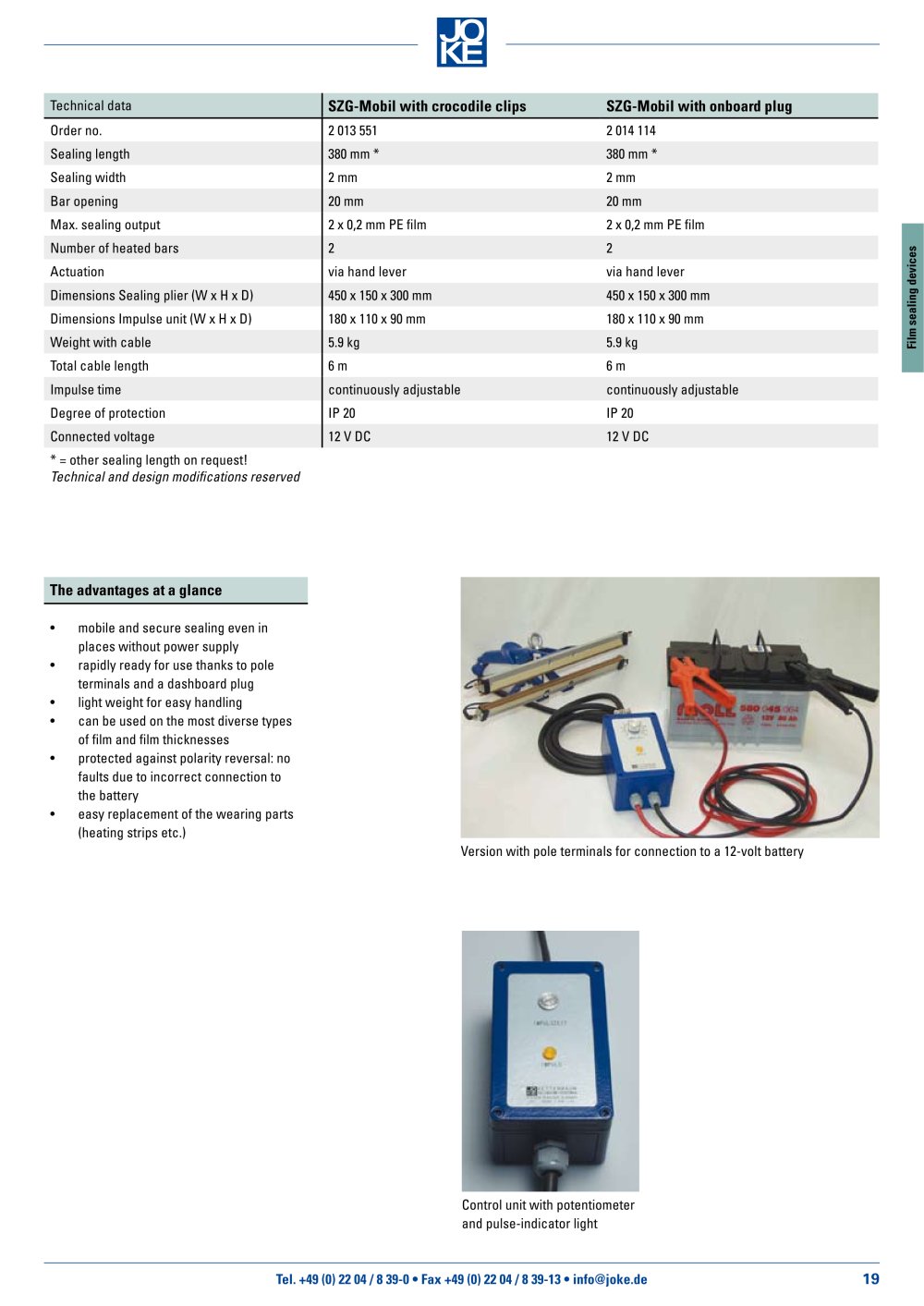

Technical data	SZG-Mobil with crocodile clips	SZG-Mobil with onboard plug
Order no.	2 013 551	2014 114
Sealing length	380 mm *	380 mm *
Sealing width	2 mm	2 mm
Bar opening	20 mm	20 mm
Max. sealing output	2 x 0,2 mm PE film	2 x 0,2 mm PE film
Number of heated bars	2	2
Actuation	via hand lever	via hand lever
Dimensions Sealing plier (W x H x D)	450 x 150 x 300 mm	450 x 150 x 300 mm
Dimensions Impulse unit (W x H x D)	180 x 110 x 90 mm	180 x 110 x 90 mm
Weight with cable	5.9 kg	5.9 kg
Total cable length	6 m	6 m
Impulse time	continuously adjustable	continuously adjustable
Degree of protection	IP 20	IP 20
Connected voltage	12 V DC	12 V DC

u ■>

-a

o> c

» E LZ

* = other sealing length on request! Technical and design modifications reserved

The advantages at a glance

• mobile and secure sealing even in places without power supply

• rapidly ready for use thanks to pole terminals and a dashboard plug

• light weight for easy handling

• can be used on the most diverse types of film and film thicknesses

• protected against polarity reversal: no faults due to incorrect connection to the battery

• easy replacement of the wearing parts (heating strips etc.)

Version with pole terminals for connection to a 12-volt battery

Control unit with potentiometer and pulse-indicator light
