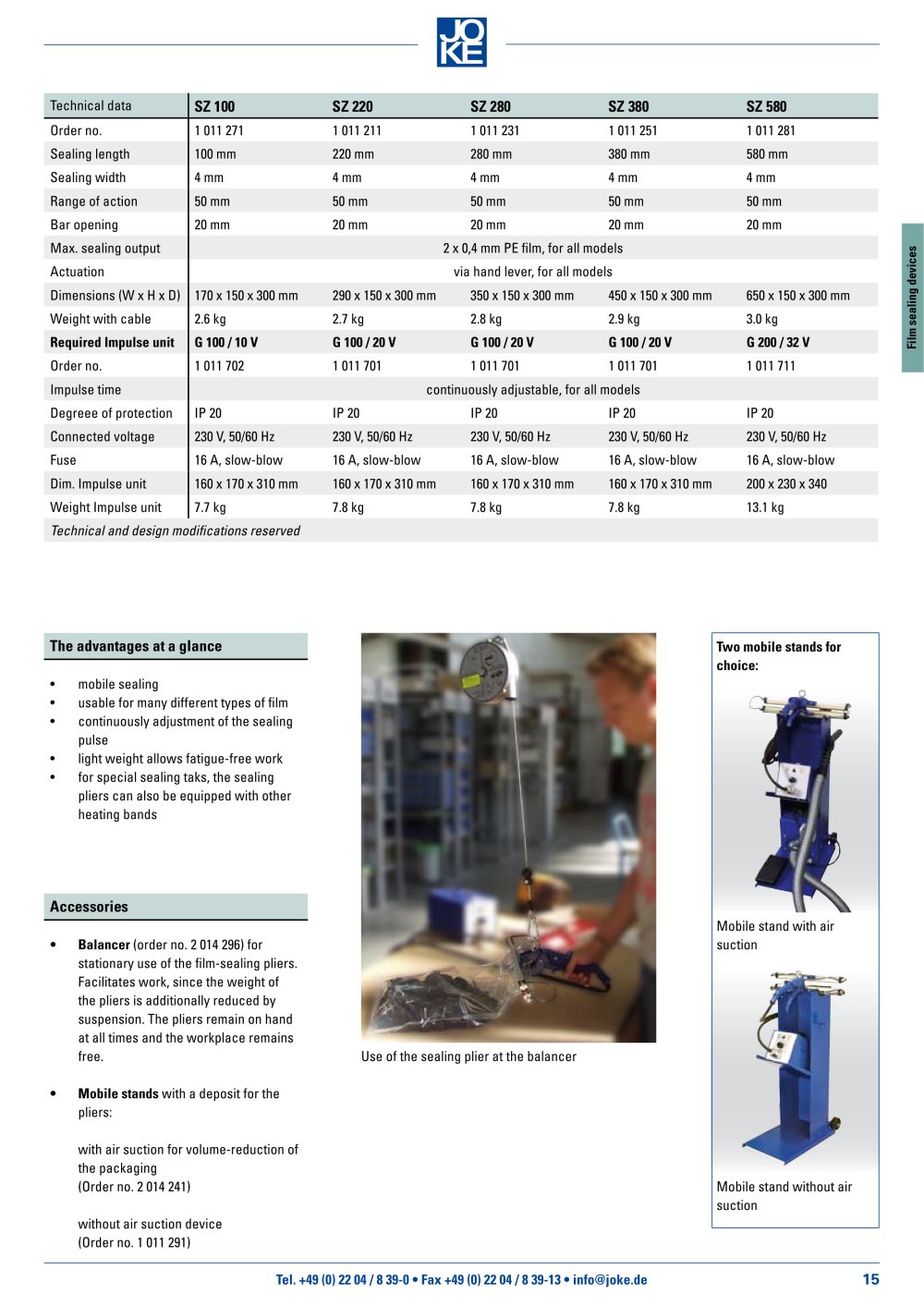

Technical data	SZ 100	SZ 220	SZ 280	SZ 380	SZ 580
Order no.	1 011 271	1 011 211	1 011 231	1 011 251	1 011 281
Sealing length	100 mm	220 mm	280 mm	380 mm	580 mm
Sealing width	4 mm	4 mm	4 mm	4 mm	4 mm
Range of action	50 mm	50 mm	50 mm	50 mm	50 mm
Bar opening	20 mm	20 mm	20 mm	20 mm	20 mm
Max. sealing output			2 x 0,4 mm PE film, for all models
Actuation			via hand lever, for all models
Dimensions (W x H x D)	170 x 150 x 300 mm	290 x 150 x 300 mm	350 x 150 x 300 mm	450 x 150 x 300 mm	650 x 150 x 300 mm
Weight with cable	2.6 kg	2.7 kg	2.8 kg	2.9 kg	3.0 kg
Required Impulse unit	G 100 / 10 V	G 100 / 20 V	G 100 / 20 V	G 100 / 20 V	G 200 / 32 V
Order no.	1 011 702	1 011 701	1 011 701	1 011 701	1 011 711
Impulse time		continuously adjustable, for all models
Degreee of protection	IP 20	IP 20	IP 20	IP 20	IP 20
Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Fuse	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow
Dim. Impulse unit	160 x 170 x 310 mm	160 x 170 x 310 mm	160 x 170 x 310 mm	160 x 170 x 310 mm	200 x 230 x 340
Weight Impulse unit	7.7 kg	7.8 kg	7.8 kg	7.8 kg	13.1 kg

■>

-a

"<5

» E LZ

Technical and design modifications reserved

The advantages at a glance

• mobile sealing

• usable for many different types of film

• continuously adjustment of the sealing pulse

• light weight allows fatigue-free work

• for special sealing taks, the sealing pliers can also be equipped with other heating bands

Accessories

Balancer (order no. 2 014 296) for stationary use of the film-sealing pliers. Facilitates work, since the weight of the pliers is additionally reduced by suspension. The pliers remain on hand at all times and the workplace remains free.

Mobile stands with a deposit for the pliers:

with air suction for volume-reduction of the packaging (Order no. 2 014 241)

without air suction device

(Order no. 1 011 291)

Use of the sealing plier at the balancer
