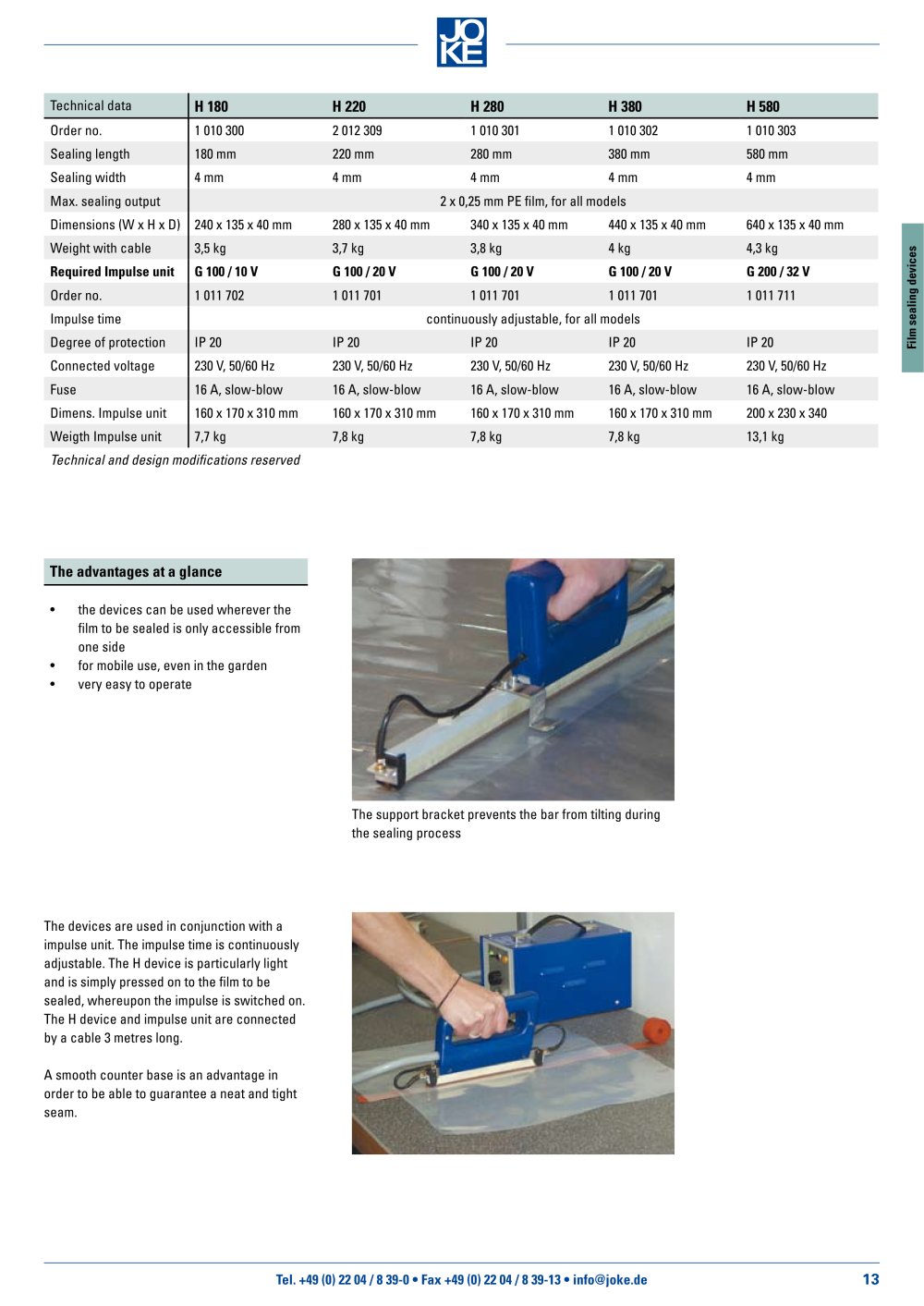

Technical data	H 180	H 220	H 280	H 380	H 580
Order no.	1 010300	2 012 309	1 010301	1 010302	1 010303
Sealing length	180 mm	220 mm	280 mm	380 mm	580 mm
Sealing width	4 mm	4 mm	4 mm	4 mm	4 mm
Max. sealing output			2 x 0,25 mm PE film, for all models
Dimensions (W x H x D)	240 x 135 x 40 mm	280 x 135 x 40 mm	340 x 135 x 40 mm	440 x 135 x 40 mm	640 x 135 x 40 mm
Weight with cable	3,5 kg	3,7 kg	3,8 kg	4 kg	4,3 kg
Required Impulse unit	G 100 / 10 V	G 100 / 20 V	G 100 / 20 V	G 100 / 20 V	G 200 / 32 V
Order no.	1 011 702	1 011 701	1 011 701	1 011 701	1 011 711
Impulse time		continuously adjustable, for all models
Degree of protection	IP 20	IP 20	IP 20	IP 20	IP 20
Connected voltage	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz	230 V, 50/60 Hz
Fuse	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow	16 A, slow-blow
Dimens. Impulse unit	160 x 170 x 310 mm	160 x 170 x 310 mm	160 x 170 x 310 mm	160 x 170 x 310 mm	200 x 230 x 340
Weigth Impulse unit	7,7 kg	7,8 kg	7,8 kg	7,8 kg	13,1 kg

■>

-a

» E LZ

Technical and design modifications reserved

The advantages at a glance

• the devices can be used wherever the film to be sealed is only accessible from one side

• for mobile use, even in the garden

• very easy to operate

The support bracket prevents the bar from tilting during the sealing process

The devices are used in conjunction with a impulse unit. The impulse time is continuously adjustable. The H device is particularly light and is simply pressed on to the film to be sealed, whereupon the impulse is switched on. The H device and impulse unit are connected by a cable 3 metres long.

A smooth counter base is an advantage in order to be able to guarantee a neat and tight seam.
