319
3 D
T
L1
d
3,0
Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de

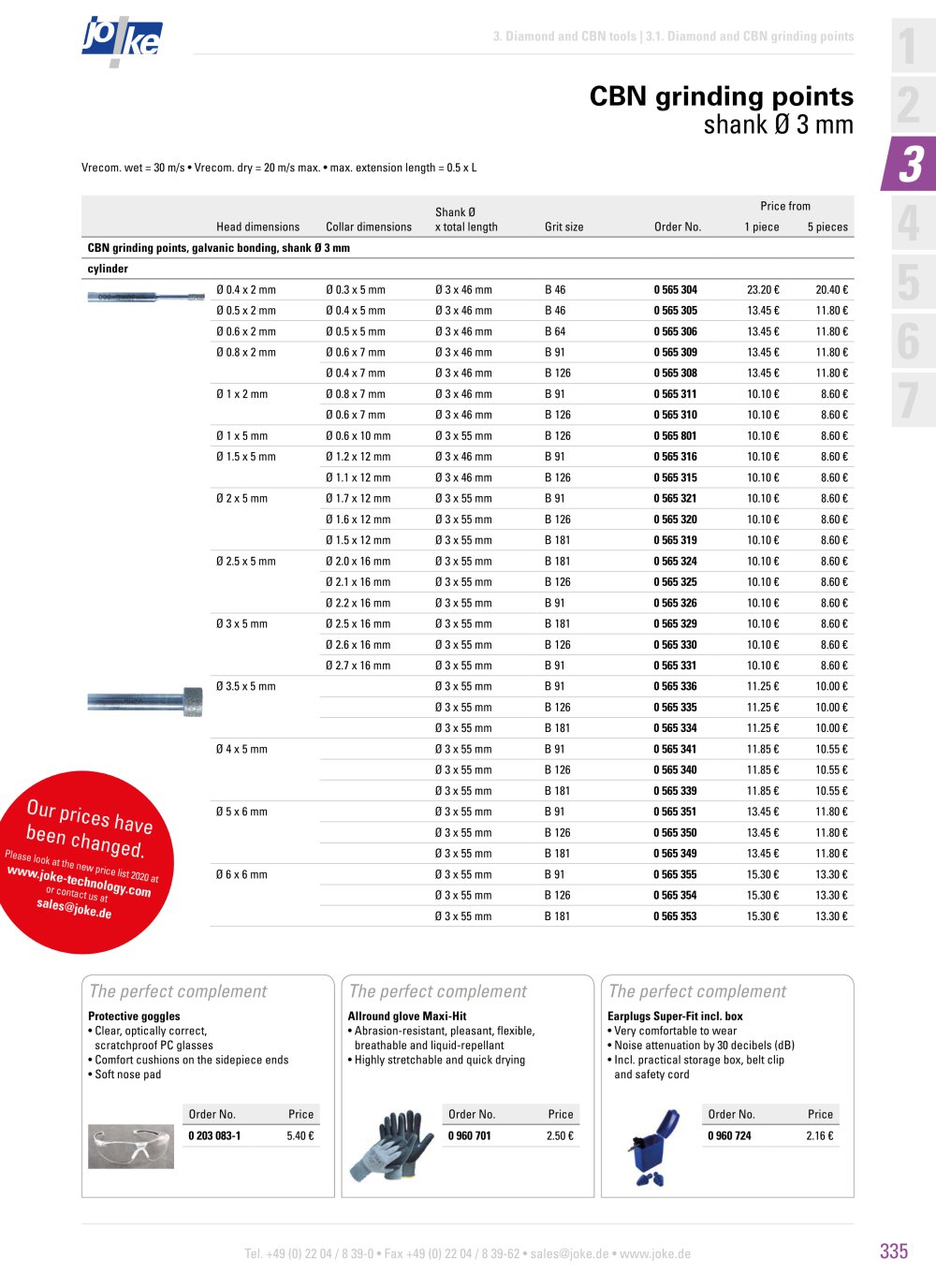

3. Diamond and CBN tools // 3.1. Diamond and CBN grinding points
Diamond grinding points, solid tungsten carbide
shank Ø 3 mm
Diamond grinding points, solide tungsten carbide,
galvanic bonding, shank Ø 3 mm
Head dimensions
D x T
Neck dimensions
d x L1
Shank Ø x total
length
Grit
size
Order No. Price from
5 pieces
Price from
1 piece
Ø 1.8 x 4.0 Ø 1.6 x 15 Ø 3 x 40 D 76 0 560 085
Ø 1.5 x 15 Ø 3 x 40 D 107 0 560 086
Ø 1.5 x 15 Ø 3 x 40 D 151 0 560 087
Ø 1.9 x 4.0 Ø 1.7 x 15 Ø 3 x 40 D 76 0 560 088
Ø 1.6 x 15 Ø 3 x 40 D 107 0 560 089
Ø 1.6 x 15 Ø 3 x 40 D 151 0 560 090
Ø 2.0 x 5.0 Ø 1.8 x 15 Ø 3 x 40 D 76 0 560 091
Ø 1.7 x 15 Ø 3 x 40 D 107 0 560 092
Ø 1.7 x 15 Ø 3 x 40 D 151 0 560 093
Ø 2.1 x 5.0 Ø 1.9 x 15 Ø 3 x 40 D 76 0 560 094
Ø 1.8 x 15 Ø 3 x 40 D 107 0 560 095
Ø 1.8 x 15 Ø 3 x 40 D 151 0 560 096
Ø 2.2 x 5.0 Ø 2.0 x 15 Ø 3 x 40 D 76 0 560 097
Ø 1.9 x 16 Ø 3 x 40 D 107 0 560 098
Ø 1.9 x 16 Ø 3 x 40 D 151 0 560 099
Ø 2.3 x 5.0 Ø 2.1 x 16 Ø 3 x 40 D 76 0 560 100
Ø 2.0 x 16 Ø 3 x 40 D 107 0 560 101
Ø 2.0 x 15 Ø 3 x 40 D 151 0 560 102
Ø 2.4 x 5.0 Ø 2.2 x 16 Ø 3 x 40 D 76 0 560 103
Ø 2.1 x 16 Ø 3 x 40 D 107 0 560 104
Ø 2.1 x 16 Ø 3 x 40 D 151 0 560 105
Ø 2.5 x 5.0 Ø 2.3 x 16 Ø 3 x 40 D 76 0 560 106
Ø 2.2 x 16 Ø 3 x 40 D 107 0 560 107
Ø 2.2 x 16 Ø 3 x 40 D 151 0 560 108
Ø 2.6 x 5.0 Ø 2.4 x 16 Ø 3 x 40 D 76 0 560 109
Ø 2.3 x 16 Ø 3 x 40 D 107 0 560 110
Ø 2.3 x 16 Ø 3 x 40 D 151 0 560 111
Ø 2.7 x 5.0 Ø 2.5 x 17 Ø 3 x 40 D 76 0 560 112
Ø 2.4 x 16 Ø 3 x 40 D 107 0 560 113
Ø 2.4 x 16 Ø 3 x 40 D 151 0 560 114
Ø 2.8 x 5.0 Ø 2.6 x 17 Ø 3 x 40 D 76 0 560 115
Ø 2.5 x 17 Ø 3 x 40 D 107 0 560 116
Ø 2.5 x 16 Ø 3 x 40 D 151 0 560 117
Ø 2.9 x 5.0 Ø 2.7 x 17 Ø 3 x 40 D 76 0 560 118
Ø 2.6 x 17 Ø 3 x 40 D 107 0 560 119
Ø 2.6 x 17 Ø 3 x 40 D 151 0 560 120
Ø 3.0 x 5.0 Ø 2.8 x 17 Ø 3 x 40 D 76 0 560 121
Ø 2.7 x 17 Ø 3 x 40 D 107 0 560 122
Ø 2.7 x 17 Ø 3 x 40 D 151 0 560 123
All measurements in mm
