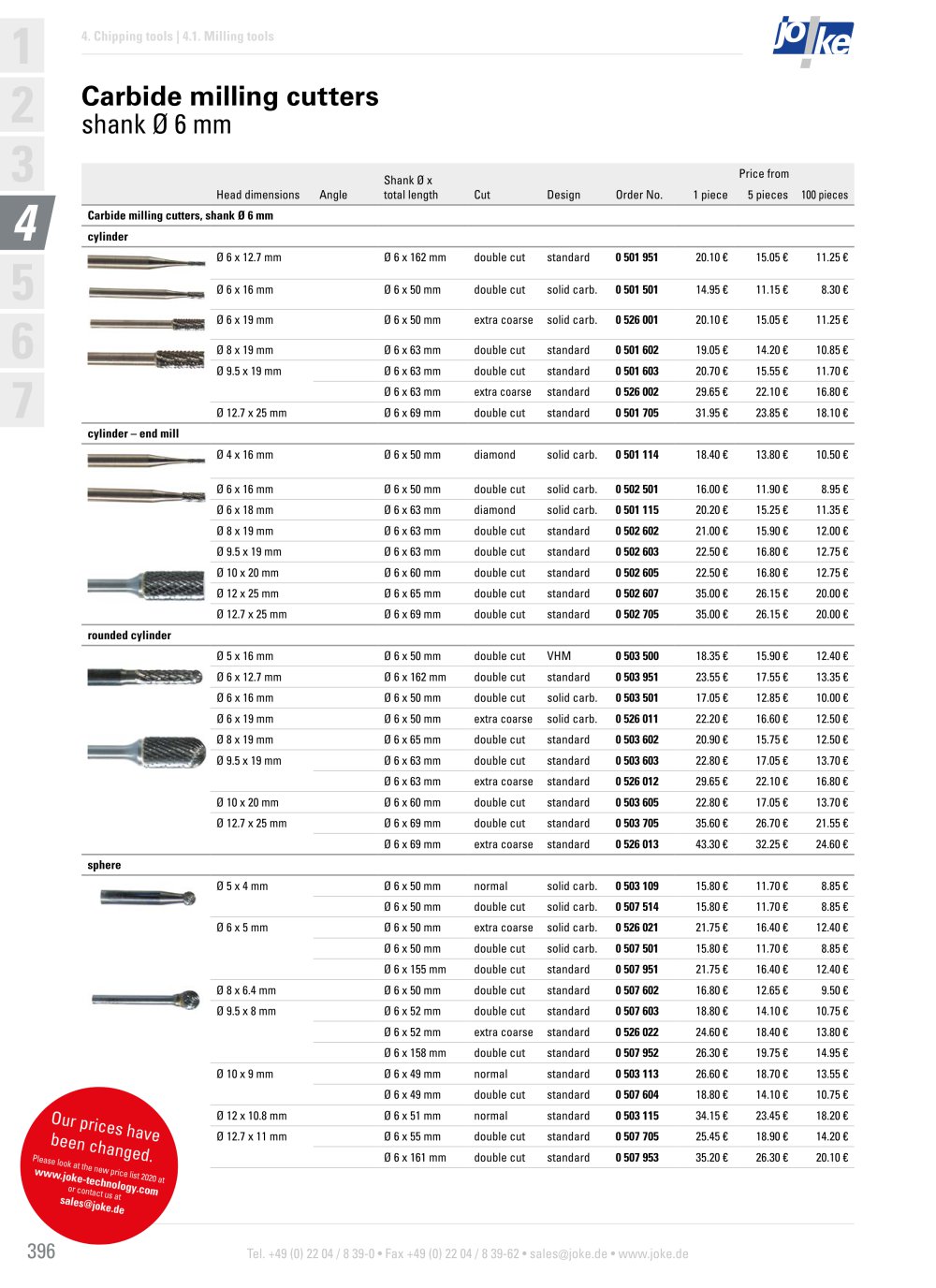

404 4 2,35 3,0 6,0 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 4. Chipping tools // 4.1. Milling tools Tungsten carbide milling cutters shank Ø 6 mm Pointed arch • Pointed cone • Round cone • Trapeze •Drop for further shapes see following page! NEW! = new product! Tungsten carbide milling cutters, shank Ø 6 mm Head dimensions mm Shank Ø x total length Cut Design Order No. Price from 5 pieces Price from 1 piece Pointed arch Ø 6.0 x 12.0 Ø 6 x 162 Double Standard 0 505 951 Ø 6.0 x 16.0 Ø 6 x 50 Double Solid carb. 0 505 501 Ø 6 x 50 Normal Solid carb. 0 503 260 Ø 9.5 x 19.0 Ø 6 x 169 Double Standard 0 505 952 Ø 12.7 x 25.0 Ø 6 x 69 Double Standard 0 505 705 Ø 6 x 69 Normal Standard 0 503 266 Ø 16.0 x 25.0 Ø 6 x 69 Double Standard 0 505 706 Pointed cone Ø 6.0 x 19.0 / 14° Ø 6 x 50 Double Solid carb. 0 508 502 Ø 6 x 50 Normal Solid carb. 0 503 294 Ø 9.5 x 16.0 / 28° Ø 6 x 60 Double Standard 0 508 604 Ø 6 x 60 Normal Standard 0 503 296 Ø 12.7 x 22.0 / 28° Ø 6 x 69 Double Standard 0 508 705 Ø 6 x 69 Normal Standard 0 508 706 Ø 16.0 x 25.0 / 31° Ø 6 x 73 Double Standard 0 508 707 Round cone Ø 6.0 x 16.0 / 14° Ø 6 x 50 Double Solid carb. 0 509 501 Ø 6 x 50 Normal Solid carb. 0 503 279 Ø 6 x 166 Double Standard 0 509 951 Ø 8.0 x 22.0 / 14° Ø 6 x 69 Double Standard 0 509 603 Ø 6 x 69 Normal Standard 0 503 280 Ø 9.5 x 27.0 / 14° Ø 6 x 74 Double Standard 0 509 604 Ø 6 x 74 Normal Standard 0 503 281 Ø 6 x 74 Extra coarse Standard 0 526 051 Ø 12.7 x 28.0 / 14° Ø 6 x 76 Double Standard 0 509 704 Ø 6 x 76 Normal Standard 0 503 282 Ø 6 x 76 Extra coarse Standard 0 526 052 Ø 6 x 178 Double Standard 0 509 953 Ø 16.0 x 30.0 / 14° Ø 6 x 77 Double Standard 0 509 705 Ø 6 x 77 Extra coarse Standard 0 526 053 Trapeze Ø 12.7 x 12.7 / 28° Ø 6 x 57 Double Standard 0 513 703 Ø 6 x 57 Normal Standard 0 503 305 Ø 16 x 19 / 18° Ø 6 x 63 Double Standard 0 513 704 Drop Ø 6.0 x 9.5 Ø 6 x 50 Double Solid carb. 0 506 501 Ø 6 x 50 Normal Solid carb. 0 503 217 Ø 6 x 159 Double Standard 0 506 951 Ø 9.5 x 16.0 Ø 6 x 60 Double Standard 0 506 603 Ø 6 x 60 Normal Standard 0 503 218 Ø 6 x 60 Extra coarse Standard 0 526 031 Ø 6 x 166 Double Standard 0 506 952
