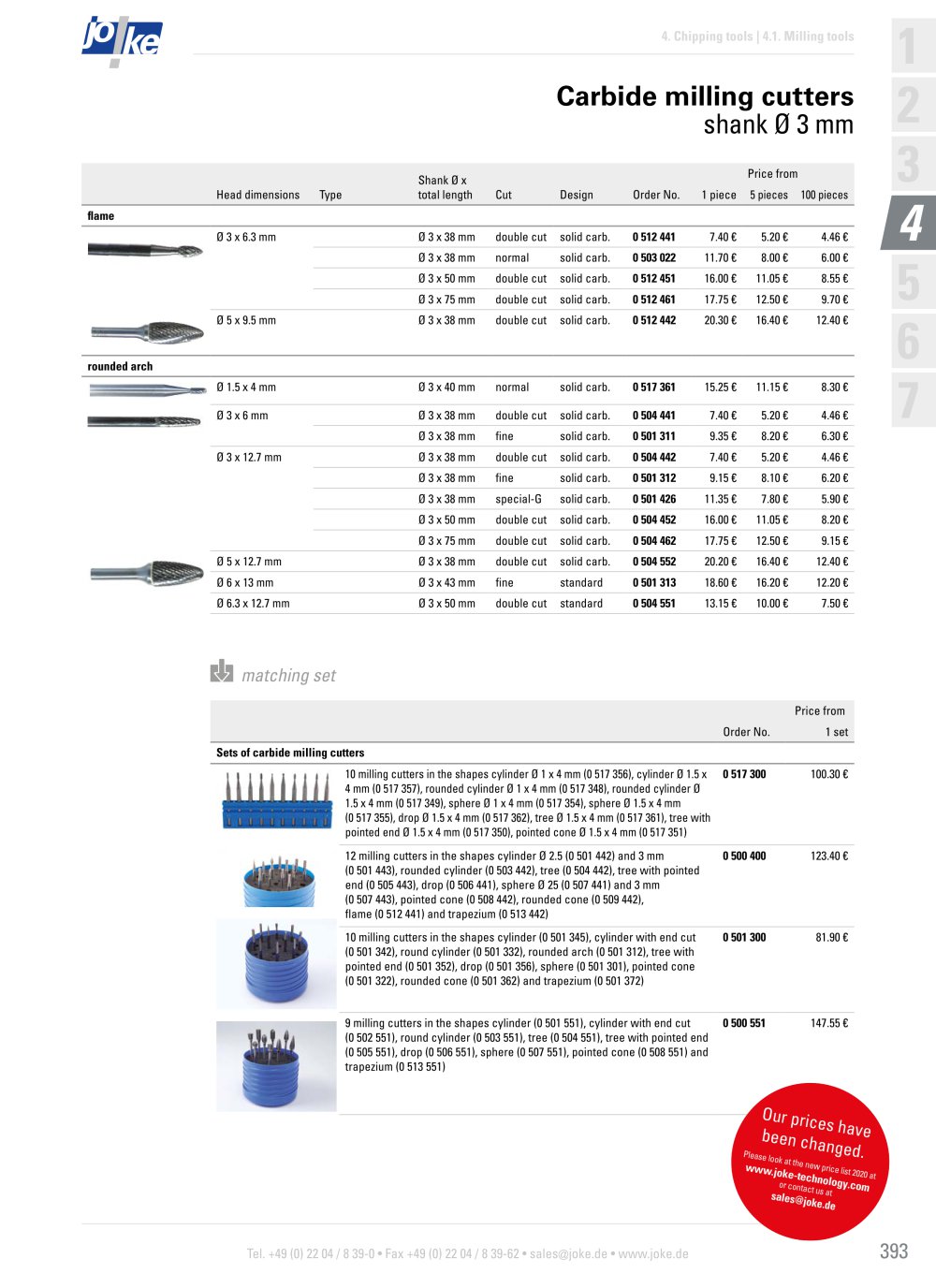

401 4 2,35 3,0 6,0 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 4. Chipping tools // 4.1. Milling tools Tungsten carbide milling cutters, shank Ø 3 mm Head dimensions mm Shank Ø x total length Cut Design Order No. Price from 5 pieces Price from 1 piece Flame Ø 3.0 x 6.3 Ø 3 x 38 Double Solid carb. 0 512 441 Ø 3 x 38 Normal Solid carb. 0 503 022 Ø 3 x 50 Double Solid carb. 0 512 451 Ø 3 x 50 Normal Solid carb. 0 503 028 Ø 3 x 75 Double Solid carb. 0 512 461 Ø 3 x 75 Normal Solid carb. 0 503 029 Ø 5.0 x 9.5 Ø 3 x 38 Double Solid carb. 0 512 442 Ø 3 x 38 Normal Solid carb. 0 503 023 Round arch Ø 1.5 x 4.0 Ø 3 x 40 Normal Solid carb. 0 517 361 Ø 3.0 x 6.0 Ø 3 x 38 Double Solid carb. 0 504 441 Ø 3 x 38 Normal Solid carb. 0 503 230 Ø 3 x 38 Fine Solid carb. 0 501 311 Ø 3.0 x 12.7 Ø 3 x 38 Double Solid carb. 0 504 442 Ø 3 x 38 Normal Solid carb. 0 503 231 Ø 3 x 38 Fine Solid carb. 0 501 312 Ø 3 x 38 Special-G Solid carb. 0 501 426 Ø 3 x 50 Double Solid carb. 0 504 452 Ø 3 x 50 Normal Solid carb. 0 503 246 Ø 3 x 75 Double Solid carb. 0 504 462 Ø 3 x 75 Normal Solid carb. 0 503 247 Ø 5.0 x 12.7 Ø 3 x 38 Double Solid carb. 0 504 552 Ø 3 x 38 Normal Solid carb. 0 503 232 Ø 6.0 x 13.0 Ø 3 x 43 Fine Standard 0 501 313 Ø 6.3 x 12.7 Ø 3 x 50 Double Standard 0 504 551 Ø 3 x 50 Normal Standard 0 503 233 Tungsten carbide milling cutters shank Ø 3 mm Flame • Round arch NEW! = new product! Sets of tungsten carbide milling cutters shank Ø 3 mm Order No. Price Double cut set, shank Ø 3 mm, head Ø 2.5 and 3 mm 0 500 400 12 milling cutters in the shapes cylinder Ø 2.5 (0 501 442) and 3 mm (0 501 443), rounded barrel (0 503 442), rounded arch (0 504 442), pointed arch (0 505 443), drop (0 506 441), sphere Ø 25 (0 507 441) and 3 mm (0 507 443), pointed cone (0 508 442), rounded cone (0 509 442), flame (0 512 441) and Trapeze (0 513 442) Double cut set, shank Ø 3 mm, head Ø 6.3 mm 0 500 551 9 milling cutters in the shapes cylinder (0 501 551), cylinder with end cut (0 502 551), round barrel (0 503 551), rounded arch (0 504 551), pointed arch (0 505 551), drop (0 506 551), sphere (0 507 551), pointed cone (0 508 551) and Trapeze (0 513 551) Fine cut set, shank Ø 3 mm, head Ø 2.5 and 3 mm 0 501 300 10 milling cutters in the shapes cylinder (0 501 345), cylinder with end cut (0 501 342), round barrel (0 501 332), rounded arch (0 501 312), pointed arch (0 501 352), drop (0 501 356), sphere (0 501 301), pointed cone (0 501 322), rounded cone (0 501 362) and Trapeze (0 501 372) further sets (shank Ø 6 mm) to be found on page 406!
