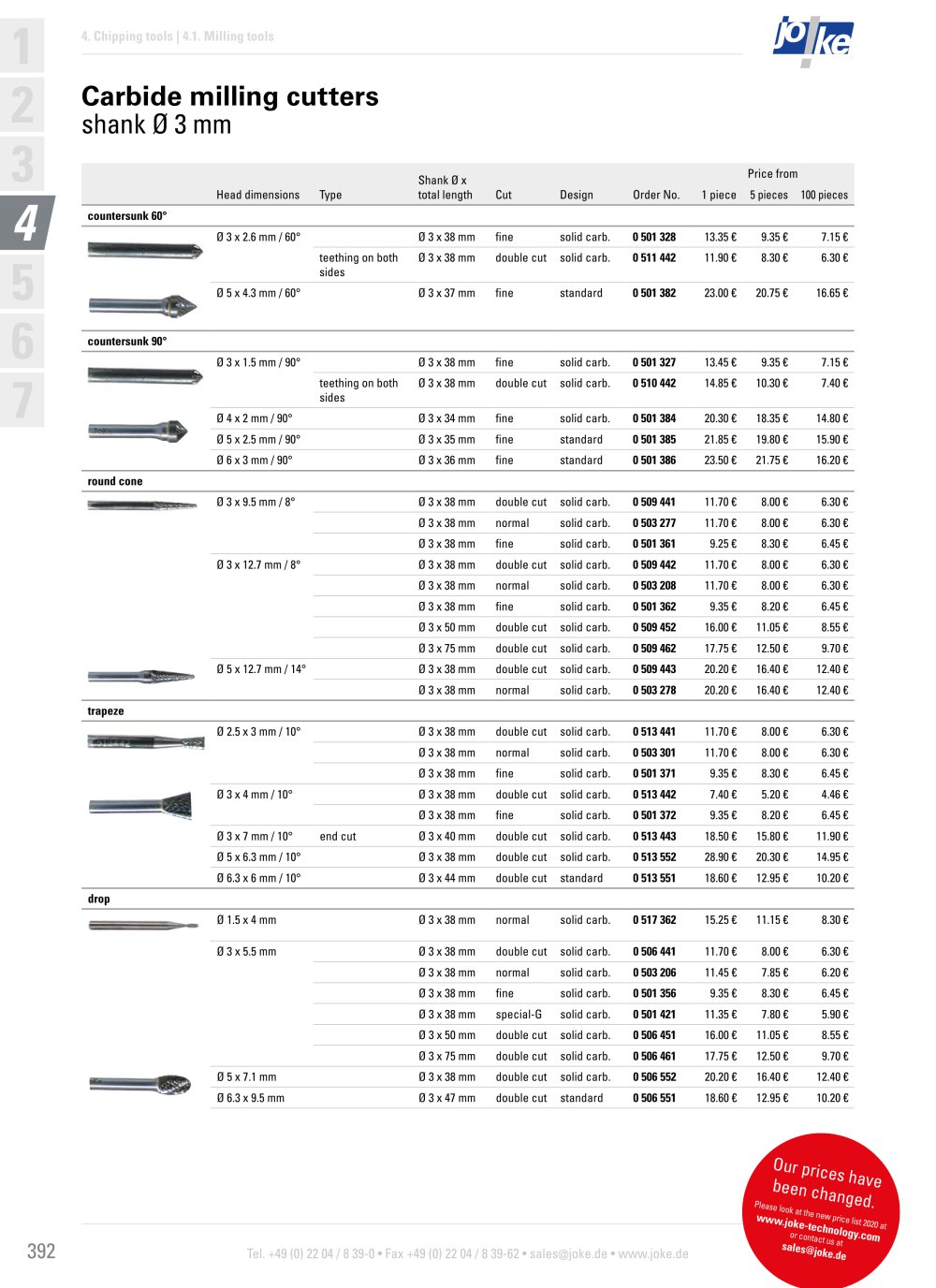

400 4 2,35 3,0 6,0 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 4. Chipping tools // 4.1. Milling tools Tungsten carbide milling cutters, shank Ø 3 mm Head dimensions mm Shank Ø x total length Cut Design Order No. Price from 5 pieces Price from 1 piece Round cone Ø 3.0 x 9.5 / 8° Ø 3 x 38 Double Solid carb. 0 509 441 Ø 3 x 38 Normal Solid carb. 0 503 277 Ø 3 x 38 Fine Solid carb. 0 501 361 Ø 3.0 x 12.7 / 8° Ø 3 x 38 Double Solid carb. 0 509 442 Ø 3 x 38 Normal Solid carb. 0 503 208 Ø 3 x 38 Fine Solid carb. 0 501 362 Ø 3 x 50 Double Solid carb. 0 509 452 Ø 3 x 50 Normal Solid carb. 0 503 285 Ø 3 x 75 Double Solid carb. 0 509 462 Ø 3 x 75 Normal Solid carb. 0 503 286 Ø 5.0 x 12.7 / 14° Ø 3 x 38 Double Solid carb. 0 509 443 Ø 3 x 38 Normal Solid carb. 0 503 278 Trapeze Ø 2.5 x 3.0 / 10° Ø 3 x 38 Double Solid carb. 0 513 441 Ø 3 x 38 Normal Solid carb. 0 503 301 Ø 3 x 38 Fine Solid carb. 0 501 371 Ø 3.0 x 4.0 / 10° Ø 3 x 38 Double Solid carb. 0 513 442 Ø 3 x 38 Normal Solid carb. 0 503 210 Ø 3 x 38 Fine Solid carb. 0 501 372 Ø 3.0 x 7.0 / 10° Ø 3 x 40 Double Solid carb. 0 513 443 Ø 3 x 40 Fine Solid carb. 0 501 373 Ø 5.0 x 6.3 / 10° Ø 3 x 38 Double Solid carb. 0 513 552 Ø 3 x 38 Normal Solid carb. 0 503 302 Ø 6.0 x 7.0 / 10° Ø 3 x 37 Fine Standard 0 501 374 Ø 6.3 x 6.0 / 10° Ø 3 x 44 Double Standard 0 513 551 Ø 3 x 44 Normal Standard 0 503 107 Drop Ø 1.5 x 4.0 Ø 3 x 40 Normal Solid carb. 0 517 362 Ø 3.0 x 5.5 Ø 3 x 38 Double Solid carb. 0 506 441 Ø 3 x 38 Normal Solid carb. 0 503 206 Ø 3 x 38 Fine Solid carb. 0 501 356 Ø 3 x 38 Special-G Solid carb. 0 501 421 Ø 3 x 50 Double Solid carb. 0 506 451 Ø 3 x 50 Normal Solid carb. 0 503 222 Ø 3 x 75 Double Solid carb. 0 506 461 Ø 3 x 75 Normal Solid carb. 0 503 223 Ø 5.0 x 7.1 Ø 3 x 38 Double Solid carb. 0 506 552 Ø 3 x 38 Normal Solid carb. 0 503 216 Ø 6.3 x 9.5 Ø 3 x 47 Double Standard 0 506 551 Ø 3 x 47 Normal Standard 0 503 104 Tungsten carbide milling cutters shank Ø 3 mm Round cone • Trapeze • Drop for further shapes see following page! = end cut NEW! = new product!
