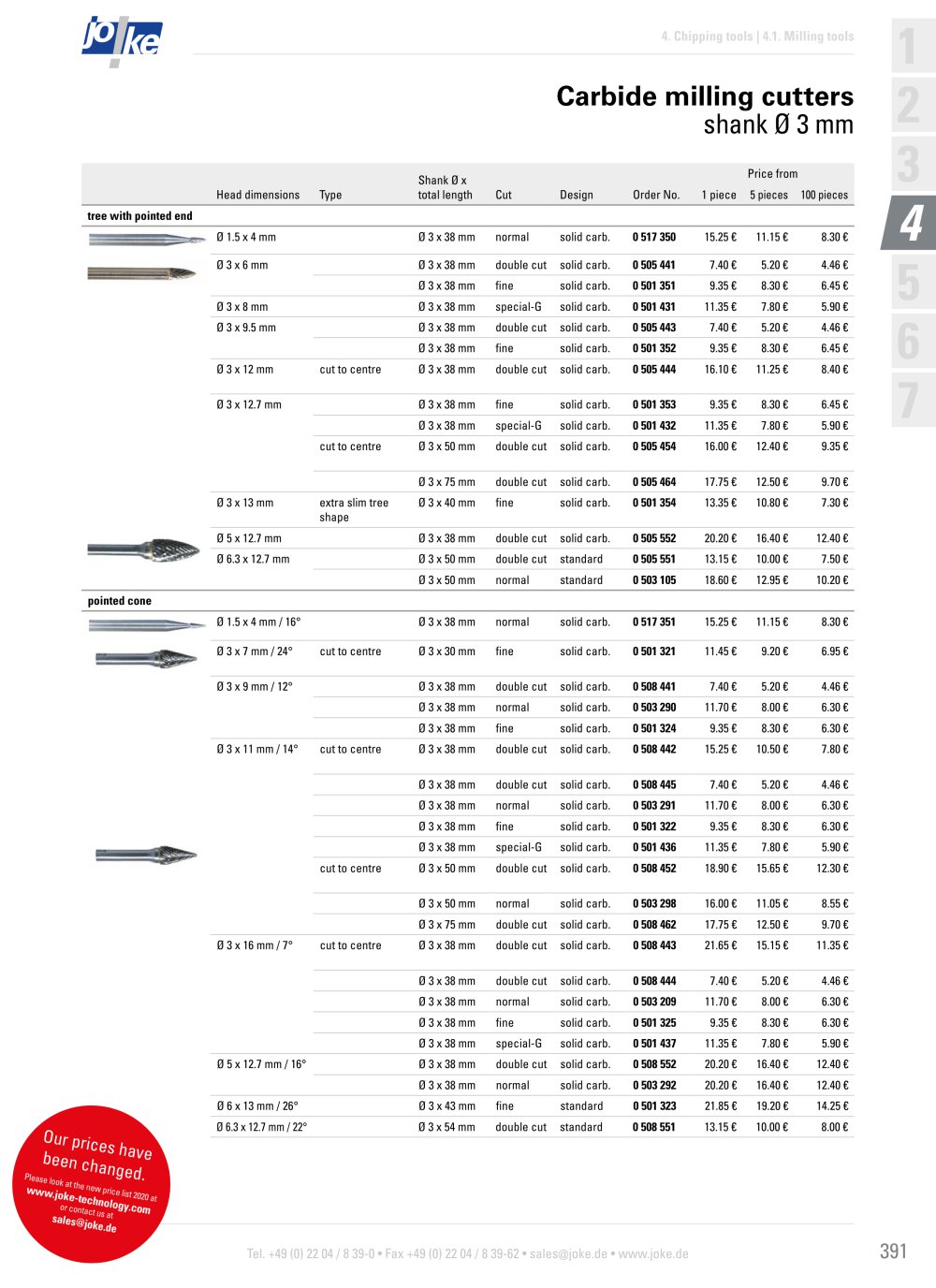

399 4 2,35 3,0 6,0 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 4. Chipping tools // 4.1. Milling tools Tungsten carbide milling cutters, shank Ø 3 mm Head dimensions mm Shank Ø x total length Cut Design Order No. Price from 5 pieces Price from 1 piece Pointed arch Ø 3.0 x 12.7 Ø 3 x 50 Double Solid carb. 0 505 454 Ø 3 x 50 Normal Solid carb. 0 503 270 Ø 3 x 75 Double Solid carb. 0 505 464 Ø 3 x 75 Normal Solid carb. 0 503 271 Ø 3.0 x 13.0 Ø 3 x 40 Fine Solid carb. 0 501 354 Ø 5.0 x 12.7 Ø 3 x 38 Double Solid carb. 0 505 552 Ø 3 x 38 Normal Solid carb. 0 503 033 Ø 6.3 x 12.7 Ø 3 x 50 Double Standard 0 505 551 Ø 3 x 50 Normal Standard 0 503 105 Pointed cone Ø 1.5 x 4.0 / 17° Ø 3 x 40 Normal Solid carb. 0 517 351 Ø 3.0 x 7.0 / 24° Ø 3 x 30 Fine Solid carb. 0 501 321 Ø 3.0 x 9 / 12° Ø 3 x 38 Double Solid carb. 0 508 441 Ø 3 x 38 Normal Solid carb. 0 503 290 Ø 3 x 38 Fine Solid carb. 0 501 324 Ø 3.0 x 11.0 / 14° Ø 3 x 38 Double Solid carb. 0 508 442 Ø 3 x 38 Double Solid carb. 0 508 445 Ø 3 x 38 Normal Solid carb. 0 503 291 Ø 3 x 38 Fine Solid carb. 0 501 322 Ø 3 x 38 Special-G Solid carb. 0 501 436 Ø 3 x 50 Double Solid carb. 0 508 452 Ø 3 x 50 Normal Solid carb. 0 503 298 Ø 3 x 75 Double Solid carb. 0 508 462 Ø 3 x 75 Normal Solid carb. 0 503 299 Ø 3.0 x 16.0 / 7° Ø 3 x 38 Double Solid carb. 0 508 443 Ø 3 x 38 Double Solid carb. 0 508 444 Ø 3 x 38 Normal Solid carb. 0 503 209 Ø 3 x 38 Fine Solid carb. 0 501 325 Ø 3 x 38 Special-G Solid carb. 0 501 437 Ø 5.0 x 12.7 / 16° Ø 3 x 38 Double Solid carb. 0 508 552 Ø 3 x 38 Normal Solid carb. 0 503 292 Ø 6.0 x 13.0 / 26° Ø 3 x 43 Fine Standard 0 501 323 Ø 6.3 x 12.7 / 22° Ø 3 x 54 Double Standard 0 508 551 Ø 3 x 54 Normal Standard 0 503 106 Countersunk 60° Ø 3.0 x 2.6 / 60° Ø 3 x 38 Fine Solid carb. 0 501 328 Ø 3 x 38 Double Solid carb. 0 511 442 Ø 5.0 x 4.3 / 60° Ø 3 x 37 Fine Standard 0 501 382 Countersunk 90° Ø 3.0 x 1.5 / 90° Ø 3 x 38 Fine Solid carb. 0 501 327 Ø 3 x 38 Double Solid carb. 0 510 442 Ø 4.0 x 2.0 / 90° Ø 3 x 34 Fine Solid carb. 0 501 384 Ø 5.0 x 2.5 / 90° Ø 3 x 35 Fine Standard 0 501 385 Ø 6.0 x 3.0 / 90° Ø 3 x 36 Fine Standard 0 501 386 Tungsten carbide milling cutters shank Ø 3 mm Pointed arch (Cont.) • Pointed cone • Countersunk Extra thin arch shape teething on both sides teething on both sides Cut to centre Cut to centre Cut to centre Cut to centre Cut to centre Cut to centre for further shapes see following page! NEW! = new product!
