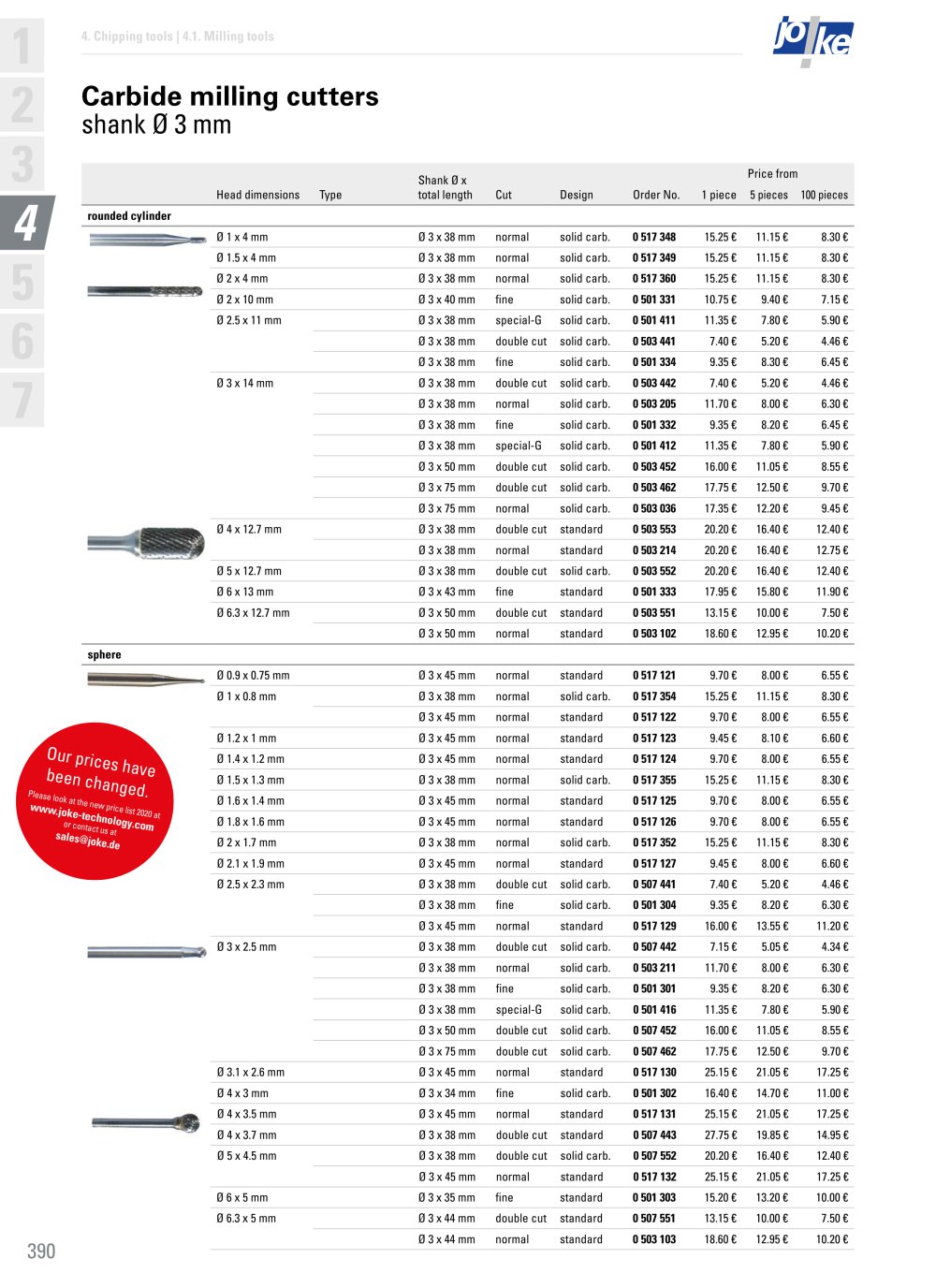

398 4 2,35 3,0 6,0 Tel. +49 (0) 22 04 / 8 39-0 • Fax +49 (0) 22 04 / 8 39-61 • info@joke.de 4. Chipping tools // 4.1. Milling tools Tungsten carbide milling cutters, shank Ø 3 mm Head dimensions mm Shank Ø x total length Cut Design Order No. Price from 5 pieces Price from 1 piece Sphere Ø 0.9 x 0.75 Ø 3 x 45 Normal Standard 0 517 121 Ø 1.0 x 0.8 Ø 3 x 40 Normal Solid carb. 0 517 354 Ø 3 x 45 Normal Standard 0 517 122 Ø 1.2 x 1.0 Ø 3 x 45 Normal Standard 0 517 123 Ø 1.4 x 1.2 Ø 3 x 45 Normal Standard 0 517 124 Ø 1.5 x 1.3 Ø 3 x 40 Normal Solid carb. 0 517 355 Ø 1.6 x 1.4 Ø 3 x 45 Normal Standard 0 517 125 Ø 1.8 x 1.6 Ø 3 x 45 Normal Standard 0 517 126 Ø 2.0 x 1.7 Ø 3 x 40 Normal Solid carb. 0 517 352 Ø 2.1 x 1.9 Ø 3 x 45 Normal Standard 0 517 127 Ø 2.5 x 2.3 Ø 3 x 38 Double Solid carb. 0 507 441 Ø 3 x 38 Fine Solid carb. 0 501 304 Ø 3 x 45 Normal Standard 0 517 129 Ø 3.0 x 2.5 Ø 3 x 38 Double Solid carb. 0 507 442 Ø 3 x 38 Normal Solid carb. 0 503 211 Ø 3 x 38 Fine Solid carb. 0 501 301 Ø 3 x 38 Special-G Solid carb. 0 501 416 Ø 3 x 50 Double Solid carb. 0 507 452 Ø 3 x 50 Normal Solid carb. 0 503 120 Ø 3 x 75 Double Solid carb. 0 507 462 Ø 3 x 75 Normal Solid carb. 0 503 121 Ø 3.1 x 2.6 Ø 3 x 45 Normal Standard 0 517 130 Ø 4.0 x 3.0 Ø 3 x 34 Fine Solid carb. 0 501 302 Ø 4.0 x 3.5 Ø 3 x 45 Normal Standard 0 517 131 Ø 4.0 x 3.7 Ø 3 x 38 Double Standard 0 507 443 Ø 5.0 x 4.5 Ø 3 x 38 Double Solid carb. 0 507 552 Ø 3 x 45 Normal Standard 0 517 132 Ø 6.0 x 5.0 Ø 3 x 35 Fine Standard 0 501 303 Ø 6.3 x 5.0 Ø 3 x 44 Double Standard 0 507 551 Ø 3 x 44 Normal Standard 0 503 103 Pointed arch Ø 1.5 x 4.0 Ø 3 x 40 Normal Solid carb. 0 517 350 Ø 3.0 x 6.0 Ø 3 x 38 Double Solid carb. 0 505 441 Ø 3 x 38 Normal Solid carb. 0 503 207 Ø 3 x 38 Fine Solid carb. 0 501 351 Ø 3.0 x 8.0 Ø 3 x 38 Special-G Solid carb. 0 501 431 Ø 3.0 x 9.5 Ø 3 x 38 Double Solid carb. 0 505 443 Ø 3 x 38 Normal Solid carb. 0 505 442 Ø 3 x 38 Fine Solid carb. 0 501 352 Ø 3.0 x 12.0 Ø 3 x 38 Double Solid carb. 0 505 444 Ø 3.0 x 12.7 Ø 3 x 38 Normal Solid carb. 0 503 032 Ø 3 x 38 Fine Solid carb. 0 501 353 Ø 3 x 38 Special-G Solid carb. 0 501 432 Tungsten carbide milling cutters shank Ø 3 mm Sphere • Pointed arch Cut to centre for further shapes see following page! NEW! = new product!
