Blasting systems
14Pages

{{requestButtons}}

Catalog excerpts

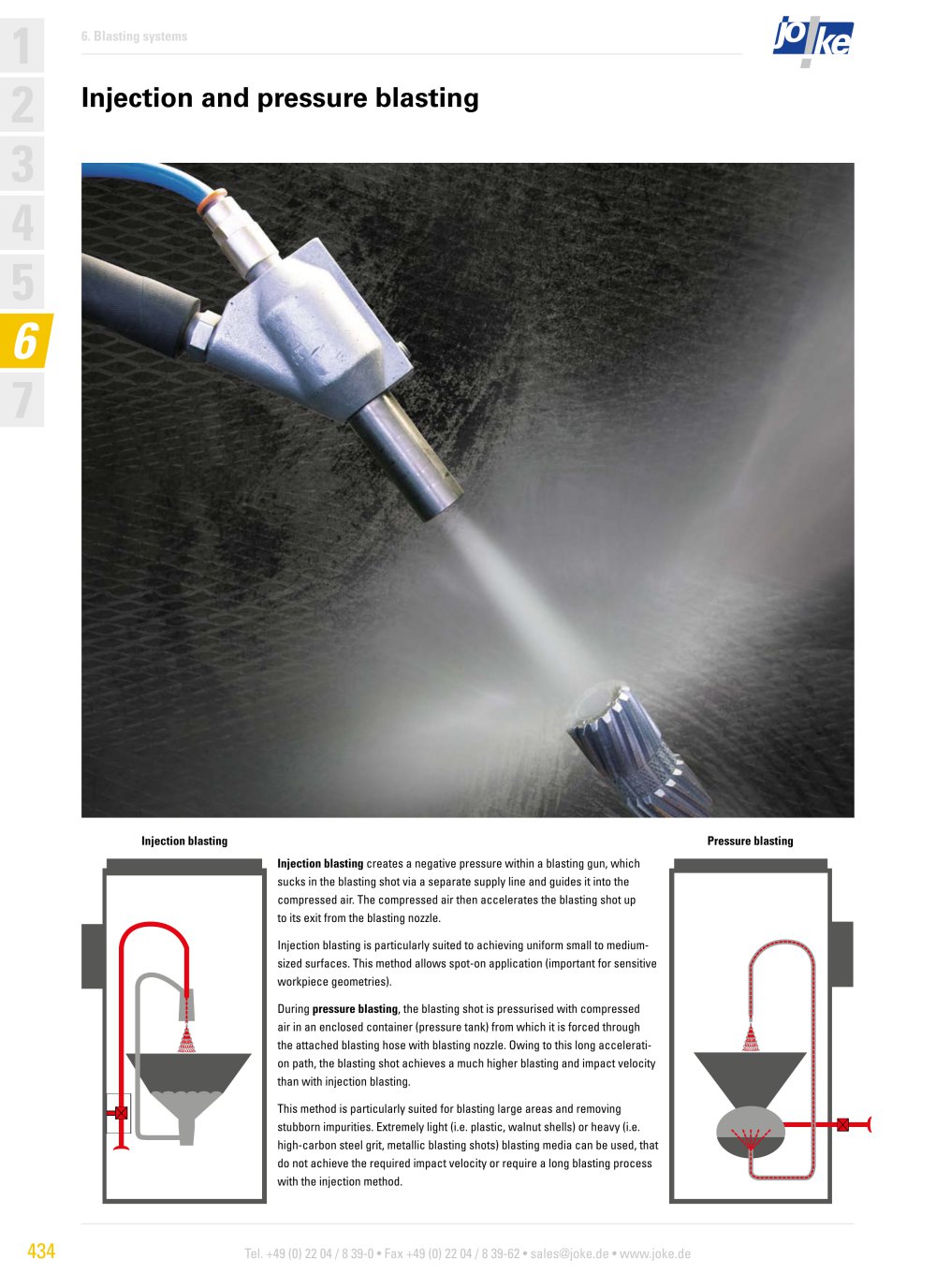

Blasting systems - 1

Injection and pressure blasting Pressure blasting Injection blasting creates a negative pressure within a blasting gun, which sucks in the blasting shot via a separate supply line and guides it into the compressed air. The compressed air then accelerates the blasting shot up to its exit from the blasting nozzle. Injection blasting is particularly suited to achieving uniform small to mediumsized surfaces. This method allows spot-on application (important for sensitive workpiece geometries). During pressure blasting, the blasting shot is pressurised with compressed air in an enclosed container (pressure tank) from which it is forced through the attached blasting hose with blasting nozzle. Owing to this long acceleration path, the blasting shot achieves a much higher blasting and impact velocity than with injection blasting. This method is particularly suited for blasting large areas and removing stubborn impurities. Extremely light (i.e. plastic, walnut shells) or heavy (i.e. high-carbon steel grit, metallic blasting shots) blasting media can be used, that do not achieve the required impact velocity or require a long blasting process with the injection method.

Open the catalog to page 1
Blasting systems - 2

Injection fine blasting units mikromat eco-Serie mikromat pro-Serie microblast microjet Blasting is a surface treatment in which blasting shot is aimed at the workpieces at high velocity. Compressed air, hydraulic fluid or wheels are available as carrier energy. The blasting result essentially depends on the type of blasting shot selected, in addition to different machine types and configuration para-meters. (Translation of the German definition according to www.wikipedia.de) In selecting our blasting systems, we at joke have decided on compressed air as the carrier energy. On the one hand,...

Open the catalog to page 2
Blasting systems - 3

6. Blasting systems | 6.1. Injection fine blasting units Fine blasting units Series “eco” Fine blasting units “eco” series The new, budget-priced entry level blasting unit offering professional quality for workshop and factory. It is highly recommended for deburring, derusting, cleaning, roughening, matting, descaling and removing of lacquer. This unit offers modern technology with many practical features at an attractive price. Highlights: • Compact, space-saving design • Integrated dust exhaust for perfect visibility during the blasting process • Blasting shot is processed in a closed...

Open the catalog to page 3
Blasting systems - 4

6. Blasting systems | 6.1. Injection fine blasting units Fine blasting units Series “eco” mikromat 1000 eco Working chamber dimensions (W x D x H) Load bearing capacity of work area approx. 700 l/min at 7 bars Compressed-air connection Compressed-air adjustment range Supply voltage Scope of delivery refer to Order No. 0 952 100-8, additionally with an exhaust air duct of an afterfilter system or with an exhaust air connector for connection

Open the catalog to page 4
Blasting systems - 5

6. Blasting systems | 6.1. Injection fine blasting units Fine blasting units Series “pro” Fine blasting units Series “pro” The fine blasting units from the pro series are perfectly prepared ex-works for optional equipment. This allows ideal working conditions. They are state of the art with their LED working chamber lights. We offer every worker ergonomically adaptable working conditions in the form of the “ERGOSIZE” height-adjustable working chamber. Other highlights: fully automatic filter cleaning and frequency-controlled extraction together with the afterfilter system allow minutest...

Open the catalog to page 5
Blasting systems - 6

6. Blasting systems | 6.1. Injection fine blasting units Fine blasting units Series “pro” similar picture mikromat 1100 pro Working chamber dimensions (W x D x H) Load bearing capacity of work area Compressed-air connection Compressed-air adjustment range Noise level Supply voltage Filter area Scope of deliver, refer to Order No. 0 952 400, but without blasting gun holder

Open the catalog to page 6
Blasting systems - 7

Fine blasting units Accessories°0 Accessories/spare parts mikromat mikromat mikromat mikromat 50 eco 1000 eco 600 pro 1100 pro Order No. Price Micro fine blasting unit microblast • • • • 0 951 110-1 589.00 € Push-through system 150 x 150 mm / piece • • 0 952 113 734.00 € Push-through system 250 x 250 mm / piece • • 0 952 828 660.00 € Blasting shot accelearation • • 0 952 111 555.00 € Boron carbide blasting nozzle 0 7 mm • • • • 0 952 018 392.00 € Glove, left only, size 10 • • 0 952 025 14.60 €

Open the catalog to page 7
Blasting systems - 8

Work chamber height adjustment, frequency control and secondary filter system for the mikromat 600 pro and 1100 pro fine blasting units Work chamber height adjustment, frequency control of the fan speed and secondary filter system These optional equipment variants let you adapt the mikromat series fine blasting units even more closely to your requirements, working conditions and/or spatial circumstances. Other equipment variants are furthermore possible as well as construction of special solutions based on the tried and trusted mikromat systems. Price from Order No. 1 piece Using the...

Open the catalog to page 8
Blasting systems - 9

Fine blasting unit microblast Micro fine blasting unit microblast The compact solution for finest blasting jobs. The microblast fine blasting unit allows you to work on finest contours, narrow ribs, slots etc. Available in two versions: • The mobile version with carrying straps (order no. 0 951 110) as an open system without its own blasting chamber lends itself to fine work in the field of renovation for stripping wall painting • With the add-on version (order no. 0 951 110-1), the blasting chamber, extraction and illumination of the large device are used to carry out highly intricate work...

Open the catalog to page 9
Blasting systems - 10

Tabletop fine blasting device microjet Tabletop fine blasting device joke-microjet The microjet is a blasting device developed for surface treatment of metals. Particularly suitable for removing residues and oxide layers or when using glass beads for polishing the precious metal surfaces Highlights: • Depending on equipment, a choice of one, two or three blasting shots is available during work. • Handpiece can be used with a 0 0.8, 1 or 1.2 mm fine blasting nozzle. • Wide viewing window with easily replaceable protective film. • Steel housing with stove-enamel finish • Pneumatic foot switch...

Open the catalog to page 10
