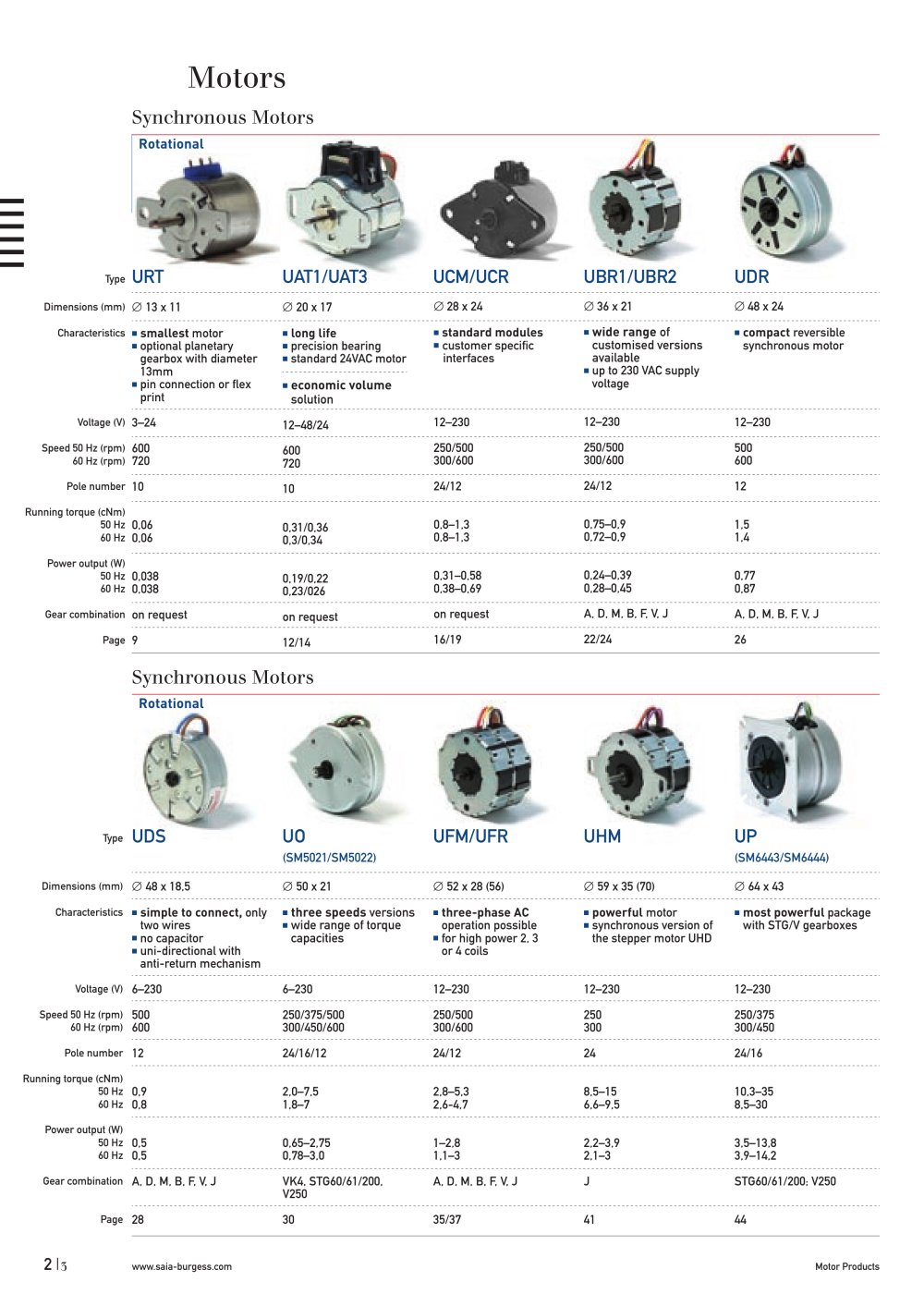

Motors Synchronous Motors

Rotational

Type

URT UAT1/UAT3 UCM/UCR UBR1/UBR2 UDR

Dimensions (mm) ∅ 13 �x 11 ∅ 20 �x 17 ∅ 28 �x 24 ∅ 36 �x 21 ∅ 48 �x 24
Characteristics � smallest motor
� long life
� standard modules
�

wide range of

� compact reversible
� optional planetary
� precision bearing
� customer specific

customised versions

synchronous motor gearbox with diameter
� standard 24VAC motor interfaces

available

13mm
� up to 230 VAC supply
� pin connection or flex
�

economic volume

voltage print

solution

Voltage (V) 3–24 12–48/24 12–230 12–230 12–230
Speed 50 Hz (rpm) 600 600 250/500 250/500 500
60 Hz (rpm) 720 720 300/600 300/600 600
Pole number 10 10 24/12 24/12 12
Running torque (cNm) 50 Hz 0,06 0,31/0,36 0,8–1,3 0,75–0,9 1,5
60 Hz 0,06 0,3/0,34 0,8–1,3 0,72–0,9 1,4
Power output (W) 50 Hz 0,038 0,19/0,22 0,31–0,58 0,24–0,39 0,77
60 Hz 0,038 0,23/026 0,38–0,69 0,28–0,45 0,87
Gear combination on request on request on request A, D, M, B, F, V, J A, D, M, B, F, V, J
Page 9 12/14 16/19 22/24 26

Synchronous Motors

Rotational

Type

UDS UO UFM/UFR UHM UP

(

SM5021/SM5022) (SM6443/SM6444)

Dimensions (mm) ∅ 48 �x 18,5 ∅ 50 �x 21 ∅ 52 � x 28 (56) ∅ 59 �x 35 (70) ∅ 64 �x 43
Characteristics � simple to connect, only
�

three speeds versions

� three-phase AC
� powerful motor
� most powerful package two wires
�

wide range of torque

operation possible
� synchronous version of with STG/V gearboxes
� no capacitor

capacities

� for high power 2, 3 the stepper motor UHD
� uni-directional with or 4 coils anti-return mechanism
Voltage (V) 6–230 6–230 12–230 12–230 12–230
Speed 50 Hz (rpm) 500 250/375/500 250/500 250 250/375
60 Hz (rpm) 600 300/450/600 300/600 300 300/450
Pole number 12 24/16/12 24/12 24 24/16
Running torque (cNm) 50 Hz 0,9 2,0–7,5 2,8–5,3 8,5–15 10,3–35
60 Hz 0,8 1,8–7 2,6-4,7 6,6–9,5 8,5–30
Power output (W) 50 Hz 0,5 0,65–2,75 1–2,8 2,2–3,9 3,5–13,8
60 Hz 0,5 0,78–3,0 1,1–3 2,1–3 3,9–14,2
Gear combination A, D, M, B, F, V, J VK4, STG60/61/200, A, D, M, B, F, V, J J STG60/61/200; V250 V250
Page 28 30 35/37 41 44
