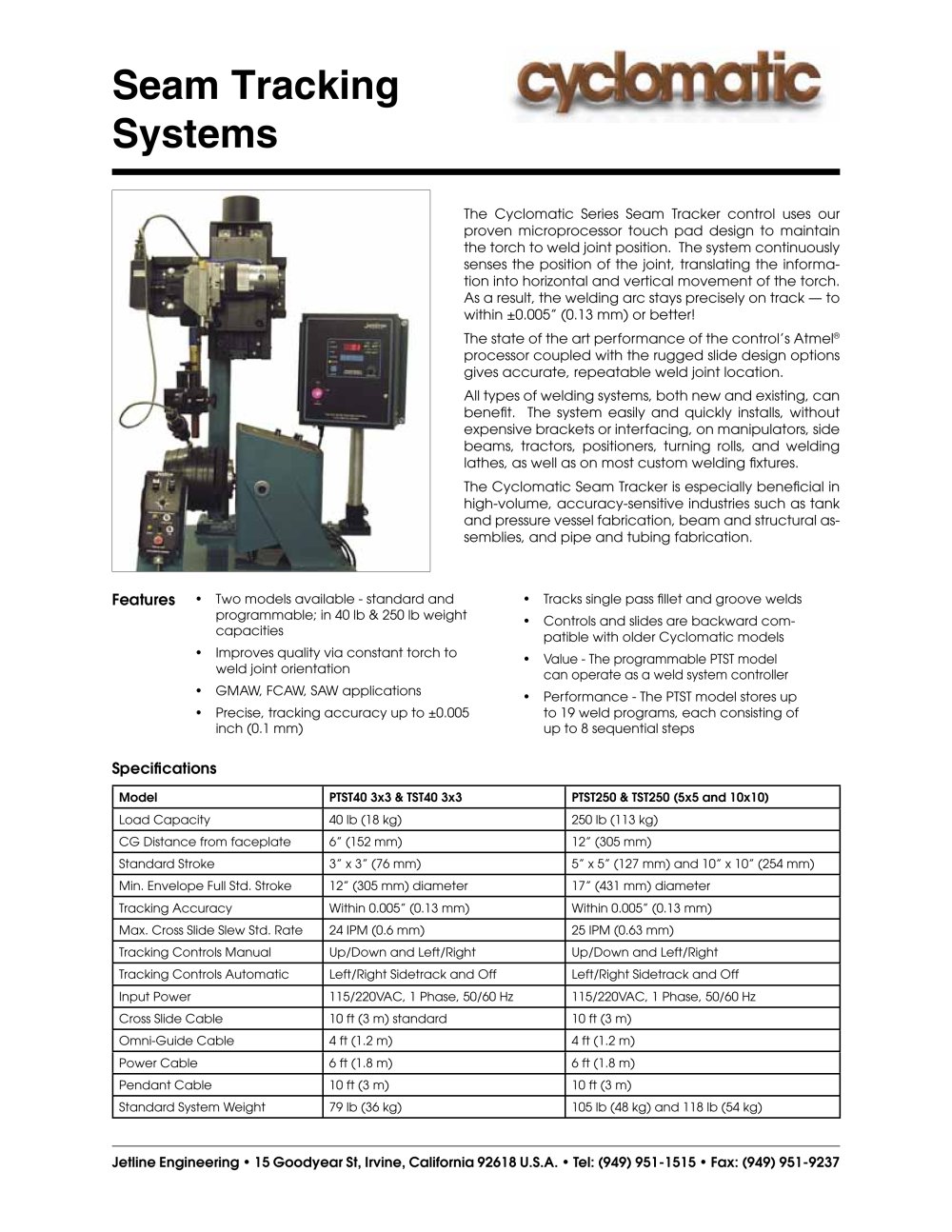

Seam Tracking Systems

The Cyclomatic Series Seam Tracker control uses our proven microprocessor touch pad design to maintain the torch to weld joint position. The system continuously senses the position of the joint, translating the informa- tion into horizontal and vertical movement of the torch. As a result, the welding arc stays precisely on track — to within ±0.005” (0.13 mm) or better! The state of the art performance of the control’s Atmel

®

processor coupled with the rugged slide design options gives accurate, repeatable weld joint location.All types of welding systems, both new and existing, can benefi t. The system easily and quickly installs, without expensive brackets or interfacing, on manipulators, side beams, tractors, positioners, turning rolls, and welding lathes, as well as on most custom welding fi xtures.The Cyclomatic Seam Tracker is especially benefi cial in high-volume, accuracy-sensitive industries such as tank and pressure vessel fabrication, beam and structural as- semblies, and pipe and tubing fabrication.

Features

• Two models available - standard and programmable; in 40 lb & 250 lb weight capacities• Improves quality via constant torch to weld joint orientation• GMAW, FCAW, SAW applications• Precise, tracking accuracy up to ±0.005 inch (0.1 mm)• Tracks single pass fi llet and groove welds• Controls and slides are backward com-patible with older Cyclomatic models• Value - The programmable PTST model can operate as a weld system controller • Performance - The PTST model stores up to 19 weld programs, each consisting of up to 8 sequential steps

Specifi cations

ModelPTST40 3x3 & TST40 3x3PTST250 & TST250 (5x5 and 10x10) Load Capacity40 lb (18 kg)250 lb (113 kg) CG Distance from faceplate6” (152 mm)12” (305 mm) Standard Stroke3” x 3” (76 mm)5” x 5” (127 mm) and 10” x 10” (254 mm) Min. Envelope Full Std. Stroke12” (305 mm) diameter17” (431 mm) diameter Tracking AccuracyWithin 0.005” (0.13 mm)Within 0.005” (0.13 mm) Max. Cross Slide Slew Std. Rate24 IPM (0.6 mm)25 IPM (0.63 mm) Tracking Controls ManualUp/Down and Left/RightUp/Down and Left/Right Tracking Controls AutomaticLeft/Right Sidetrack and OffLeft/Right Sidetrack and Off Input Power115/220VAC, 1 Phase, 50/60 Hz115/220VAC, 1 Phase, 50/60 Hz Cross Slide Cable10 ft (3 m) standard10 ft (3 m) Omni-Guide Cable4 ft (1.2 m)4 ft (1.2 m) Power Cable6 ft (1.8 m)6 ft (1.8 m) Pendant Cable10 ft (3 m)10 ft (3 m) Standard System Weight79 lb (36 kg)105 lb (48 kg) and 118 lb (54 kg)
