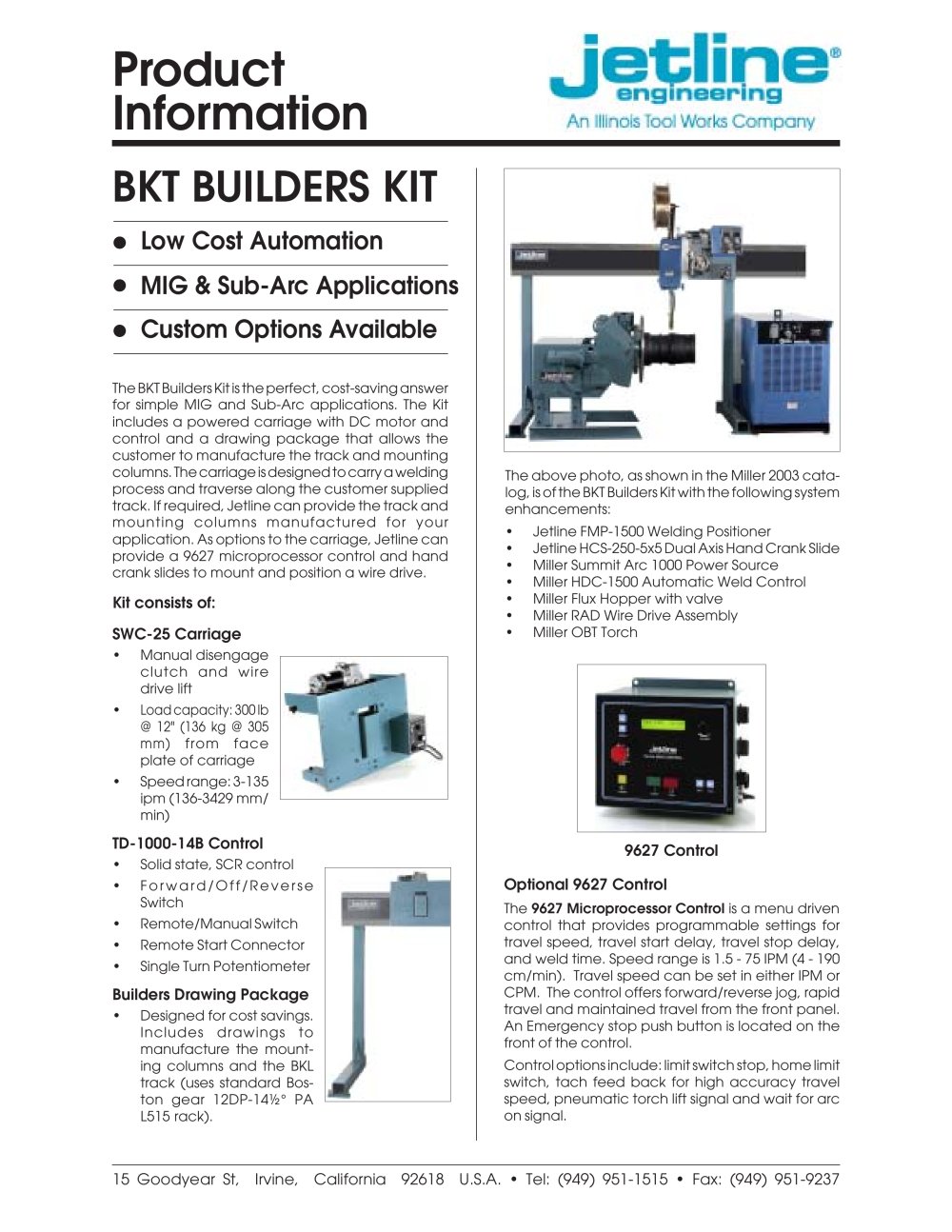

The BKT Builders Kit is the perfect, cost-saving answer for simple MIG and Sub-Arc applications. The Kit includes a powered carriage with DC motor and control and a drawing package that allows the customer to manufacture the track and mounting columns. The carriage is designed to carry a welding process and traverse along the customer supplied track. If required, Jetline can provide the track and mounting columns manufactured for your application. As options to the carriage, Jetline can provide a 9627 microprocessor control and hand crank slides to mount and position a wire drive.

The above photo, as shown in the Miller 2003 cata­log, is of the BKT Builders Kit with the following system enhancements:

• Jetline FMP-1500 Welding Positioner

• Jetline HCS-250-5x5 Dual Axis Hand Crank Slide

• Miller Summit Arc 1000 Power Source

• Miller HDC-1500 Automatic Weld Control

• Miller Flux Hopper with valve

• Miller RAD Wire Drive Assembly

• Miller OBT Torch

• Manual disengage clutch and wire drive lift

• Load capacity: 300 lb @ 12" (136 kg @ 305 mm) from face plate of carriage

• Speed range: 3-135 ipm (136-3429 mm/ min)

• Solid state, SCR control

• Forward/Off/Reverse Switch

• Remote/Manual Switch

• Remote Start Connector

• Single Turn Potentiometer

• Designed for cost savings. Includes drawings to manufacture the mount­ing columns and the BKL track (uses standard Bos­ton gear 12DP-14%° PA

L515 rack).

The 9627 Microprocessor Control is a menu driven control that provides programmable settings for travel speed, travel start delay, travel stop delay, and weld time. Speed range is 1.5 - 75 IPM (4 - 190 cm/min). Travel speed can be set in either IPM or CPM. The control offers forward/reverse jog, rapid travel and maintained travel from the front panel. An Emergency stop push button is located on the front of the control.

Control options include: limit switch stop, home limit switch, tach feed back for high accuracy travel speed, pneumatic torch lift signal and wait for arc on signal.
