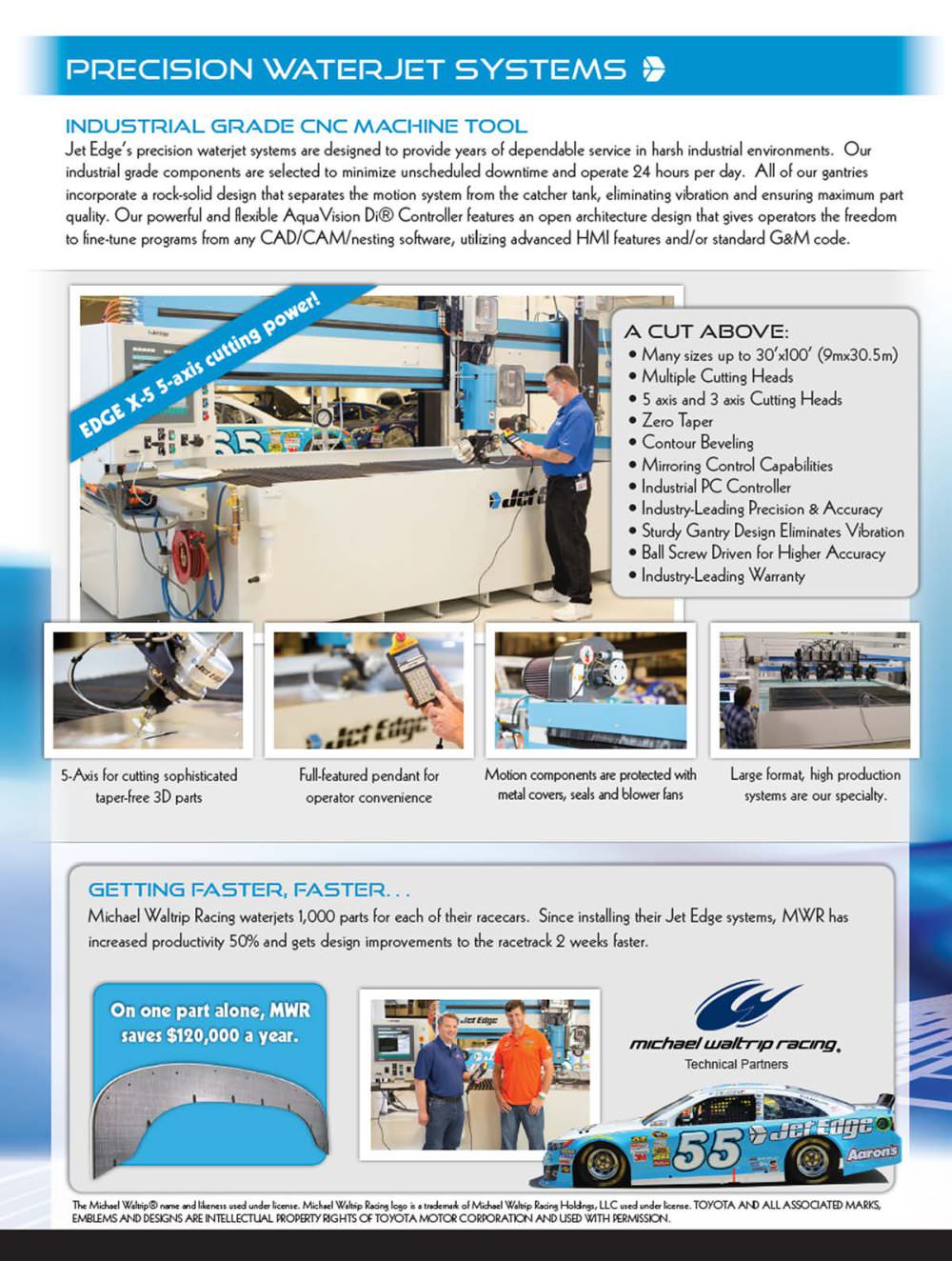

| | | PRECISION CUTTING SYSTEMS Jet Edge motion systems are manufactured to National MachineTool Building Association (NMTBA) standards.Motion system tolerance capabilities are verified through dynamic analysis using a Renishaw™ Balibar system.assuring the accurate positioning and precise repeatability necessary for producing quality parts on a consistent basis. | | |
| | | |
| | | MID RAIL GANTRY SYSTEM This system produces complex parts out of virtually any material. Designed to easily accommodate overhead loading, it comes standard with one abrasivejet cutting head; a second cutting head can be added for increased productivity. The Mid Rail Gantry Is ball-screw driven for higher accuracy. Available in multiple sizes - Seewww.jetedge.com for details. | | |
| | | |
| | | LOW RAIL GANTRY SYSTEM For applications requiring larger cutting envelopes, Jet Edge offers the Low Rail Gantry bridge, which travels on a virtually anything and can be expanded. Standard Size: up to30'x 100' | | |
| | | |
| | | AQUAVISON Dl® CONTROLLER Jet Edge's AquaVlsion Dl® Is the most advanced Industrial PC waterjet motion controller in the Industry. Its customized Visual Basic front end guides the user through the process from Job set-up to production. Single parts, mirroring, rotation, plate alignment and part arrays (optional) are right at your fingertips. | | |
| | | |
| | | REMOTE CONTROL PENDANT The full-featured, handheld remote control pendant features full motion system functionality and displays operating para meters. The pendant can operate the following controls: • Motor On/Off / I • High/Low Pressure tHmm^m B^qHtmmwm •E-Stop of All Controls Py 0MI»f M MMMMMm WAtEtUEr SYSTEMS | | |
| | | |
| | | | | | | | | | | | | |
