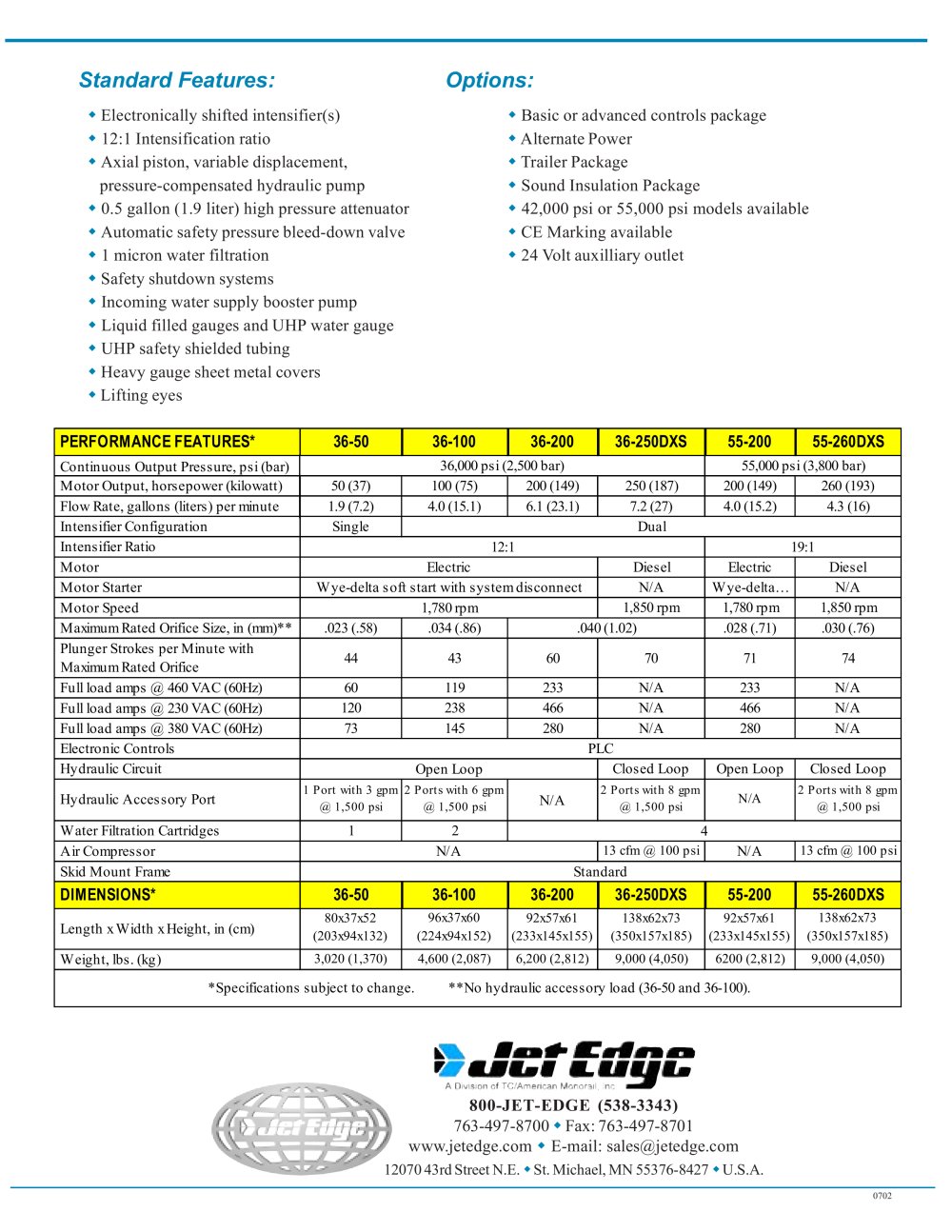

Standard Features:
♦ Electronically shitted intensifier(s)
♦ 12:1 Intensification ratio
♦ Axial piston, variable displacement, pressure-compensated hydraulic pump
♦ 0.5 gallon (1.9 liter) high pressure attenuator
♦ Automatic safety pressure bleed-down valve
♦ 1 micron water filtration
♦ Safety shutdown systems
♦ Incoming water supply booster pump
♦ Liquid filled gauges and UHP water gauge
♦ UHP safety shielded tubing
♦ Heavy gauge sheet metal covers
♦ Lifting eyes
Options:
♦ Basic or advanced controls package
♦ Alternate Power
♦ Trailer Package
♦ Sound Insulation Package
♦ 42,000 psi or 55,000 psi models available
♦ CE Marking available
♦ 24 Volt auxilliary outlet
PERFORMANCE FEATURES*
36-50
36-100
36-200
36-250DXS
55-200
55-260DXS
Continuous Output Pressure, psi (bar)
36,000 psi (2,500 bar)
55,000 psi (3,800 bar)
Motor Output, horsepower (kilowatt)
50 (37)
100 (75)
200 (149)
250 (187)
200 (149)
260 (193)
Flow Rate, gallons (liters) per minute
1.9 (7.2)
4.0 (15.1)
6.1 (23.1)
7.2 (27)
4.0 (15.2)
4.3 (16)
Intensifier Configuration
Single
Dual
Intensifier Ratio
12:1
19:1
Motor
Electric
Diesel
Electric
Diesel
Motor Starter
Wye-delta soft start with systemdisconnect
N/A
Wye-delta...
N/A
Motor Speed
1,780 rpm
1,850 rpm
1,780 rpm
1,850 rpm
Maximum Rated Orifice Size, in (mm)**
.023 (.58)
.034 (.86)
.040 (1.02)
.028 (.71)
.030 (.76)
Plunger Strokes per Minute with
44
43
60
70
71
74
Maximum Rated Orifice
Full load amps @ 460 VAC (60Hz)
60
119
233
N/A
233
N/A
Full load amps @ 230 VAC (60Hz)
120
238
466
N/A
466
N/A
Full load amps @ 380 VAC (60Hz)
73
145
280
N/A
280
N/A
Electronic Controls
PLC
Hydraulic Circuit
Open Loop
Closed Loop
Open Loop
Closed Loop
Hydraulic Accessory Port
1 Port with 3 gpm
2 Ports with 6 gpm
N/A
2 Ports with 8 gpm
N/A
2 Ports with 8 gpm
@ 1,500 psi
@ 1,500 psi
@ 1,500 psi
@ 1,500 psi
Water Filtration Cartridges
1
2
4
Air Compressor
N/A
13 cfm @ 100 psi
N/A
13 cfm @ 100 psi
Skid Mount Frame
Standard
DIMENSIONS*
36-50
36-100
36-200
36-250DXS
55-200
55-260DXS
Length x Width x Height, in (cm)
80x37x52 (203x94x132)
96x37x60 (224x94x152)
92x57x61 (233x145x155)
138x62x73 (350x157x185)
92x57x61 (233x145x155)
138x62x73 (350x157x185)
Weight, lbs. (kg)
3,020 (1,370)
4,600 (2,087)
6,200 (2,812)
9,000 (4,050)
6200 (2,812)
9,000 (4,050)
*Specifications subject to change. **No hydraulic accessory load (36-50 and 36-100).
