| | | SPRING LOADED DEVICES | | |
| | | |
| | | |
| | | • Single unit construction • No set screw to separate from plunger body • No need for "easy-out" tools • Better reliability • Steel tips are a hardened steel • Close tolerance between tip and body | | • Material: Body - Low Carbon Steel, or 303 Stainless Steel Tip - Delrin or Steel • Finish: Black Oxide on Body • Thread: 2A-UNC • Available in FixtureProTM Design Software | | |

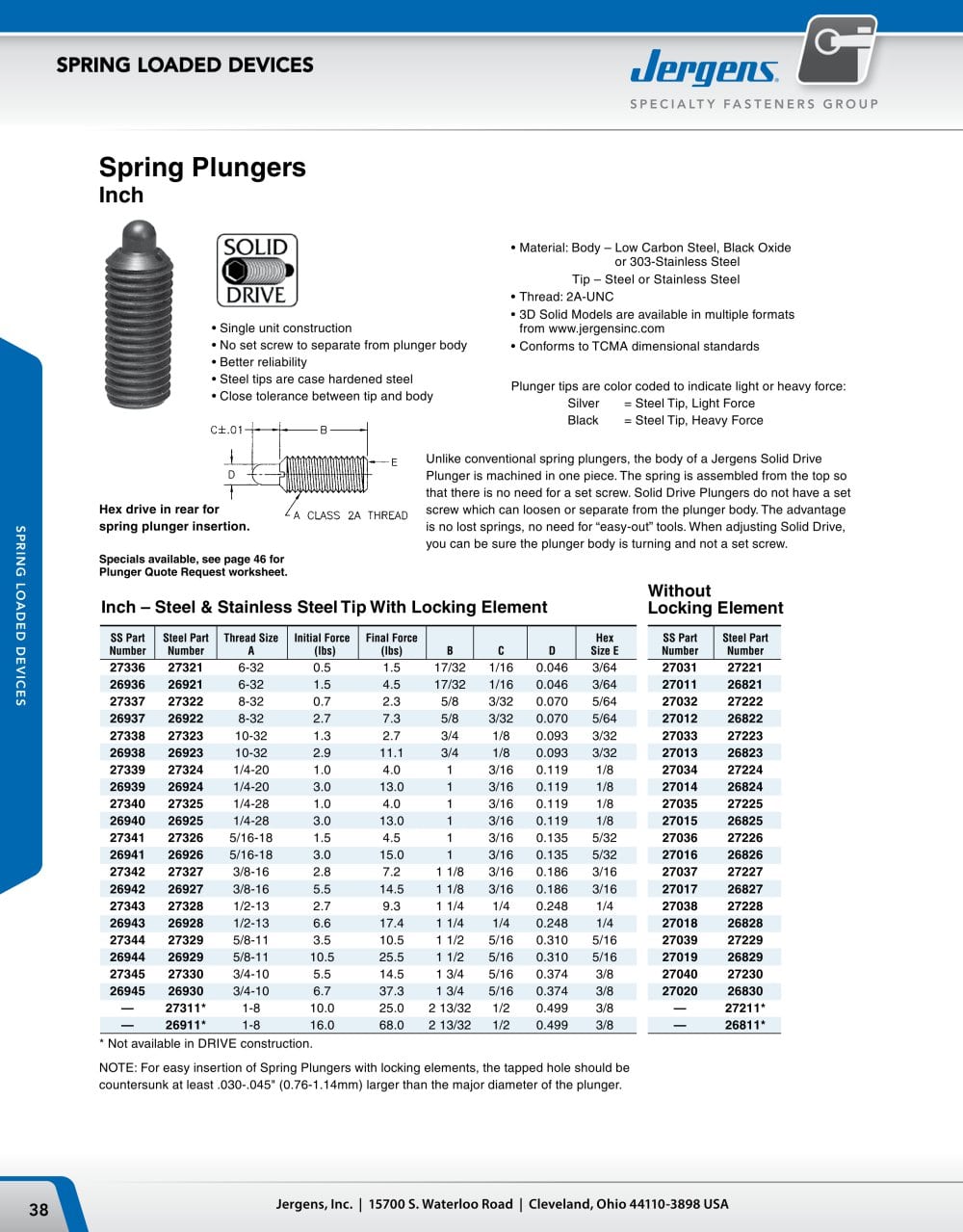

| | | Spring Plungers | | |
| | | |
| | | |
| | | Unlike conventional spring plungers, the Jergens SOLID DRIVE Plunger is one integral piece of steel: hex drive, plunger, and body. No set screw to separate from plunger body, no lost springs to retrieve, no need for "easy-out" tools. Best of all, when adjusting SOLID DRIVE, you can be sure the spring plunger is turning and not just a set screw. Without Heavy Force With Locking Element Locking Element | | |
| | | |
| | | Stainless Steel | | Dimensions | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | Thread | Part Number | Part Number | Force, Lbs. | | | | E | Part Number | | | | Size | Steel | Delrin | Stainless | Delrin | | | | | | Hex | Steel | Delrin | | | | A | Tip | Tip | Tip | Tip | Initial | Final | B | C | D | Size | Tip | Tip | | | | 6-32 | 26921 | 30521 | 26936 | 30536 | | 1.5 | 4.5 | 17/32 | 1/16 | .046 | 3/64 | 26821 | 30421 | | | | 8-32 | 26922 | 30522 | 26937 | 30537 | | 2.7 | 7.3 | 5/8 | 3/32 | .070 | 5/64 | 26822 | 30422 | | | | 10-32 | 26923 | 30523 | 26938 | 30538 | | 2.9 | 11.1 | 3/4 | 1/8 | .093 | 3/32 | 26823 | 30423 | | | | 1/4-20 | 26924 | 30524 | 26939 | 30539 | | 3.0 | 13.0 | 1 | 3/16 | .119 | 1/8 | 26824 | 30424 | | | | 1/4-28 | 26925 | 30525 | 26940 | 30540 | | 3.0 | 13.0 | 1 | 3/16 | .119 | 1/8 | 26825 | 30425 | | | | 5/16-18 | 26926 | 30526 | 26941 | 30541 | | 3.0 | 15.0 | 1 | 3/16 | .135 | 5/32 | 26826 | 30426 | | | | 3/8-16 | 26927 | 30527 | 26942 | 30542 | | 5.5 | 14.5 | 1 1/8 | 3/16 | .186 | 3/16 | 26827 | 30427 | | | | 1/2-13 | 26928 | 30528 | 26943 | 30543 | | 6.6 | 17.4 | 1 1/4 | 1/4 | .248 | 1/4 | 26828 | 30428 | | | | 5/8-11 | 26929 | 30529 | 26944 | 30544 | | 10.5 | 25.5 | 1 1/2 | 5/16 | .310 | 5/16 | 26829 | 30429 | | | | 3/4-10 | 26930 | — | 26945 | 30545 | | 6.7 | 37.3 | 1 3/4 | 5/16 | .374 | 3/8 | 26830 | — | | | | 1-8 | 26911* | — | — | — | | 16.0 | 68.0 | 2 13/32 | 1/2 | .499 | 3/8 | 26811* | — | | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | * Not available in SOLID DRIVE construction. Light Force With Locking Element | | |
| | | Without Locking Element | | |
| | | |
| | | Stainless Steel | | Dimensions | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | Thread | Part Number | Part Number | Force, Lbs. | | | | E | Part Number | | | | Size | Steel | Delrin | Stainless | Delrin | | | | | | Hex | Steel | Delrin | | | | A | Tip | Tip | Tip | Tip | Initial | Final | B | C | D | Size | Tip | Tip | | | | 6-32 | 27321 | 30921 | 27336 | 30936 | .5 | 1.5 | 17/32 | 1/16 | .046 | 3/64 | 27221 | 30821 | | | | 8-32 | 27322 | 30922 | 27337 | 30937 | .7 | 2.3 | 5/8 | 3/32 | .070 | 5/64 | 27222 | 30822 | | | | 10-32 | 27323 | 30923 | 27338 | 30938 | 1.3 | 2.7 | 3/4 | 1/8 | .093 | 3/32 | 27223 | 30823 | | | | 1/4-20 | 27324 | 30924 | 27339 | 30939 | 1.0 | 4.0 | 1 | 3/16 | .119 | 1/8 | 27224 | 30824 | | | | 1/4-28 | 27325 | 30925 | 27340 | 30940 | 1.0 | 4.0 | 1 | 3/16 | .119 | 1/8 | 27225 | 30825 | | | | 5/16-18 | 27326 | 30926 | 27341 | 30941 | 1.5 | 4.5 | 1 | 3/16 | .135 | 5/32 | 27226 | 30826 | | | | 3/8-16 | 27327 | 30927 | 27342 | 30942 | 2.8 | 7.2 | 1 1/8 | 3/16 | .186 | 3/16 | 27227 | 30827 | | | | 1/2-13 | 27328 | 30928 | 27343 | 30943 | 2.7 | 9.3 | 1 1/4 | 1/4 | .248 | 1/4 | 27228 | 30828 | | | | 5/8-11 | 27329 | 30929 | 27344 | 30944 | 3.5 | 10.5 | 1 1/2 | 5/16 | .310 | 5/16 | 27229 | 30829 | | | | 3/4-10 | 27330 | — | 27345 | 30945 | 5.5 | 14.5 | 1 3/4 | 5/16 | .374 | 3/8 | 27230 | — | | | | 1-8 | 27311* | — | — | — | 10.0 | 25.0 | 2 13/32 | 1/2 | .499 | 3/8 | 27211* | — | | | | | | | | | | | | | | | | | | | | |
| | | |
| | | All plungers conform dimensionally to TCMA Standards. * Not available in SOLID DRIVE construction. Specials available, see page 4.10 for Plunger Quote Request worksheet. | | |
| | | |
| | | Plunger tips are color coded to indicate light or heavy force: Hardened steei tip Silver = Steel Tip, Light Force Extra Long spindie | | |
| | | |
| | | Black = Steel Tip, Heavy Force White = Delrin Tip, Light Force | | Hex Drive Built Into Plunger Body | | |
| | | |
| | | |
| | | Blue = Delrin Tip, Heavy Force IMPORTANT: When inserting Solid Drive Plungers with a locking element, the tapped hole should be countersunk at least .030 to .045 larger than the major diameter of the plunger. This will make insertion of the plunger easier. | | |
| | | ■A CLASS 2A THREAD Hex drive in rear for spring plunger insertion. | | |
| | | |
| | | |
| | | 4.4 | | |
