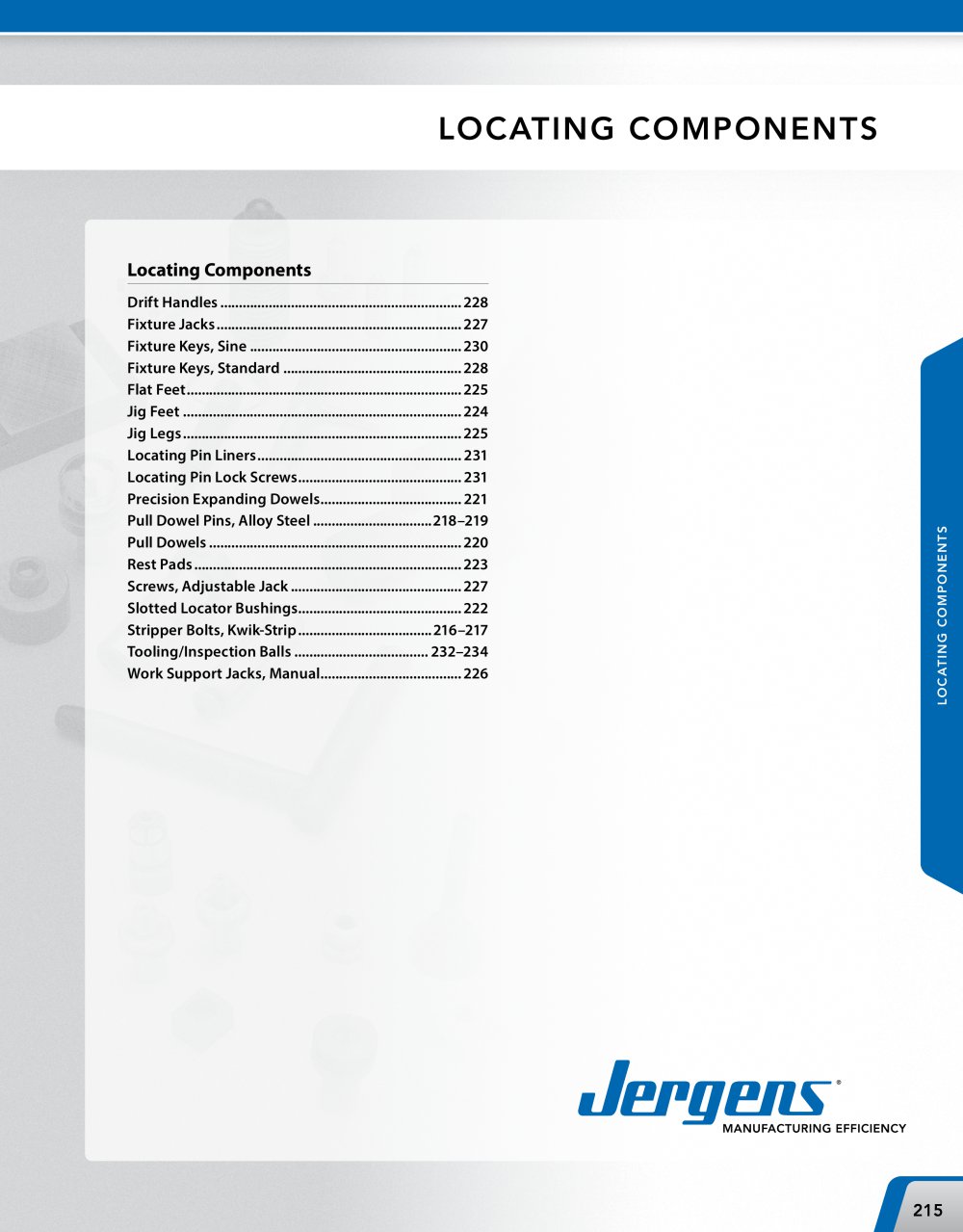

LOCATING COMPONENTS Locating Components

LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP Kwik-Strip Stripper Bolts A New Perspective on Stripper Plates Today's more complex dies require more time to service. The advantage of time saving devices such as ball and roll lock punches is minimized unless the stripper plate can be removed first. The patented Jergens Kwik-Strip Stripper Bolts provide an inexpensive, simple method of stripper plate removal. The stripper can be removed with the die still mounted in the press! Installation Step 1: Drill a through hole 1/32" larger than the nominal body diameter of the bolt to be used. Step 2:...

LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP Kwik-Strip Stripper Bolts • Material: Alloy Steel • Heat Treat: Rc 32-36 • Available in Fixture Pro Design Software Selection of Sizes Size selections should be based upon thread size. For example, if your application calls for a 1/2" stripper bolt (with a 3/8" thread) use a 5/8" Kwik-Strip bolt (with a 3/8" thread). Kwik-Strip bolts may be shortened by 1/4" and still have sufficient thread depth for the cap screw. Part Thread Wt. Number A B C D E F G Size (lbs) Phone: 877-426-2504 | Fax: +1 216-481-6193 | E-mail: [email protected] | www.jergensinc.com...

LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP Alloy Steel Pull Dowel Pins Jergens Offers 3 Styles of Precision Ground Pull Dowels Spiral Groove (Grooves Help to Relieve Trapped Air) Features, Applications & Benefits • Internally threaded hole allows removal of pull dowels with a standard screw. • Standard Round Pull Dowels are typically used in applications featuring a through hole. • Spiral Groove Pull Dowels feature a groove cut to allow trapped air to be released. • Flat Vent Pull Dowels feature a ground flat on one side to release trapped air. Flat Vent (Ground Flat Helps to Relieve Trapped...

Precision Ground Pull Dowels Spiral Groove Technical Data Material: Alloy Steel Length Tolerance: ± .010" Core Hardness: 47 - 58 Rockwell C Diameter Tolerance: ±.0001" Surface Hardness: 60 - 64 Rockwell C Recommended Hole Size: .0005" under Nom. Dia. Surface Finish: 8 Micro-Inch Specification: ASME B18.8.2 Spiral Groove Flat Vent Standard Round Phone: 877-426-2504 | Fax: +1 216-481-6193 | E-mail: [email protected] | www.jergensinc.com LOCATING COMPONENTS

LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP Pull Dowels Metric • Material: Low Carbon Steel • Heat Treat: Case Hardened • Available in Fixture Pro Design Software ® Flat ground on the side for air release in blind holes. Part Number Jergens, Inc. | 15700 S. Waterloo Road | Cleveland, Ohio 44110-389

Jepgeits. LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP Precision Expanding Dowels Material: Alloy Steel, case hardened to 50-55 Rockwell C Self-Centering and Repeatable within +/- 0.0005" (0.013mm) Top and bottom half of dowel expand seperately Patented Inch Part Number Nominal Diameter Inch Nominal Length (L) Inch LOCATING COMPONENTS Installation Instructions Step 1 Remove the top screw, insert the dowel into the locating hole of the first part, and expand the bottom half with a hex wrench. Step 2 Replace the top screw, slide the locating hole of the second part over the dowel and expand top...

LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP Slotted Locator Bushing Press Fit • Use with L Pins to align two holes without binding. • Available for 3/16" through 1" diameter pins (6mm-25mm in metric sizes). • Tool Steel, heat treated to Rc 58-62 • Supplied with Roll Pin: Locate within ±.002" of slot centerline. A Dimension Centered Within ±.0001 of C Dia. Concentric Ground Lead A Dimension Centered Within ±.0001 of C Dia. C Dia 16-Pitch Knurl Over Diamond Knurl Concentric Ground Lead Jergens, Inc. | 15700 S. Waterloo Road | Cleveland, Ohio 44110-3898 USA

Rest Pad Jergens Feature: By holding close tolerances on the “D” dimension, when replacement becomes necessary, your original tolerances are maintained within .0005 (.013) • Material: Low Carbon Steel • Finish: Black Oxide • Heat Treat: Case Hardened 75-77 R30N • Available in Fixture Pro® Design Software Rest Pads are designed to be used when you need a larger hardened wearing surface for heavy duty applications. Rest Pads can also be used as hardened work rests or as wear plates on your jigs and fixtures. Part Number Metric Part Number Rest Pad Rest Pads are designed to be used when you need...

Jig Feet Material: Low Carbon Steel Finish: Black Oxide Cap Screw included Heat Treat: Case Hardened 75-77 R30N Available in Fixture Pro® Design Software Jergens Feature: By holding close tolerances on the “B” dimension, when replacement becomes necessary, your original tolerances are maintained within .0005 (.013) Part Number LOCATING COMPONENTS Metric Jig Feet Part Number Jergens, Inc. | 15700 S. Waterloo Road | Cleveland, Ohio 44110-3898 USA

Jergens. LOCATING COMPONENTS WORKHOLDING SOLUTIONS GROUP The Jergens Jig Legs are ideal for cutting costs in simple jig plates. They assure lasting accuracy in your jig plate with a larger bearing surface at the top the the leg. The large diameter rest button provides more bearing surface for spot facing or counterboring on the bottom side. Both legs and rest buttons are hardened for long life. • Material: Low Carbon Steel • Finish: Black Oxide • Heat Treat: Case Hardened 75-77 R30N Flat Feet Material: Low Carbon Steel Heat Treat: Case Hardened 75-77 R30N Cap Screw Included Available in Fixture...

Work Support Jacks The Jergens Spring Loaded Work Jacks provide consistent support and rigidity to odd shaped workpieces. They are designed to prevent workpiece deflection under forces created during machining operations. Precision mated locking jaws grip the jackpost from both sides creating a vise-like action. • Load capacities 300-4500 lbs. • Rugged design • Quality construction • Dual jaw locking action • Rubber boot or dust cap models available Riser Optional on Part Number 25207 & 25208 LOCATING COMPONENTS 0 .69 X .32 DEEP IN FIXTURE FOR POST TRAVEL INPUT TORQUE v* LOAD CAPACITY REST BUTTON...
