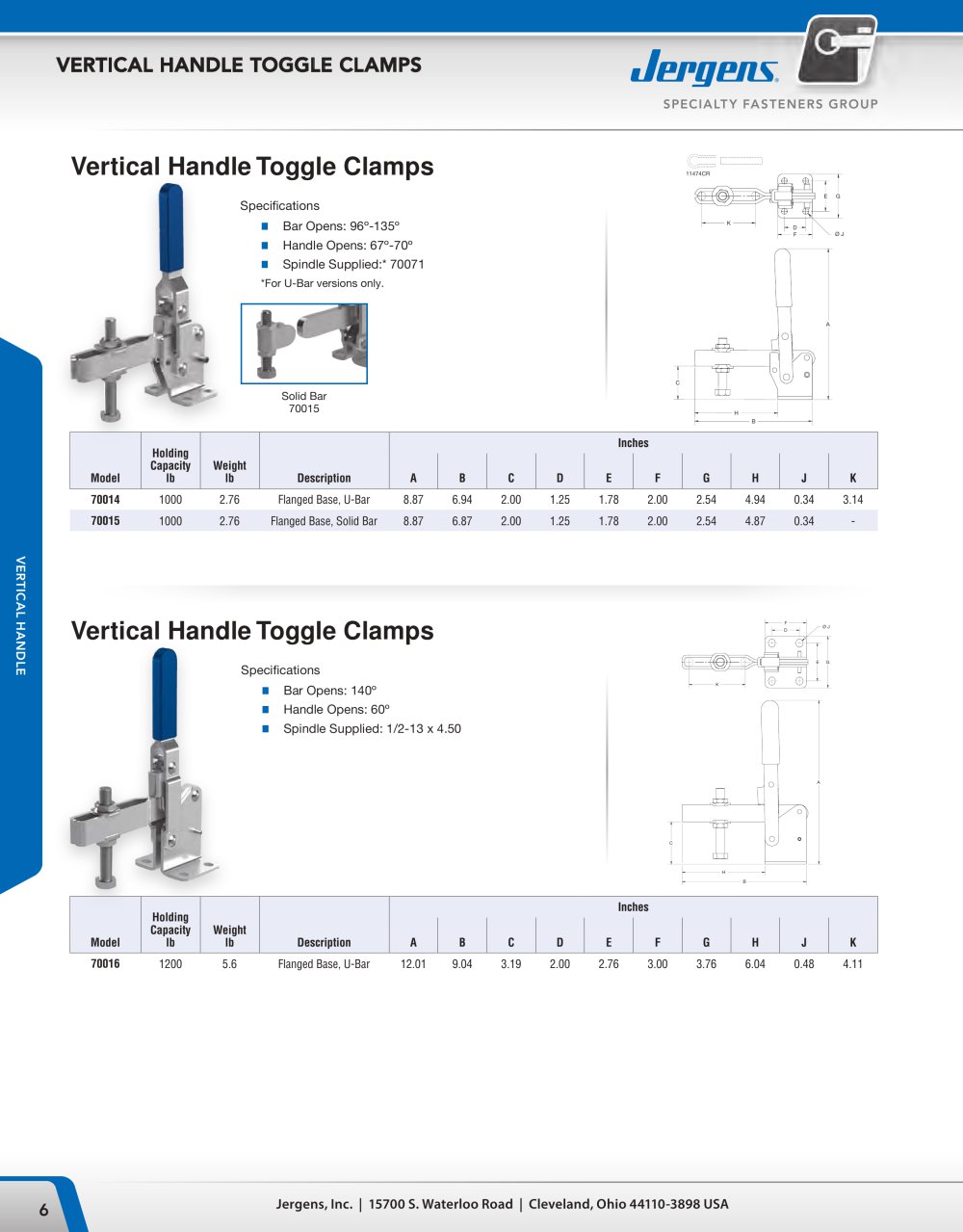

7 T O G G L E C L A M P S www.jergensinc.com 7.6 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA 70480 This is the largest capacity vertical style clamp. It’s available in solid bar or U-Bar construction and accepts all 5/8-11 diameter spindles. The solid bar is supplied with a 70940 bolt retainer. The U-Bar is supplied with 2-70941 flanged washers. Spindle assembly 70942 must be ordered separately. Each model is supplied with a blue vinyl handle. • Holding capacity: 1200 lbs. max. • Weight: 5 lbs., 2 oz. • Handle moves 70°, bar 140° • Solid Bar: 1 1/4" height, 3/8" wide • U-Bar: 1 1/4" height, 21/32" inside width • Horizontal spindle adjustment: 4" • Spindle Thread: 5/8-11 1/2" DIA. HOLES FOR 7/16" SCREWS Hold Down Vertical For accessories see pages 7.19 For interchangeability with other toggle clamps, see page 7.42 Part Handle Bar Base Number A B C D E F G H J Type Type Type 70480 12 1/8 3 1/4 9 2 2 3/4 — 1/2 1/2 5 7/8 Vertical Solid Flange 71032 13 3/8 4 9 2 — 1 1/4 1/2 — 5 7/8 Vertical Solid Straight 70490 12 1/8 3 1/4 9 2 2 3/4 — 1/2 1/2 5 7/8 Vertical U-Bar Flange 71033 13 3/8 4 9 2 — 1 1/4 1/2 — 5 7/8 Vertical Solid Straight
