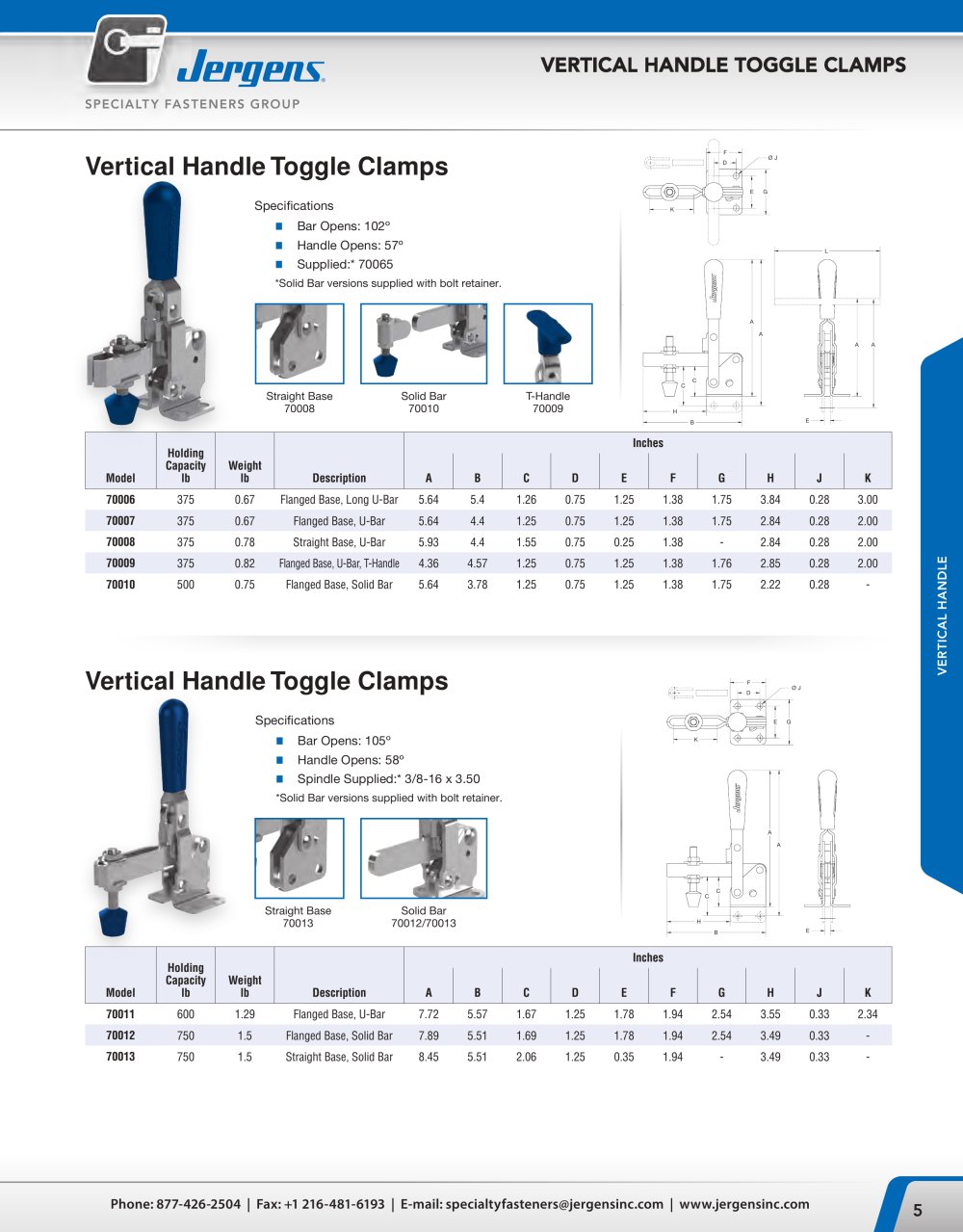

TOGGLE CLAMPS 7 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 7.5 B* A* J F C B A D G K E H Ø11/32" This heavy duty clamp is available with solid bar and U-Bar construction. It accepts all 1/2-13 diameter spindles. The solid bar model is supplied with a 70901 bolt retainer. The U-Bar model is supplied with 2-70902 flanged washers. Spindle assembly 70903 must be ordered separately for both models. • Holding capacity: 1000 lbs. max. • Weight: 2 lbs., 7 oz. • Handle moves 67°, bar 120° • Solid Bar: 7/8" height, 3/8" wide • U-Bar: 7/8" height, 17/32" inside width • Horizontal spindle adjustment: 3 1/8" • Spindle Thread: 1/2-13 70470 B B* J C F A A* G D E H 21/64" DIA. HOLES FOR 5/16" SCREWS This large capacity clamp is available in solid bar and U-Bar construction. It accepts all 3/8-16 diameter spindles. The solid bar clamp is supplied with a 70910 bolt retainer and 70915 neoprene tipped spindle assembly. The U-Bar style is supplied with 2 flanged washers and the 70915 spindle assembly. The vertical handle type is supplied with a blue vinyl handle. • Holding capacity: 750 lbs. max. • Weight: 1 lb., 5 oz. • Handle moves 58°, bar 106° • Solid Bar: 3/4" height, 5/16" wide • U-Bar: 3/4" height, 7/16" inside width • Horizontal spindle adjustment: 2 9/16" • Spindle Thread: 3/8 -16 Part Handle Bar Base Number A B C D E F G H J Type Type Type 70420 7 3/4 1 11/16 5 1/2 1 1/4 1 25/32 — 21/64 3/8 3 19/32 Vertical Solid Flange 70425 8 1/4 2 3/16 5 1/2 1 1/4 — 3/8 21/64 — 3 19/32 Vertical Solid Straight 70430 5 1/4 1 11/16 5 1/2 1 1/4 1 25/32 — 21/64 3/8 3 19/32 Tee Solid Flange 71028 6 1/8 2 3/16 5 1/2 1 1/4 — 3/8 21/64 — 3 19/32 Tee Solid Straight 70440 7 3/4 1 11/16 5 1/2 1 1/4 1 25/32 — 21/64 3/8 3 17/32 Vertical U-Bar Flange 70445 8 1/4 2 3/16 5 1/2 1 1/4 — 3/8 21/64 — 3 17/32 Vertical U-Bar Straight 70450 5 1/4 1 11/16 5 1/2 1 1/4 1 25/32 — 21/64 3/8 3 17/32 Tee U-Bar Flange 71029 6 1/8 2 3/16 5 1/2 1 1/4 — 3/8 21/64 — 3 17/32 Tee U-Bar Straight *Straight base type dimension. Note: Width of tee handle is 5". 70440 Part Handle Bar Base Number A B C D E F G H J Type Type Type 70460 9 2 7 1 1/4 1 25/32 — 3/8 3/8 5 Vertical Solid Flange 71030 9 1/2 2 1/4 7 1 1/4 — 3/8 3/8 — 5 Vertical Solid Straight 70470 9 2 7 1 1/4 1 25/32 — 3/8 3/8 5 Vertical U-Bar Flange 71031 9 1/2 2 1/4 7 1 1/4 — 3/8 3/8 — 5 Vertical U-Bar Straight Hold Down Vertical For accessories see pages 7.19 For interchangeability with other toggle clamps, see page 7.42 For accessories see pages 7.19 For interchangeability with other toggle clamps, see page 7.42
